Home > Products > Solar Cell > HIgh Efficiency 6 inch 3BB Mono Solar Cell solar power

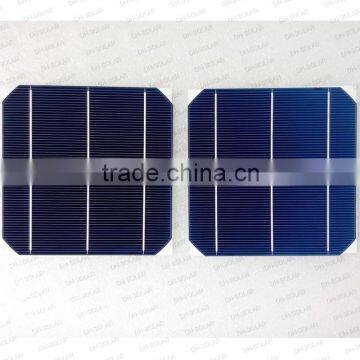

HIgh Efficiency 6 inch 3BB Mono Solar Cell solar power
- 4000000 Watt / Watts per Month
- SHENZHEN
- T/T
- 12V Portable Mini Air Pump
- DC 12V Portable Heavy Duty Plastic Shell Air Compressor with Light Quality Choice
- Electric Portable Heavy Duty Plastic Shell Air Compressor -30mm 2 Cylinder
- 12V Heavy Duty Plastic Shell Air Compressor with Light
- 12V Mini Heavy Duty Plastic Shell Air Compressor Price
- 12V Heavy Duty Car Air Compressor /Tire Inflators with light - 30mm Cylinder
Product Details
Place of Origin: | Guangdong, China | Brand Name: | DH-Solar | Model Number: | DH-S-3BB |
Material: | Monocrystalline Silicon | Size: | 156*156 | Number of Cells: | 1pcs |
Max. Power: | 4.3~4.9watt |
Product Description
Product | DH-Solar 3BB 156*156mm Monocrystalline Silicon Solar Cell |
Model Number | DH-S-3BB |
Material | Monocrystalline Silicon |
Size | 156*156mm |
Number of Cells | 1pcs |
Efficiency | 18%~20.4% |
Max. Power | 4.3~4.98watt |
Thickness | 200 μm +/-20μm |
Front | 1.0mm Bus Bars(Silver);Dark Blue Silicon Nitride AR Coating. |
Back | 2.5mm Wide Soldering Pads(Silver);Back Surface Field (Aluminium) |
Electrical Characteristics:
Efficiency Class | 1800 | 1820 | 1840 | 1860 | 1880 | 1900 | 1920 | 1940 | 1960 | 1980 | 2000 | 2020 | 2040 |
Efficiency(%) | 18 | 18.2 | 18.4 | 18.6 | 18.8 | 19 | 19.2 | 19.4 | 19.6 | 19.8 | 20 | 20.2 | 20.4 |
Pmax (w) | 4.40 | 4.45 | 4.50 | 4.54 | 4.59 | 4.64 | 4.69 | 4.74 | 4.79 | 4.84 | 4.89 | 4.93 | 4.98 |
Voc (V) | 0.628 | 0.63 | 0.632 | 0.634 | 0.636 | 0.637 | 0.639 | 0.641 | 0.643 | 0.645 | 0.647 | 0.649 | 0.651 |
Isc (A) | 9.03 | 9.06 | 9.09 | 9.12 | 9.15 | 9.18 | 9.21 | 9.24 | 9.27 | 9.30 | 9.33 | 9.36 | 9.39 |
Vmax (V) | 0.526 | 0.528 | 0.531 | 0.533 | 0.535 | 0.537 | 0.539 | 0.541 | 0.543 | 0.535 | 0.537 | 0.539 | 0.541 |
Imax (A) | 8.39 | 8.45 | 8.51 | 8.57 | 8.62 | 8.68 | 8.74 | 8.79 | 8.83 | 8.87 | 8.91 | 8.95 | 8.99 |
Voltage | -2.08 | mV/K | |||||||||||
Current | 4.51 | mA/K | |||||||||||
Current | -0.4 | %/K |
Feature:
Performance and Quality
Industry-Leading Efficiency on P-type Monocrystalline and Multicrystalline Silicon Solar cell
Robust Reliability Performance for Potential Mudule Benefit Beyond 25 years
Compatible with Present Module Manufactureing Process
PID Resistant Confirmed by All Major Customers and testing Labs
100% In-line Optical and Electrical Inspection
Q1: What is the quality of your products?
A: A grade solar cell mainly,but we also offer other quality as you need.
Q2: How long is the delivery time?
A: In 3-5 workdays after we got the payment. We will try our best to ship out on same day for payment cleared before 05:00 PM.
Q3: About replacement/exchange?
A: We accept exchange/replace item if customers received defective merchandise.
Q4: About Payment ?
A: We accept :1. L/C ; 2. T/T (Bank Transfer, Wire Transfer); 3. Western Union ; 4. Paypal (For Sample Fee & Courier cost).
You can try Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
Q5: About Shipment?
A: we accept DHL, FedEx,TNT, EMS, DHL, UPS.
