Rohs Approved 3v Magnetic Buzzer(External Drive Type)(RHOS)

KS-12055C03F16M  Magnetic Buzzer
1. Specifications:

Rated Voltage:3V

Operating Voltage:2~5v

Coil Resistance:16±4Ω

Rated current:Max 45mA

Sound Pressure level:Min.78 dB

Frequency of output Signal:2048HZ

Operating Temp:-30°C~70 °C

Storage Temp:-40°C~80 °C

Dimension:12*5.5mm

Environmental Protection Regulation:RoHS

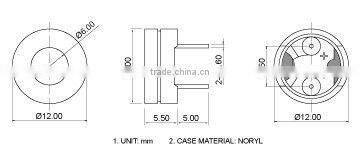

2.OUTLINE DRAWING:

3.FREQUENCY RESPONSE:

4.Our Advantage:1.good quality and competitive price;

                                2.Shipped Fast;

                                3.Industry in first three;

                                4.Professional design and precise process;

                                5.Safety harmless;

                                6.Sell fast for overseas market;

PART_3: About us: enterprise1_contens/ initpintu_/ COSSON 4.Why choice us: 1.our product will give youan edge over your competitors 2. quality is our culture,we believe that the quality is the soul of an enterprise 3. all products have to pass strict inspection before they ship out We specialize in producing Electro-acoustic components such as Buzzer (Piezoelectric buzzer /Electromagnetic buzzer / Mechanical buzzer / SMD buzzer ), Piezoelectric ceramic element ,Condenser microphone , Ultrasonic sensor , Atomiztion piece etc. Please don't not hesitate to send e-mail to me,.i am sure we will be your best partner.
