Help CenterPaper Box Cutting Machine With Laser Position
Related Products

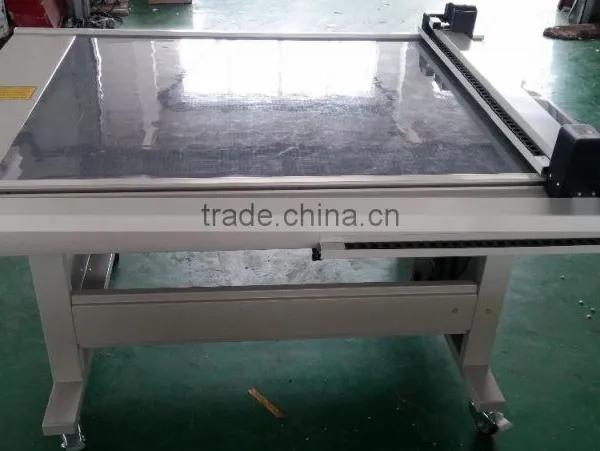

DCH30 series paper cutting machine is good used in the cutting and creasing of printing material of card paper and plastic box. The machine can accurately cut the printed material by mataching the printed mark on the material with laser light. This machine have many merit such as high accuracy, easy to operate, it is not only to help save the die cost, but also easy to adjust the design and make the sample in a short time, therefore to help customer to obtain the orders.
The main features:
Two tools, cresing pin, special knife
Cutting and creasing can be achieved at one time.
Low maintenance cost.
Easy to operate, accurately positioning
Knife tool
No. |
Photo |
name |
application |
Note |
1 |
|
Special knife |
Used to cut materials within 2mm thick cutting materials:paperboard, Kraft paper, gray board,offset board and self-adhesive paper, etc. |
|
Creasing pin
No. |
Photo |
name |
application |
Note |
1 |
|
Creasing pin |
For crease of the card paper, pvc box etc |
|
Pen
No. |
|
name |
application |
Note |
1 |
|
Pen |
Drawing |
|
Specifications
|
DCH300906 |
DCH301209 |
DCH301512 |
|
Effective cutting area
|
900*600mm |
1200*900mm |
1500*1200mm |
|
Driver
|
Step motor
|
||
|
Configuration
|
Pen, special knife, creasing tool, laser position
|
||
|
Way of fixing paper way
|
Vacuum absorbing
|
||
|
Driving material
|
Import steel belt
|
||
|
Cut materials
|
Red hard paper,plastic board,white board,kraft paper,thin PVC
|
||
|
Cutting way
|
Drawing by pen,half cutting,whole cutting
|
||
|
Cutting thickness
|
0.5-2mm |
||
|
Cutting precision
|
≤0.1mm |
||
|
Max speed
|
1000mm/s |
||
|
Working time and character
|
Continuous work, operating computer and cutting at the same time, linear high-speed transmission for data. |
||
|
Transmitting port
|
International standards: parallel port/RSC232 serial port
|
||
|
Capacity of buffer area
|
Buffer area of large capacity, it can finish high-speed transmission for data at a time
|
||
|
Instruction set
|
International standards: HP-GL or DXF format can be selected,
|
||
|
Numerical control board
|
LTD, all-English operating menu
|
||
|
Main structure
|
Cutting platform,head,driving system,control cabinet,control micro computer,frame,vacuum pump
|
||
|
Voltage
|
AC 220V±10% 50Hz |
||
|
Fuse standard
|
5A |
||
|
Occupy dimension(L*W*H)
|
1335*1065*1080mm |
1635*1365*1080mm |
1935*1665*1080mm |
|
Note
|
Other size can be customized.
|
||
