PP Foam PE Foam EVA Foam Flatbed Cutting Machine Carton Sample Cutting Plotter Die Cutter

PP Foam PE Foam EVA Foam Flatbed Cutting Machine Carton Sample Cutting Plotter Die Cutter thumbnail-1
PP Foam PE Foam EVA Foam Flatbed Cutting Machine Carton Sample Cutting Plotter Die Cutter thumbnail-2
PP Foam PE Foam EVA Foam Flatbed Cutting Machine Carton Sample Cutting Plotter Die Cutter thumbnail-3
PP Foam PE Foam EVA Foam Flatbed Cutting Machine Carton Sample Cutting Plotter Die Cutter thumbnail-4
PP Foam PE Foam EVA Foam Flatbed Cutting Machine Carton Sample Cutting Plotter Die Cutter thumbnail-5
PP Foam PE Foam EVA Foam Flatbed Cutting Machine Carton Sample Cutting Plotter Die Cutter thumbnail-6
PP Foam PE Foam EVA Foam Flatbed Cutting Machine Carton Sample Cutting Plotter Die Cutter photo-1
PP Foam PE Foam EVA Foam Flatbed Cutting Machine Carton Sample Cutting Plotter Die Cutter photo-2
PP Foam PE Foam EVA Foam Flatbed Cutting Machine Carton Sample Cutting Plotter Die Cutter photo-3
PP Foam PE Foam EVA Foam Flatbed Cutting Machine Carton Sample Cutting Plotter Die Cutter photo-4
PP Foam PE Foam EVA Foam Flatbed Cutting Machine Carton Sample Cutting Plotter Die Cutter photo-5
PP Foam PE Foam EVA Foam Flatbed Cutting Machine Carton Sample Cutting Plotter Die Cutter photo-6
US$ 20,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Processing Type:
Paper Folding Machine
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Shanghai Xinao Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Processing Type Paper Folding Machine
Place of Origin Shanghai, China
Brand Name AOKE
Weight 2000kg
Certification CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

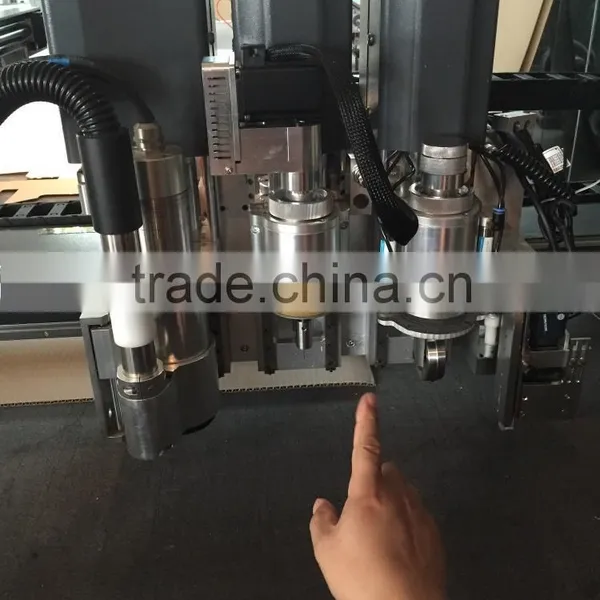

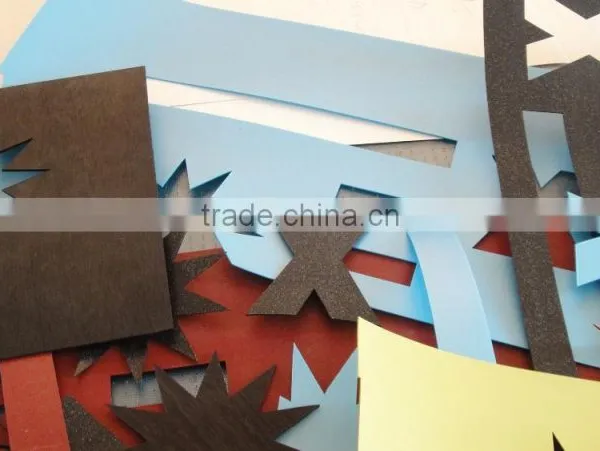

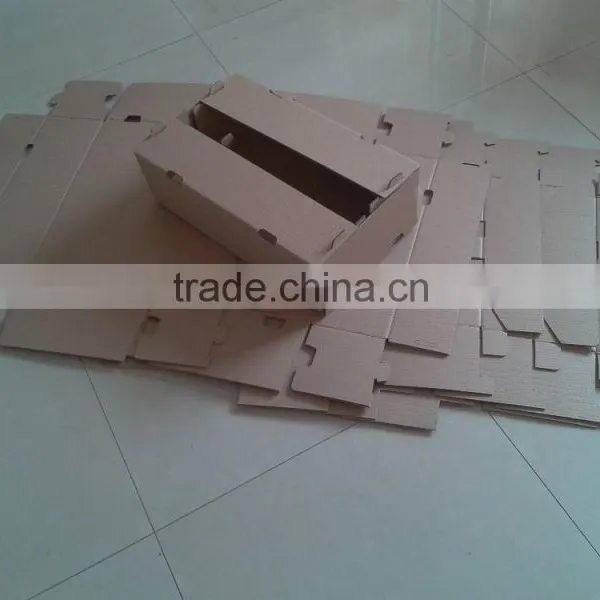

DCZ7X series high speed flatbed digital cutter is AOKE new generation cutting system for the industry such as carton packaging, printing, signage&graphics, display&stands, etc. It has two independent module design to assure the good expansibility and convenient tools exchange. It is equipped with versatile tools like: High frequency oscillating knife, creasing tool, V cutting tool, foam cutting tool, drawing tool, drag knife. This flatbed cutter can cut materials up to 60mm. And it is capable with a variety of materials cutting such as corrugated board, card board, grey board, honeycomb board, K board, PP foam board, PE foam, EVA foam, plastic sheet, and other printed sheet.

1. New steel frame machine body to improve the working stability and prolong the machine life;

2. Auto tool height adjusting system to make the tool hight adjustment convenient;

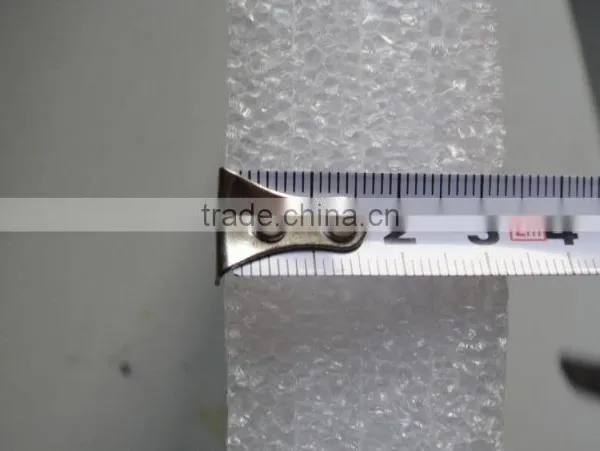

3. Media cutting depth up to 60mm, boarden the cutting range of materials;

4. New vacuum zone design, improve sucking energy to assure the cutting performance



No.

name

application

Note

1

16 degree knife

Used to cut materials between 10mm to 15mm thick.

Cutting materials: corrugated board, paper board, Kraft paper, gray board, offset board, honeycomb board, KT board and compound materials, etc.



2

20 degree knife

Used to cut materials between 7mm to 10mm thick.

Cutting materials: corrugated board, paper board, Kraft paper, gray board, offset board, honeycomb board, KT board and compound materials, etc.



3

26 degree knife

Used to cut materials between 5mm to 7mm thick.

Cutting materials: corrugated board, paper board, Kraft paper, gray board, offset board, honeycomb board, KT board and compound materials, etc.



4

Drag knife

Used to cut materials within 3mm thick.

Cutting materials:paperboard, Kraft paper, gray board,offset board, self-adhesive paper and compound materials, E corrugated etc.



5



Special knife

Used to cut materials within 2mm thick

cutting materials:paperboard, Kraft paper, gray board,offset board and self-adhesive paper etc.



*6

Double edge knife

.

Mainly for the thick and hard materials such as grey board, PP etc.

Option

*7

30 degree knife

Mainly for the hard material such as carbon gasket, gasket, ruber, grey board, PP etc.

Option



     Creasing wheel



No.

name

application

Note

1

3mm creasing wheel

creasing thickness: between 3mm and 5mm corrugated board.



2

5mm creasing wheel

creasing thickness: between 5mm and 7mm corrugated board.



3

7mm

7mm creasing wheel

creasing thickness: between 7mm and 10mm corrugated board.



4

2mm creasing wheel



creasing thickness: within 2mm,such as corrugated board, paperboard, Kraft paper, gray board,offset board, composite materials etc.



*5

PVC creasing wheel



Used to crease PVC, plastic box, PVC corrugated etc.

Option





Pen

No.

name

application

Note

1

Pen

Drawing









Model

DCZ762516

DCZ761713

DCZ761310

Effective cutting area

2500*1600mm

1700*1300mm

1300*1000mm

Configuration

Oscillating knife,pen,creasing wheel,drag knife

Max aped

1400mm/s

Smallest cutting diameter

6mm

Maximum cutting thickness

15mm

Control line and driver

Servo

Precision

≤0.1mm

Vacuum

5.5kw

Data form

AI,PDF,DXF,HPGL

Voltage

220v±10%50Hz

Data port

PCI port

Data Transmission speed

10MB/s

Input cushion area

32MB

Occupy dimension(L*W*H)



3500*3100*1400mm

2700*2800*1400mm

2300*2500*1400mm

Note



Other size can be customized.
