Home > Products > Other series products > White low output 10KA/20KA spd for led price trade assurance

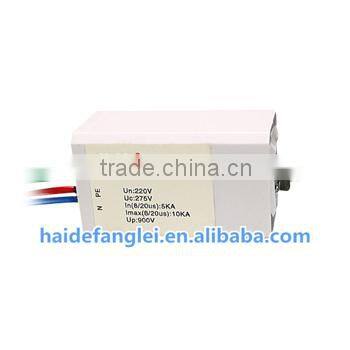

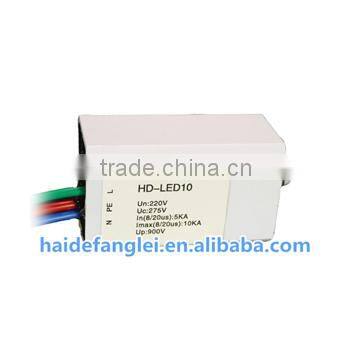

White low output 10KA/20KA spd for led price trade assurance
- 10000 Set / Sets per Month
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Haide | Model Number: | HD-LED20/B |
Product Description
White low output 10KA/20KA spd for led price trade assurance
This product is used for the LED lamps and lanterns of lightning surge pulse and protection.
Have two kinds of series and parallel type structure, series timely diagnose working state of the lightning protection, change in time so as not to cause secondary lightning lamps and lanterns.For big surge of absorptive capacity, low residual output, compact appearance, optional waterproof structure, easy installation.
Model | HD-LED10/B | HD-LED20/B |
Nominal working voltage Un | 220VAC | 277VAC |
Maximum continuous working voltage Uc | 275VAC | 320VAC |
Maximum discharging current Imax(8/20us) | 10KA | 20KA |
Nominal discharge current In(8/20us) | 5KA | 10KA |
Voltage protection level Up | 900V | 1.2KV |
Drain current IA | <5uA | |
External dimension | 40x35x80mm/ø35(40)x80 | |
Response time Ta | ≤25ns | |
Operating temperature range Tup | -40°c to +80°c | |
Waterproof function | optional | |
Protection grade | IP33/IP65 | |
Sheathing material | aluminium alloy | |
Interface type | leads/termination | |

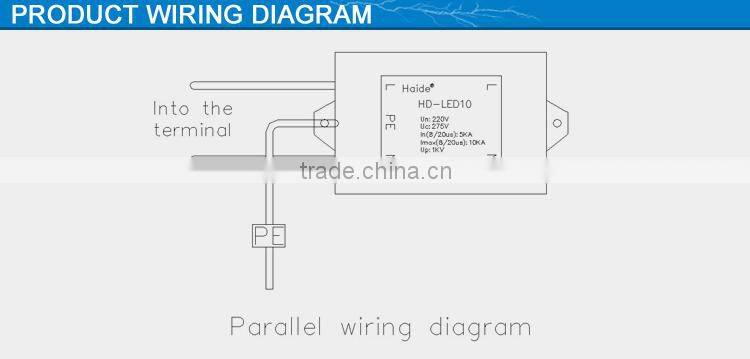

Mode of connection | parallel connection |
1.. ISO9001&CE certificate &Test Report
2..Any inquiries will be replied within 24 hours.
3..Professional manufacture. Welcome to our website:http://gzhaidefanglei.cn.china.cn/
4..High quality, fashion designs, reasonable &competitive price, fast lead time.
5..OEM available.
6..After-Sale Service:
- Provide technical advice and maintenance knowledge and installation guide.
- Customers response time for one working time.
- All the products provide five year commitment to service.
- All the products are accompanied by China Pacific property insurance co;ltd.
7..Fast delivery
Sample order in stock, and 7-15 days for full production.
8..Terms of payment
You can pay for the order via: T/T, Western Union, PayPal &Money Gram.
9..Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Port. You also can choose your own shipping forwarder.
10.Quality warranty
one year replacement, five years warranty. protection device
spd for led price trade assurance
