Heavy Load Electrical Transfer Car Electric Powered Remote Controller

Heavy Load Electrical Transfer Car Electric Powered Remote Controller photo-1
US$ 5,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Yugong
Model Number:
KPD, KPX, KPJ
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Yugong
Model Number KPD, KPX, KPJ
After-sales Service Provided Engineers available to service machinery overseas



 Transfer Car



Heavy Load Electrical Transfer Car Electric Powered Remote Controller

 The transfer machine is designed for transporting heavy cargoes or equipment from one bay to another in factory. It can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.

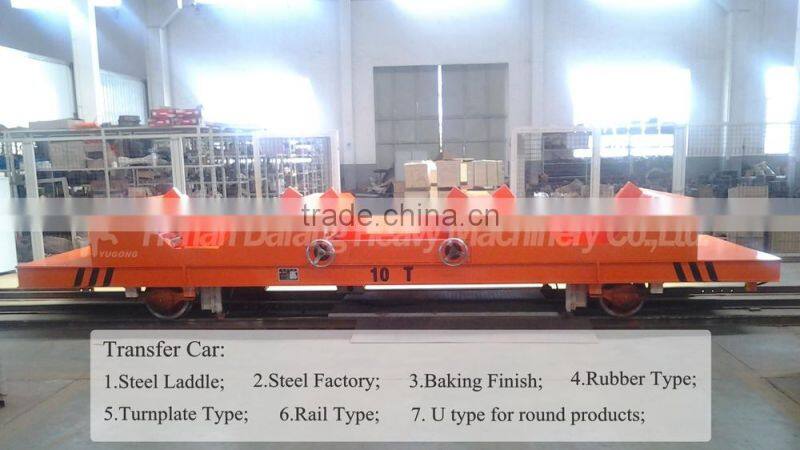

 Normal Classification of Transfer Car



Heavy Load Electrical Transfer Car Electric Powered Remote ControllerHeavy Load Electrical Transfer Car Electric Powered Remote ControllerHeavy Load Electrical Transfer Car Electric Powered Remote ControllerHeavy Load Electrical Transfer Car Electric Powered Remote Controller
Heavy Load Electrical Transfer Car Electric Powered Remote Controller

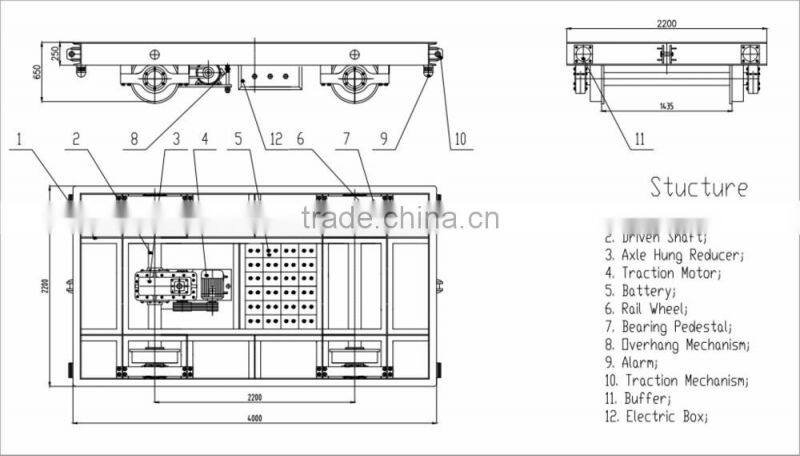

 Drawing of Transfer Car



Heavy Load Electrical Transfer Car Electric Powered Remote Controller

Considerable Design

 • Extra inverter to choose any speed;                                          • Rail self disconnect electricity device;

 • Met people stop device, limit location device;                        • Equip with wireless remote control;

 • Special device suitable for explosive environment;                • Optional brush DC motor, brushless DC motor;

 • Special device suitable for high temperature situation;          •  Table size according to client's Requirement;

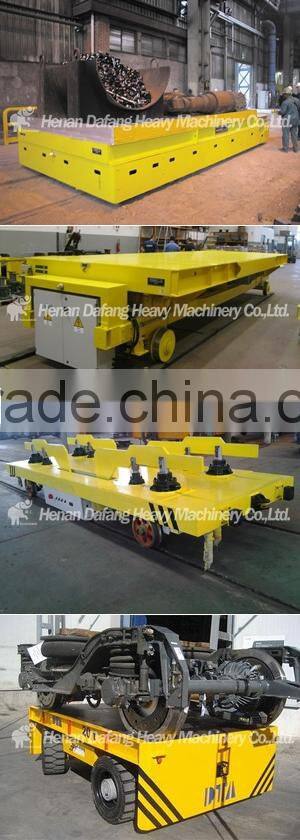

 Usage of Transfer Car



Heavy Load Electrical Transfer Car Electric Powered Remote Controller

   • Steel Laddle Transfer Car

Ladle transfer cart is specially designed to transfer the high-temperature ladle. This kind of cart has strict requirements on safety and anti-high temperature, so the mat

-erial, driving system and electrical parts of the cart should be specially designed.

Both the start and stop of the cart should be slowly to prevent the molten steel and slag running out of the ladle. The heat insulating material is used in the cart to resist the high temperature. Usually two motors are prepared, when one is damaged by the ladle’s high temperature, the other can be used tocontinue the work.

• Baking Finish Transfer Car

Paint the electric flate vehicle operation to paint roo, and then the two car,  tractor (the power car) open paint room, avoid the impact of high temperature on the mot -or, electric appliance.

• Turn Plate Transfer Car
Turnplate rail transfer cart is a kind of transfer cart which can run on the 90 degree

turning railway. Working principle: when the transfer cart runs on the turnplate, tur

-n the turnplate automatically or with manpower to connect the railway on the turn

-plate with the 90 degree turning railway, and then the transfer cart will run on the 90 degree turning railway.

This turnplate rail transfer cart is suitable  to be used on the annular railway and crossing railway for the equipment’s producing line. The turnplate system has the features of stable driving,  high accuracy of rail connection
and can be totally automatically operated.



 Inquiry Tips

• Lift Cpacity(t):                                            • Table Size(m):

• Tranverse What?                                        • Size of material:

• Rail Gauge:                                                • Travel Length:

• Travel Speed:                                            • Control Method:

• Power Methods: By Cable? By Cable Drum? By Battery? By Rails?

 Heavy Load Electrical Transfer Car Electric Powered Remote Controller



 Service



Heavy Load Electrical Transfer Car Electric Powered Remote Controller

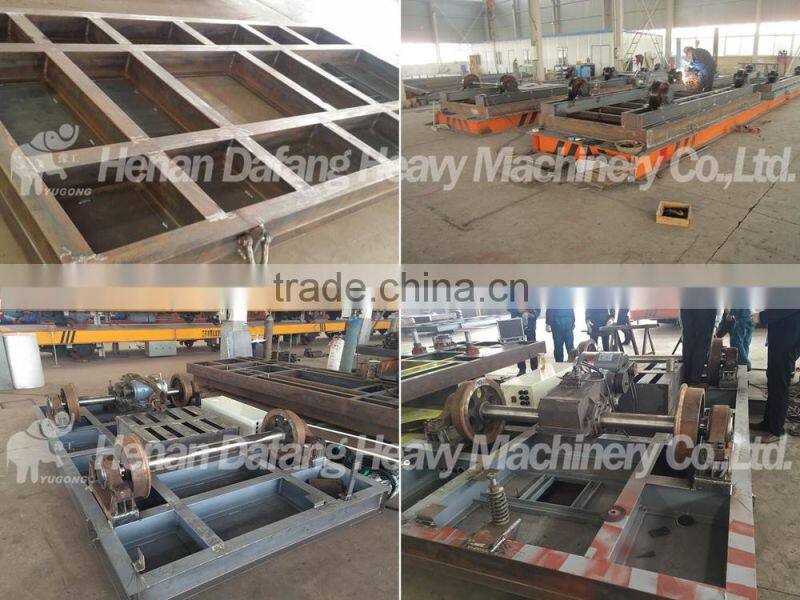

 Production Workshop



 Heavy Load Electrical Transfer Car Electric Powered Remote Controller



 FAQ

 Heavy Load Electrical Transfer Car Electric Powered Remote Controller
