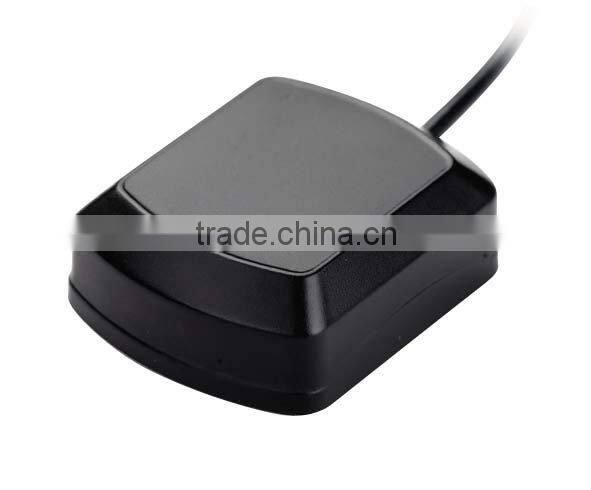

Manufactory GPS Satallite Iridium XM Antenna

Name: Manufactory GPS Satallite Iridium XM Antenna
Brand: g-antetech
SKU: 130180321
Availability: InStock

Guangzhou G-Antetech Telecom Antenna Factory

US$ 5 - 20 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

g-antetech

Model Number:

GA-Iridium-01

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name g-antetech

Model Number GA-Iridium-01

Specifications

Iridium antenna
1.Patch antenna chip:35x35x2mm
2. Frequency range:1602-1626MHZ
3. V. S. W. R 1.5:1,
4. RG174 cable

Iridium antenna

Item			Specifications
Receiver Antenna	Dielectric Antenna	Frequency Range	1602~1626MHz

		Polarization	RHCP
		Gain	2dBic(Zenith)
		V.S.W.R	<1.5
		Impendance	50Ω
		Axial Ratio	3dB(max)
	LNA	Gain	26±1dB
		Noise Figure	<1.3
		V.S.W.R	<2.0
		Supply Voltage	3~5V DC
		Current Consumption	18~20mA
Transmitter Antenna (Dielectric Antenna)		Frequency Range	1621.35~1626.5MHz
		Band Width	5.15MHz
		Polarization	RHCP
		Gain	2dBic(Zenith)
		V.S.W.R	<1.5
		Impendance	50Ω
		Axial Ratio	3dB(max)

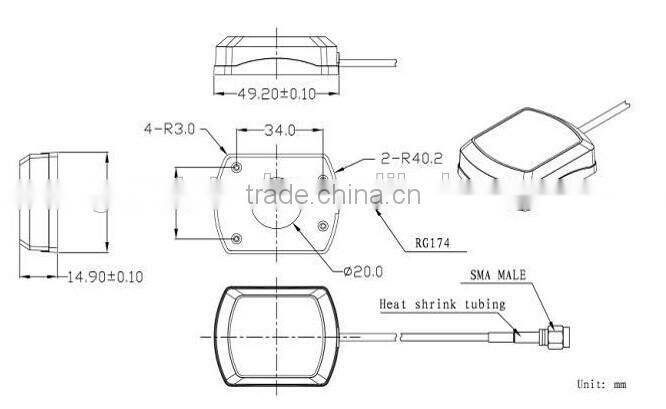

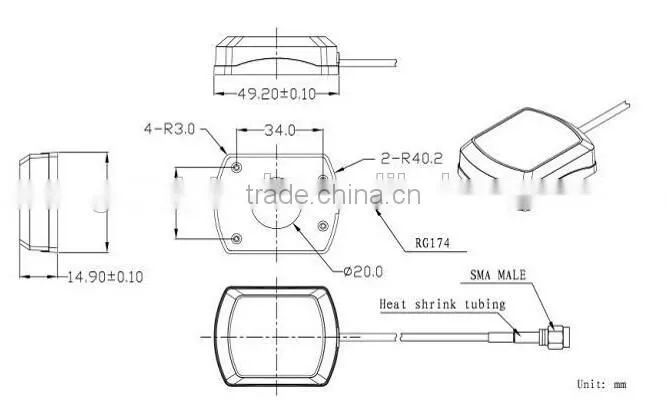

Mechanical		Cable	RG174 or others
		Connector	SMA/MCX/FAKRA or others
		Radome Material	ABS
		Mounting Method	Magnet/Adhesive
Environmental		Operating Temperature	-40'C~+85'C
		Relative Humidity	Up to 95%
		Ingress Protection	IP65~IP67
		Vibration	10 to 55Hz with 1.5mm amplitude 2hours
		Environmentally Friendly	ROHS Compliant
