Home > Products > GSM Antenna > Free Sample High Gain GSM Omni Directional Antenna

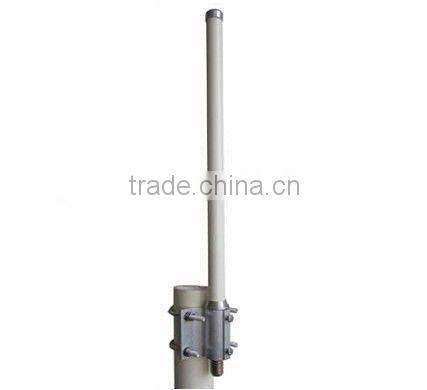

Free Sample High Gain GSM Omni Directional Antenna
US$ 5 - 10
/ Piece
1 Piece(Min. Order)
- Guangzhou
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Model Number | TQJ-824/896-6D |
Product Description
Specifications
1.GSM omni directional antenna, 2.frequency: 824~896MHZ 3.gain 6dBi 4.Horizontal Bear width 360'5. Maximum Power 100W, N-Female
Product Name | 824-896GHz fiberglass antenna |
Description | TQJ-824/896-6D: The fiberglass antenna is designed for wireless access system. Which through optimization design and careful debugging with follow qualities: good standing wave performance,high gain,broad band,big F/B ratio,strong structure,own the good ability of antihunting,waterproof and anticorrosion; Small size,easy installation,the directional diagram will be unacted whether installate on iron tower or roof. |
Electric Specification | |
Model NO | TQJ-824/896-6D |
Frequency Range-MHz | 824~896 |
Bandwidth(MHz) | 70 |
Gain-dBi | 6 |
Horizontal Bear width° | 360 |
Vertical Bear width ° | 18 |
VSWR | ≤1.5 |
Input Impedance -Ω | 50 |
Polarization | Vertical |
Maximum Power -W | 100 |
Connector | N-female |
Mechanical Specifications | |

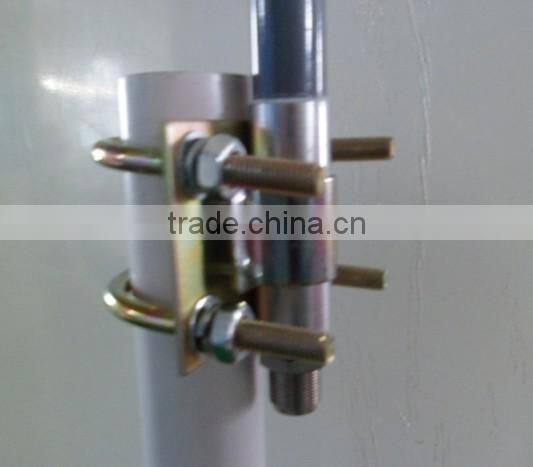

Rod diameter (MM) | Φ35-50 |
Weight-kg | 0.4 |
