3T~320T Single Girder Gantry Crane

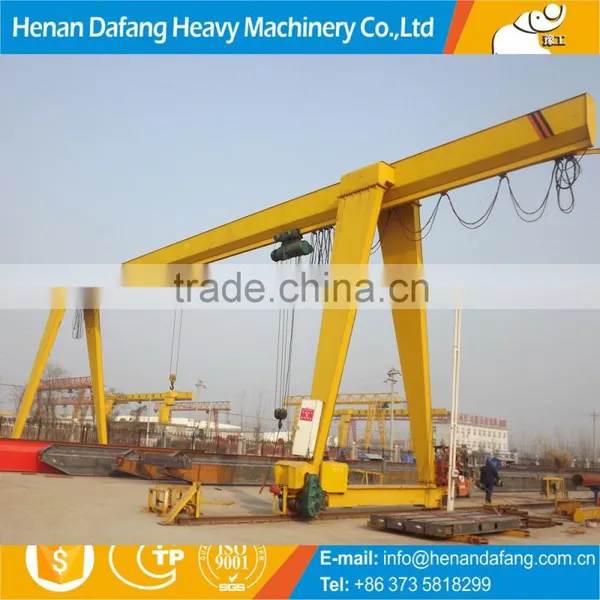

MH Type Single Girder Gantry Crane

 1. Used together with CD MD model electric hoist. Lifting capacity is 5 to 20 ton.  Span is 12 to 30 meters and  working temperature is -20°C to + 40°C.

 2. Light dead weight and strong lifting weight. Widely used at open or room ground and warehouses, yards  etc.  Ground controlling and room controlling.

  Feature

    1. Crane material:Q235,Q345B/Q345D

    2. Strong box type, no-welding joint strong box type, by machine hand, strong and beautiful.

    3. Wheelsare vacuum casting by ourselves, intermediate frequency quenching.

    4.  Wheels,wirerope,drum,gears,coupling are manufactured by our CNC machines.

   5. Nanjing special or Nanjing Brand motor,top quality in China.

   6. Eletrical equipments:Siemens or Schneider brand.

   7. Control method:Cabin control,wireless remote control or pendant control,you can choose two of them (According to your demand to design the gantry crane.)

  L Type Single Girder  Gantry Crane

    1. Track traveling mid-light type crane,

    2. Loading capacity is from 5 to 32T, the span is from 12 to 30m, and the working temperature within -25 to 40°C.

    3. Compact in frame, light in weight, steady in performance and facilitated in operation.

    4. Consists of the bridge structure, the traveling mechanism, the cart and the electric equipment.

 1. Because gantry cranes ride on the ground rather than on overhead runways, they don't require a runway structure.

 2. It is a medium and light size crane which travels in track.

 3. Its proper lifting weight is 2 to 16 tons, and proper span is 5 to 35 meters.

 4. Depending on the environment and application, gantry cranes can sometimes provide the same material handling capabilities as a comparable bridge crane system, but with a significant cost savings.

 5. Simple and compact structure.

 6. Light weight.

 7. Steady performance.

 8. Easy maintenance.

 9. Less wastage.

  1. The best light crane.

  2. Used both in multi-wind area and workshop for inside and outside.

  3. Composed of metal structure, cart operating mechanism, electric device and trolley (electric hoist).

  4. The surface of facing wind is very small. because of its steel-pip leg, and is characterized in the light dead weight and strong hoisting capacity.

  5. Ground-controlling and remote-controlling.

1.Capacity: ____t(max lifting load)

2.Span length: ___m(Rail center to rail center), you can specify this from your workshop.Any cantilever?

3.Lifting height: ___m(Hook center to ground).

4.Any cantilever? Both side or one side?How long is it?

4.Traveling distance:___m. Do you need us quote you rails?How long is it?

5.Power supply:  380V/50HZ/3ph is ok?

6.Working condition:which material to lift? temperature?

7.Any other special requirement on speed: Single speed/dual speed?

8.Could you kindly send us your plant drawing or some pictures? It’s better for us to provide you with the most suitable solution to your case.

   Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.

• Whether there is professional technician assist our installation?

   Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in aadvance. So that we can arrange technicians.

 • Can you help us arrange the shipment?

    Yep. We have professional and independent Logistics & Document Department. They will be resbonsible for arranging the logistics. Just conmmunicate with our sales about the destination port.

•  If I need the crane very urgent, what should I do?

   Please let us know this before making order, then we can try our best shorten our production period, and prioritize your crane's production.

•  Whether you can offer the matched spare parts?

   Yep, as crane manufacturer, we offer all the related spare parts, such as motor, hoists, drums, wheels, grabs, hooks, rails, travel beams, enclosed bus bar etc.

•  How can you ensure the quality?

   Before delivery, every products will be made test, and we will send you the quality certification. You are also warmly welcomed to come to our factory to make inspection.

•  Can I visit your factory?

   Of course, you can come to make visit any time. Just let us know in advance, so that we can arrange people pick you up.
