Affordable Price Mobile Gantry Crane For Sale, Container Gantry Crane

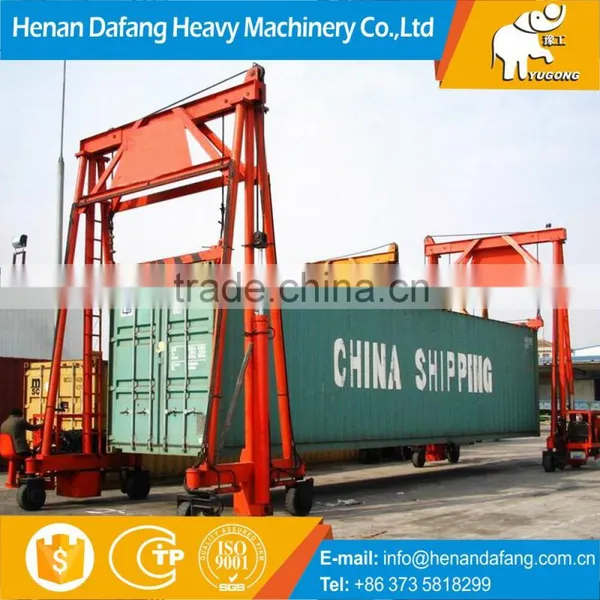

Rubber- tyred container gantry crane

Product Specifications

LJ35/40-23

Low-duty LJ 40-23

Lifting Capacity(Under the sling)

35,40

40

Working Class

A7, A8

A6, A7

Span(m)

23.47

23.47

Lifting Height(m)

12.2~17.8

16.5

Number of tier of containers/Through the number of plies

3/4~5/6

5/6

Specifications of Container

20',40',45'

20',40',45'

Spreader Slewing Angle

±5°

±5°

Lifting Speed

13/26,23/52

12/18,18/28

Crab Traveling Speed

50,70

28

Trolley Traveling Speed

Full load 90, no-load 130

Full load 20, no-load 40

Maximum Wheel Load

310

310

Power

150,230

110,150

Power Source

Electric driven, diesel driven, electric wood double driven

Name:

Rail type container gantry crane

Feature:

1. Low lifting speed and high hoist speed.

2. According to the bridge span and extending from     the outer ends to ensure the trolley speed.

3. To meet the higher requirements, electric drive         control system using thyristor DC or AC variable     speed drive control system.

• The spreader is capable of plane of  ±5°, an anti-swing system in both directions is installed, high precision spotting for handing.
• Speciall rotating trolley can be equipped according to the requirement of cutomers to implement the level rotating of the spreader within the range of 200 degree.
• Romote monitoring and trouble diagnosing system can be installed according to the requirement of customers.
• Safety and reliability, energy saving and environment friendly, easy maintenance.
• PLC control, AC frequency speed control, steady and reliable operation.
• Adequate installation of safety, communication and illumination syste

Name: Rubber-tyred Container Gantry Crane

Advantage:

1.  High flexibility.

2.  Angle shift.

Disadvantage:

1. High  Maintenance costs.

Name: Rail Type Container Gantry Crane

Advantage:

1.  For fixing the place.

2.  Sturdy and durable.

3.   Less maintenance costs.

Disadvantage:

1.   Poor mobility.
