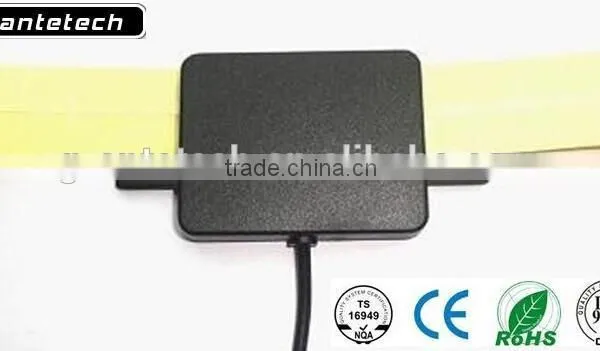

Help CenterCompetitive DAB Active Antenna
US$ 3 - 6
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Model Number:
GA-DAB-703
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Model Number
GA-DAB-703
Specifications
1.DAB Active antenna with the frequency 174~237MHz/1452~1492MHz 2.Gain BIII:10+-2dB L-Band:2dBi,3.Connector MCX/SMA/FAKRA etc
DAB Active antennas
Item |
Specifications |
|
Antenna&Amplifier |
Frequency Range |
174~237MHz/1452~1492MHz |
Wave Band |
DAB BⅢ/L-Band |
|
Polarization |
Linear |
|
Impendance |
50Ω |
|
PCB Dimension |
75.2*35.2*1.2mm |
|
Gain |
BⅢ:10±2dB L-Band:2dBi |
|
V.S.W.R |
<2.0 |
|
Supply Voltage |
12V DC |
|
Current Consumption |
40mA |
|

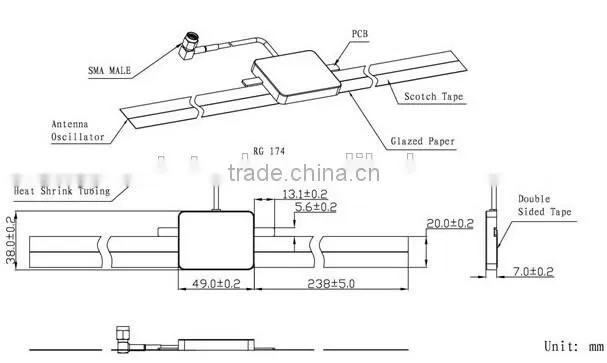

Mechanical |
Cable |
RG174 |
PCB |
FR4 |
|
Connector |
MCX/SMA/FAKRA or others |
|
Mounting Method |
Adhesive |
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
Relative Humidity |
Up to 75% |
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
Environmentally Friendly |
ROHS Compliant |
|
