1. INTRODUCTION
BMWR-3 series wheelchair ramp is developed on the basis of BMWR-2 series wheelchair ramp for van and minivan.
The ramp platform consists of three aluminum honeycombs panels, light and non-skid. You may easily fold or unfold it due to its hinged-joint construction and gas springs. Its load capacity reaches 350kg.
It will take your little van space and bring you great convenience.
2.ADVANTAGES
- Full manual operation
- Non-skid and light aluminum honeycomb platform
- Easy operation with gas springs at the two sides of ramp
- Two supports under the second ramp to keep stable.
- Setscrew at ramp bottom (refer to Figure below) to vertically keep the retracted ramp, avoiding the auto-unfold danger
3. SPECIFICATIONS
Model | BMWR-301 | BMWR-302 | BMWR-303 | BMWR-304 |
Platform Net Width(A*B) | 2240×810 | 2700×810 | 3300×810 | 3900×810 |
Overall width (C) | 880 mm | 880 mm | 880 mm | 880 mm |
Folded Height (D) | 850 mm | 1050 mm | 1250 mm | 1450 mm |
Overall Length (E) | 265 mm | 265 mm | 265 mm | 265 mm |
Own weight | 40 Kg | 45 Kg | 50 Kg | 55 Kg |
Loading Capacity | 350 Kg | |||
Installation | side or rear door of vehicle | |||
Application | van, minivan, truck and so on | |||

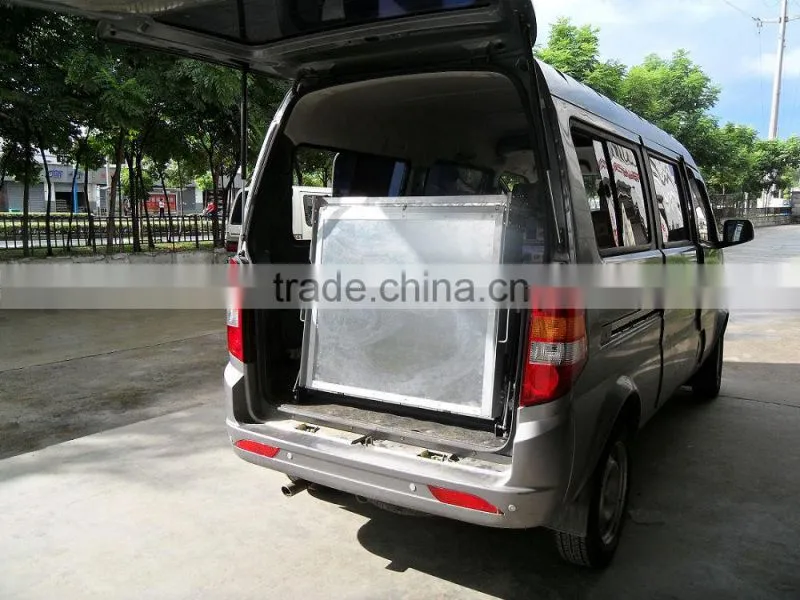

1) The retracted ramp is locked by two buckles at the two sides of the ramp.
To unfold the ramp, you shall unlock the two buckles first.
Please refer to Figure 1 and Figure 2.

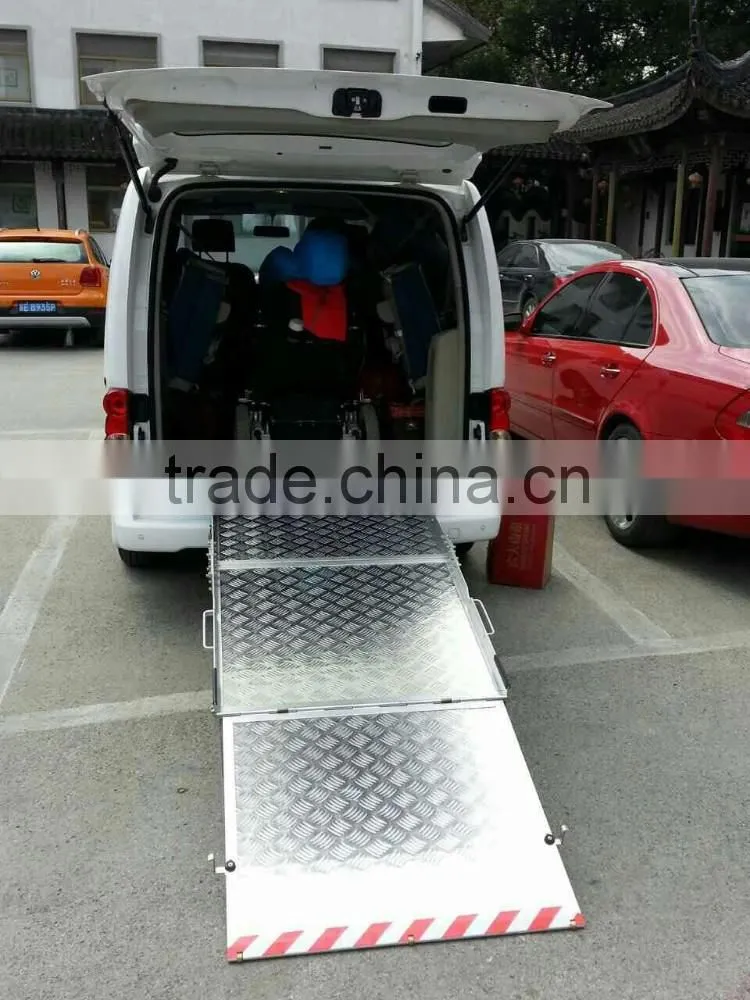

2) After the buckles unlocked, hold the handrail (refer to Figure 3) and pull the ramp forward. Then slop is finished to help wheelchairs get into/out of vehicle.
3) After the wheelchair gets into/out of vehicle, fold the ramp and lock the two buckles.
