A. Introduction
This BMWR-2 series manual wheelchair ramp is developed on the basis of FMWR folding
wheelchair ramp, which can be used for van and minivan.
This ramp consists of two honeycombs penal which are hinged joint to fold and unfold. One of
the advantages of this ramp is that the operation is completely manual, which is simple, easy, and
safety. This is the best choice for the vehicle which floor is a little high and installation space is
limited.
The ramp is mainly made from aluminum profile and honeycombs penal. We apply
honeycombs penal with figure, which has the advantages of anti-skidding, light weight, high-load
capability and so on.
There are air springs at the sides of ramp, which can make the operation easy, and avoid ramp
unfolding by itself when emergency brake

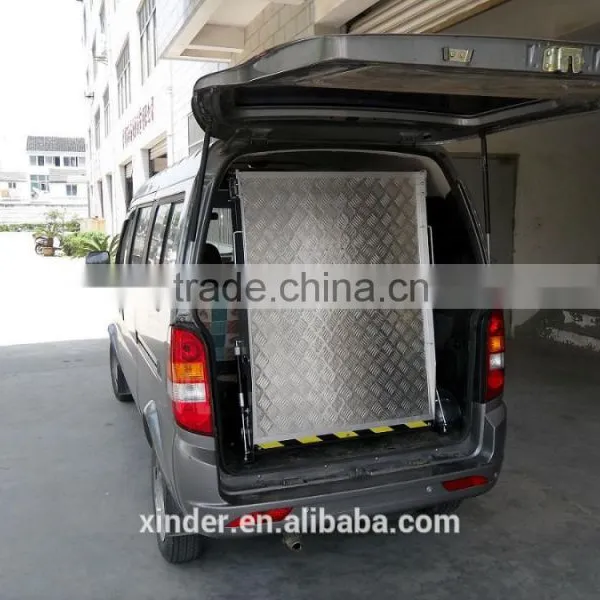

Because of the compact design, this ramp can be used for mini-vehicle such as wagon,
light-van, van, and minivan and so on.
B. Technical Specification
Model |
Platform Net Size (A×B) |
Overall Width (C) |
Overall Height (D) |
Overall Length (E) |
Loading Capacity |
Own Weight |
BMWR-201 |
1910*810mm |
880mm |
1050mm |
265mm |
350 Kgs |
40 Kgs |
BMWR-202 |
2310*810mm |
880mm |
1250mm |
265mm |
350 Kgs |
40 Kgs |
Model |
Drive Mode |
Platform Net Size (L*W)) |
Installation Position |
BMWR-201 |
Manual |
1910 × 810 mm |
Installed at the side or rear door of vehicle, such as van, minivan, truck and so on. |
BMWR-202 |
Manual |
2310 × 810 mm |
C. OPERATION

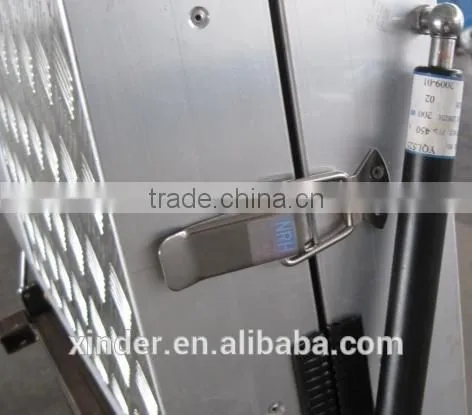

a. This ramp is locked by two buckles which are at the two sides of ramp. When needed, the
operator should unlock the two buckles first.

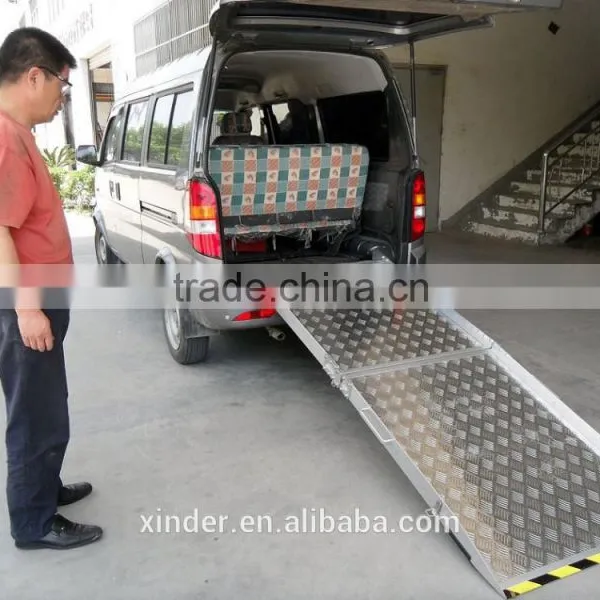

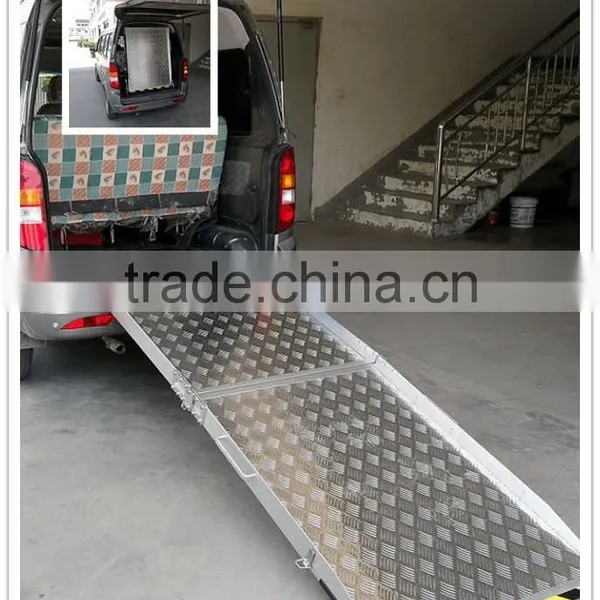

b. After the buckles are unlocked, hold the handrail and pull the ramp forward, so
that the two pieces of ramps will form a slop which can help wheelchair get into/out of vehicle.
c. After the wheelchair get into/out of vehicle, fold the two pieces of ramps, and then lock the two
buckles. This is the end of the operation
