BEWR Electric Wheelchair Ramp for Van Loading 350kg

Name: BEWR Electric Wheelchair Ramp for Van Loading 350kg
Brand: XINDER
SKU: 130176923
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

XINDER

Model Number:

BEWR-1

Changzhou Xinder-Tech Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name XINDER

Model Number BEWR-1

1. Introduction

This BEWR-1 electric wheelchair ramp consists of two high-strength aluminium alloy which are hinged joint to fold and unfold. It can be used for van and minivan.
This ramp is operated by remote control, it is fully electric. Loading capacity can be 350KG. Meanwhile, the platform is anti-skip.

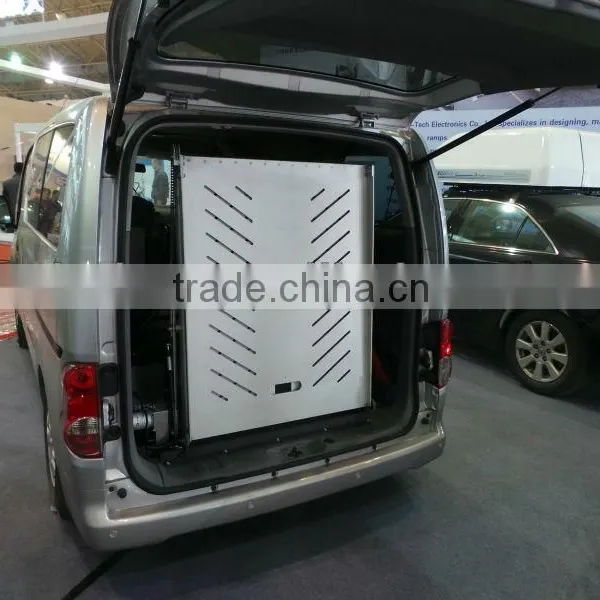

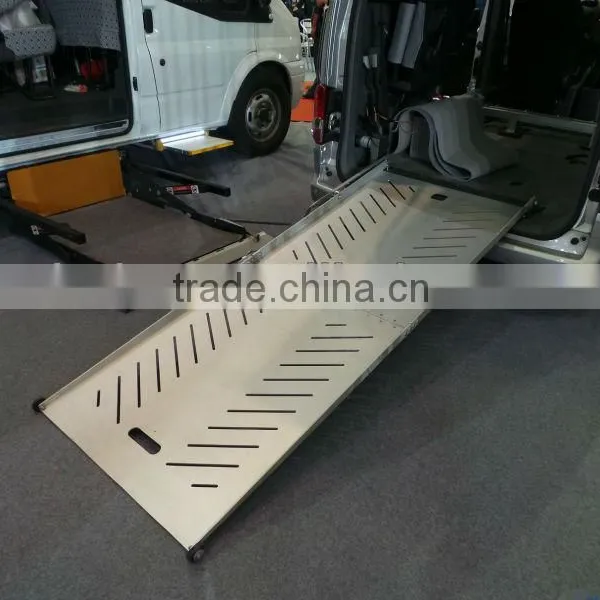

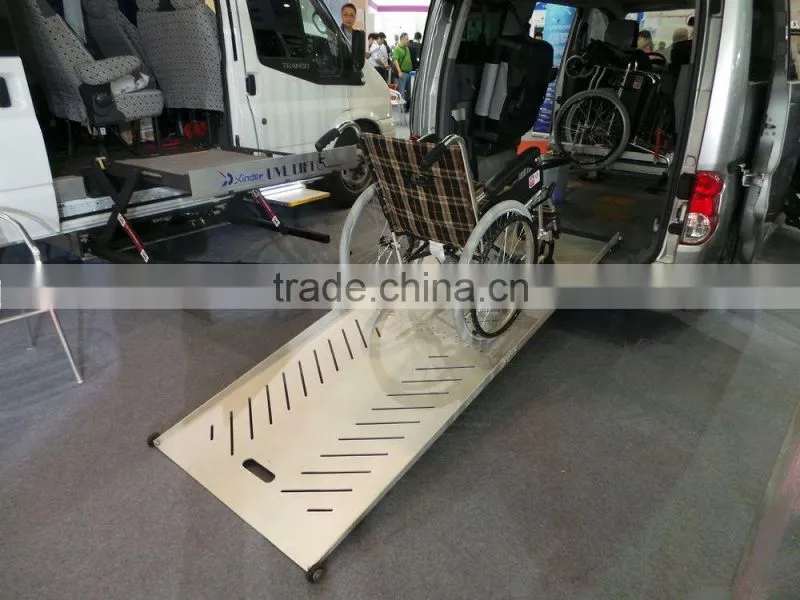

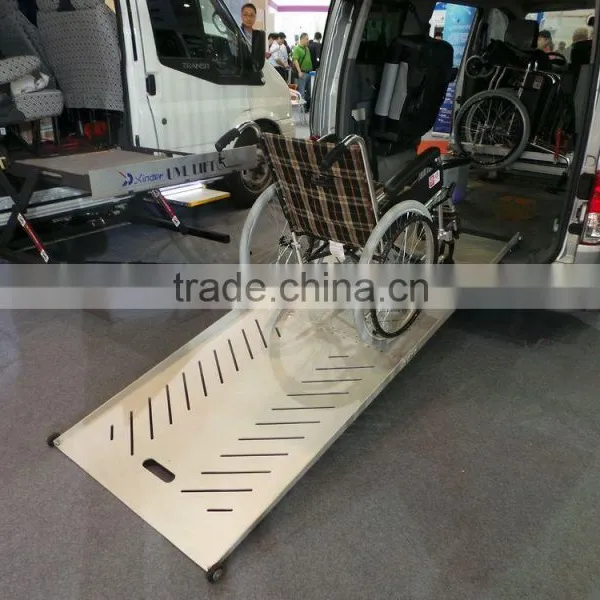

This ramp is installed at the rear door, when need it, use remote control to unfold the platform, there will be a slop to help wheelchair get in/out of vehicle.
When this ramp is unfolded, first it will reduce the floor height to reduce the slop angle. So wheelchair can get in/out of vehicle easier.

Model	Drive Mode	Platform Size( mm)	overall width	Height after stow	volt	Loading Capacity	Installation
BEWR-1	Electric	2060*803	1085 mm	1156mm	12-24V	350 KG	at rear door

2. ADVANTAGES

Easy installation: this ramp will be fully assembled before delivery. After receive this ramp, first read the user manual. Make holes on vehicle according to the user manual, and then mount it.
High loading capacity: Material of platform is high-strengthaluminium alloy, which is strong, light and anti-skip.
Wide application: when unfold the platform, this equipment will first reduce vehicle floor height, so it can be widely used for van and minivan
Small installation requirements: floor height should be less than 500mm, and size of rear door should be over 1050*1200mm (W*H).

3. DIMENSIONS

Model	Platform Size	Overall Width when stowed	Overall height when stowed	Overall length when stowed	Loading Capacity
BEWR-1	2060*803mm	1085 mm	1156 mm	251 mm	350kg

4. SPERCIFICATIONS

model: BEWR-1
loading capacity: 350 kg
own weight: 45kg
test: 100000 times
installation: at the rear door of vehicle

5. Function

Safety: main material is high-strength aluminium alloy, loading capacity can be 350KG.
Installation: installed at rear door, after unfolded, there will be a slop which can help wheelchair get in/out of vehicle.
Adjustment:We can make ramp size according to customer’s requirements.
Operation: When need this ramp, first stop vehicle. Use remote control to operate this equipment.Press “DOWN” to unfold platform;Press “UP” to fold platform.
Safety function:
The main material of platform is high-strength aluminium alloy , which is anti-skidding
There is warning sticker at the edge of ramp
Installation: It is installed at the rear door of van, minivan or car. After this ramp unfolded, there is slop between vehicle floor and ground, which make wheelchair get into vehicle easily.
Adjustment: This series wheelchair ramp has several sizes for choice. Customer should inform us the size needed or the size of vehicle door, we will provide the suitable wheelchair ramp.
