2015 Hot Sale 50t Quayside Container Gantry Crane

2015 Hot Sale 50t Quayside Container Gantry Crane thumbnail-1
2015 Hot Sale 50t Quayside Container Gantry Crane photo-1
US$ 800,000 - 1,500,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Widely
Rated Loading Capacity:
500t
Contact Supplier Request Quote Chat Now
Henan Dafang Heavy Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin or Shanghai China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Widely
Rated Loading Capacity 500t
Max. Lifting Load 500t
Max. Lifting Height 30m
Span 18~35m
Place of Origin Henan, China
Brand Name YUGONG
Model Number MG
Certification ISO
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

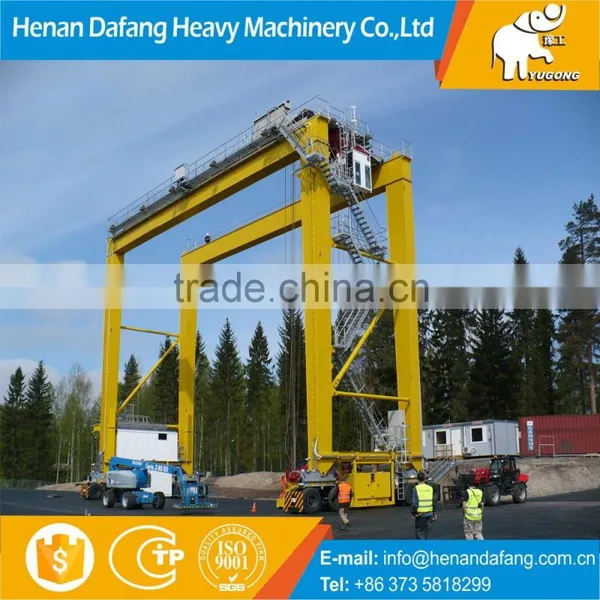

 Product Description Of Rubber-tyred  Container Gantry Crane

Rubber- tyred container gantry crane

  • Rubber-tyred gantry crane is called field bridge.
  • Supported on the 4, 8 or 16 large tubeless tires.
  • Round numbers are based on site-round pressure requirements and design.
  • Carts travel mechanism are four-wheel or two-wheel drive.
  • Prevent collisions between each other cranes and gantry crane, with manual correction system and carts corners         fenders.
  • When lifting is too large, usually increasing the number of wheels to reduce wheel pressure.
  Technical Parameters Of  Rubber-tyred Cantainer Gantry Crane

Product Specifications

LJ35/40-23

Low-duty LJ 40-23

Lifting Capacity(Under the sling)

35,40

40

Working Class

A7, A8

A6, A7

Span(m)

23.47

23.47

Lifting Height(m)

12.2~17.8

16.5

Number of tier of containers/Through the number of plies

3/4~5/6

5/6

Specifications of Container

20',40',45'

20',40',45'

Spreader Slewing Angle

±5°

±5°

Lifting Speed

13/26,23/52

12/18,18/28

Crab Traveling Speed

50,70

28

Trolley Traveling Speed

Full load 90, no-load 130

Full load 20, no-load 40

Maximum Wheel Load

310

310

Power

150,230

110,150

Power Source

Electric driven, diesel driven, electric wood double driven
 Our other type Of  Rail Type Container Gantry Crane

Name:

Rail type container gantry crane

Feature:

1. Low lifting speed and high hoist speed.

2. According to the bridge span and extending from     the outer ends to ensure the trolley speed.

3. To meet the higher requirements, electric drive         control system using thyristor DC or AC variable     speed drive control system.
  • The spreader is capable of plane of  ±5°, an anti-swing system in both directions is installed, high precision spotting for handing.
  • Speciall rotating trolley can be equipped according to the requirement of cutomers to implement the level rotating of the spreader within the range of 200 degree.
  • Romote monitoring and trouble diagnosing system can be installed according to the requirement of customers.
  • Safety and reliability, energy saving and environment friendly, easy maintenance.
  • PLC control, AC frequency speed control, steady and reliable operation.
  • Adequate installation of safety, communication and illumination syste



Product Specification



GJ30.5-L



GJ35-L



GJ40-L



Working Class





A6,A7,A8



Lifting Capacity Under Spreader



t



30.5



35



40

Span(L)



m

25~80

Efficient Outreach(L1)

0~17.5



Stack Layers/Passing Layer



Layer



3/4~5/6

Container Specification



20' 40'

20' 40'45'

Spreader Rotating Angle



±5°



Hoisting Height(h)



m



12.2~18





Speed

Hoisting

m/min

10~50

Gantry Traveling

30~100

Trolley Traveling

50~120



Max.Wheel Load



KN



~350



Installed Capacity



KW



300



260~800



270~850





Power Supply System





380V/6000V/10KV



 Picture Show Of Rail Type Container Gantry Crane
2015 Hot sale 50t Quayside container gantry crane
2015 Hot sale 50t Quayside container gantry crane
 Comparison Of The Two Types  Of  Container Gantry Crane

Name: Rubber-tyred Container Gantry Crane

Advantage:

1.  High flexibility.

2.  Angle shift.

Disadvantage:

1. High  Maintenance costs.



Name: Rail Type Container Gantry Crane

Advantage:

1.  For fixing the place.

2.  Sturdy and durable.

3.   Less maintenance costs.

Disadvantage:

1.   Poor mobility.
 Sling For Lifting Loads Of  Container Gantry Crane
2015 Hot sale 50t Quayside container gantry crane 2015 Hot sale 50t Quayside container gantry crane
 Parts  Introduction Of Rubber Tyred Container Gantry Crane
2015 Hot sale 50t Quayside container gantry crane
 Packaging & Shipping  Of Container Gantry Crane
2015 Hot sale 50t Quayside container gantry crane
 Company Profile Description Of Container Gantry Crane
2015 Hot sale 50t Quayside container gantry crane
 After Sale Service Description Of Container Gantry Crane
2015 Hot sale 50t Quayside container gantry crane
1.12 months warranty.
2. Exclusive engineer support at any time.
3. Providing free quick- wear part.
4. We can provide free training end-users.
5. Low charge for continue maintenance          when warranty is expired.
