Product Details
| Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Jisheng |
| Model Number: | HJX series | Voltage: | 380V | Rated Power: | upon actual model |
| Dimension(L*W*H): | upon actual model | Weight: | upon actual model | Certification: | ISO9001,CE |
| Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
china factory supply Automatic stainless steel/alunimum Coil Cut To Length line
General Introduction of Cut to Length Line:
This steel coil cut to length line can do uncoiling, straightening, gauging, cross-cutting to length and stacking work. It is mainly composed of un-coiler, straightener, gauge, shearer, conveyor,stacker, hydraulic system, pneumatic system and electrical system, etc. The line can be widely used in cold or hot rolled carbon steel, tinplate,stainless steel and other kinds of metal materials with surface coating. The cut to length line is controlled by PLC system. The information of length, shearing numbers and speed can be input to the PLC systems via HMI(Human Machine Interface) touch screen. When the needed shearing quantity is reached the line can stop automatically. The line speed can be adjusted, It has a gauge with high precision, and whole line can work automatically and operate easily, smooth plates can be made.
Main Technical Parameters:
model | SCL-0.8 | SCL-2 | SCL-3 | SCL-4 | SCL-6 |
plate thickness(mm) | 0.15-0.8 | 0.3-2.0 | 0.3-3.0 | 0.8-4.0 | 1.5-6.0 |
coil width(mm) | 500-1850 | 500-1850 | 500-1850 | 500-2000 | 500-2000 |
stacking height(mm) | 500-3000 | 500-4000 | 500-4000 | 500-6000 | 500-6000 |
shearing precision(mm) | <±0.2 | <±0.3 | <±0.3 | <±0.3 | <±0.5 |
diagonal precision(mm) | <±0.5 | <±0.5 | <±0.5 | <±1.0 | <±1.0 |
leveling precision(mm) | <1 | <1 | <1 | <1 | <1 |
working speed(m/min) | 120 | 120 | 110 | 80 | 60 |
coil weight(T) | 10/15/20 | 10/15/20 | 15/20/30 | 20/35 | 20/35 |
slitting precision(mm/m) | <±0.1 | <±0.1 | <±0.1 | <±0.2 | <±0.2 |
Applicable materials:
cold-rolled steel,electrolytic galvanized steel,hot dip galvanized steel,color-coated steel,stainless steel,aluminum,copper,etc.
Main Parts:
1. coil car |
2. decoiler |
3. peeler entry table |
4. Mandrel Decoiler |
5. Side Guide |
6. Straightener |
7. Measuring table |
8. Hydraulic Shears |
9. Conveyor |
10. Pneumatic Stacker |
11. Unloading table |
12. Hydraulic and Pneumatic System |
13. pneumatic system |
14. Electric System |

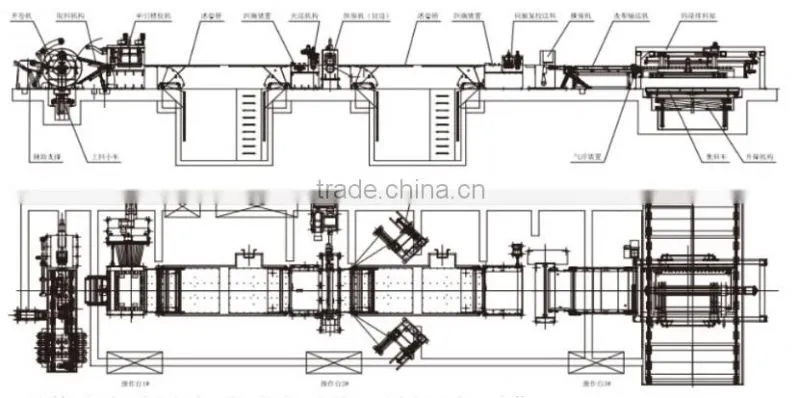

Layout Drawing:
Working Videos:

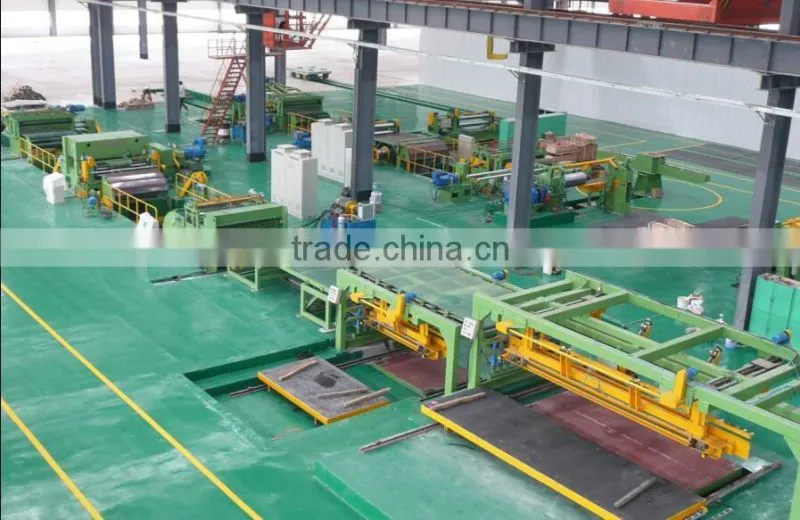

Steel coil cut to length line:
/watch?v=tuBvJV_K3Yg
/watch?v=D0z2REqOglw

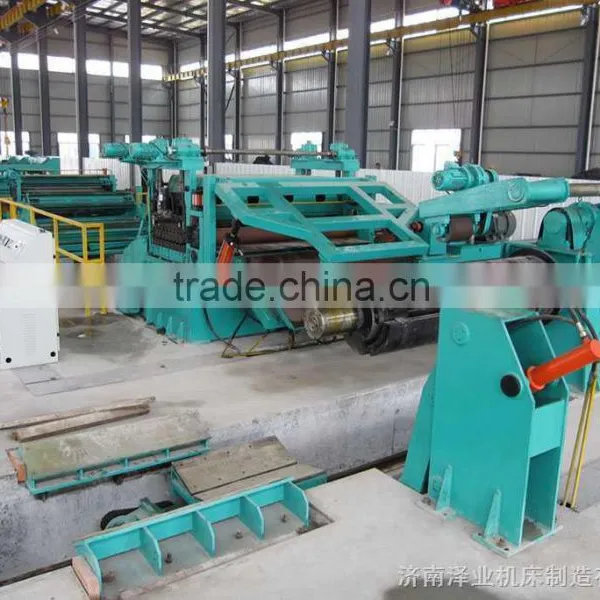

Steel coil slitting line
/watch?v=wz-QEdJ1nuI
/watch?v=d5qv3z3Greo
/watch?v=w67ofWSjqGQ
Steel coil cutting to length and slitting combined line:
/watch?v=qedPWxbnj-Q
/watch?v=u2sHTzGwf6o
Technical Achievements:
1.patent number:ZL 2011 2 0158833.2,Leveling mechanism of leveling machine
2.patent number:ZL 2011 2 0158753.7,quick change set for slitting machine
3.patent number:ZL 2010 2 0148106.3,In situ switching device for double slitting machine
4.patent number:ZL 2010 2 0148090.6,the guidance device for striping discharge of slitting machine
5.patent number:ZL 2012 2 0217074.7,double location shear plate for lifting pallet device
6. patent number:ZL 2012 2 0217069.6,pressure separation security agencies of recoiling machine
7.patent number:ZL 2012 2 0217323.2,Plate shear curving device for slitting machine
Certificates:
Sakes Network:
Contact Detail:
Eric Cha
Tel:+86-531-88773434
Mobile:+86-13046001147
eric5161 at
Skype:chatong0531
whatsapp: +86-13046001147
