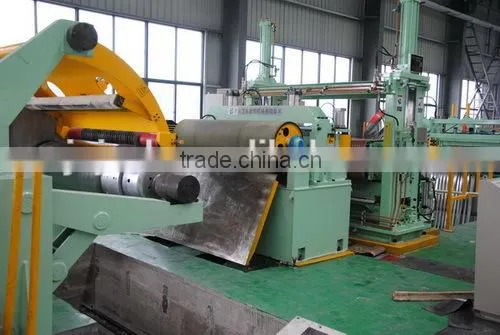

stainless steel coil Strip Slitting Line
1.General introduction of slitting line:
stainless steel coil Strip Slitting Line is for material 3mm thick,max.1600mm width of coil, with speed 180m/min,cutting strips 30 pieces . This line is the best choice for coil procssing center user .The machine consists of coil car ,uncoiler ,straightener ,loop Ⅰ,slitting machine,scrap winder, loop Ⅱ,belt bridlle ,recoiler ,asisting support ,exit coil car ,hydraulic system ,electrical system and so on.
The whole line is controlled by PLC with computer display. We mainly apply computer-control system of brands Mitsubishi, Yaskawa, Siemens, Baumueller, Delta, and Schneider. The information of order amount, cutting strips and speed can be input to the PLC systems. KJS180 series use belt briddle ,it is higher cost performance for customer with precision surface requirement
2.Technical process:
Coil car —double-head uncoiling —coil-head leading, shoveling, feeding —coil-head cutting — rectify deviation — slitting —side scrap winding —loop —material pre-dividing, tension —uncoiling — unloading car —hydraulic control — electrical control
3.Main technical parameters:
model |
thickness(mm) |
width(mm) |
number PCS |
Accuracy(mm) |
Speed |
weight(t) |
ZJX120-1*650 |
0.2-1 |
150-650 |
30-8 |
±0.05 |
0-120 |
3,5 |
ZJX120-1*850 |
0.2-1 |
300-850 |
30-8 |
±0.05 |
0-120 |
5,10 |
ZJX120-1*1050 |
0.2-1 |
300-1050 |
30-8 |
±0.05 |
0-120 |
5,10 |
ZJX120-1*1300 |
0.2-1 |
400-1300 |
30-8 |
±0.05 |
0-120 |
10,15 |
ZJX120-2*650 |
0.3-2 |
150-650 |
30-8 |
±0.05 |
0-120 |
3,5 |
ZJX120-2*1300 |
0.3-2 |
400-1300 |
30-8 |
±0.05 |
0-120 |
10,15 |
ZJX120-3*1300 |
0.4-3 |
400-1300 |
30-8 |
±0.05 |
0-120 |
10,15 |
ZJX120-3*1600 |
0.4-3 |
400-1600 |
30-8 |
±0.05 |
0-120 |
15,20 |
ZJX120-3*2000 |
0.4-3 |
500-2000 |
30-6 |
±0.05 |
0-120 |
15,20 |
ZJX120-4*1300 |
0.5-4 |
400-1300 |
30-6 |
±0.05 |
0-120 |
10,15 |
ZJX120-4*1600 |
0.5-4 |
400-1600 |
30-6 |
±0.05 |
0-120 |
15,20 |
ZJX120-4*2000 |
0.5-4 |
500-2000 |
30-6 |
±0.05 |
0-120 |
15,20 |
ZJX120-6*1600 |
0.6-6 |
400-1600 |
30-5 |
±0.08 |
0-120 |
15,20 |
ZJX120-6*2000 |
0.6-6 |
500-2000 |
30-5 |
±0.08 |
0-120 |
15,20 |

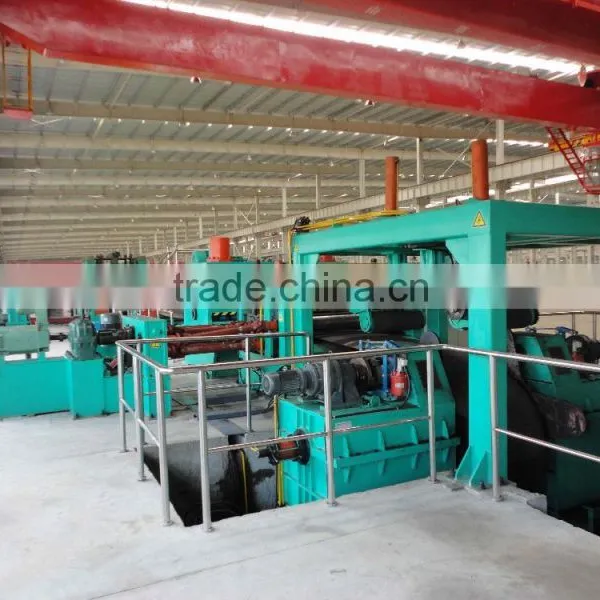

4.Main components:
1. coil car
2. decoiler
3. peeler entry table
4. Straightener.
5. Shearing machine
6. loop table
7. coil guide and pinch roll

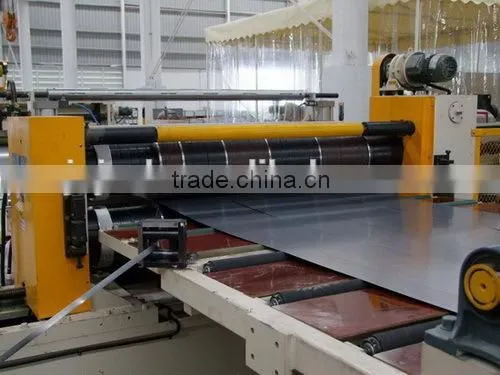

8. Slitting machine
9. scrap winder (both sides)
10. Loop table
11. separator and tension table
12. Deflector roll and exit threading table

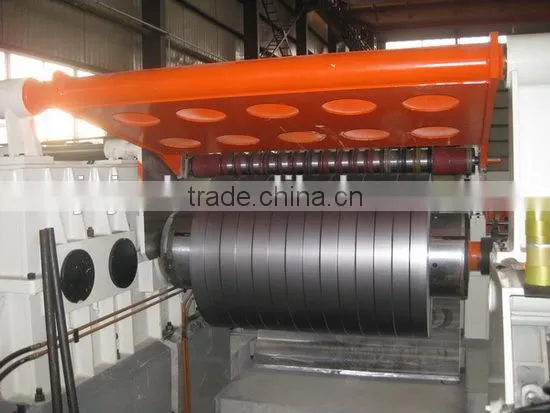

13. Recoiler
14. Over arm separator in the recoiler.
15. Exit coil car for recoiler
16. Hydraulic system
17. pneumatic system
18. electrical control system

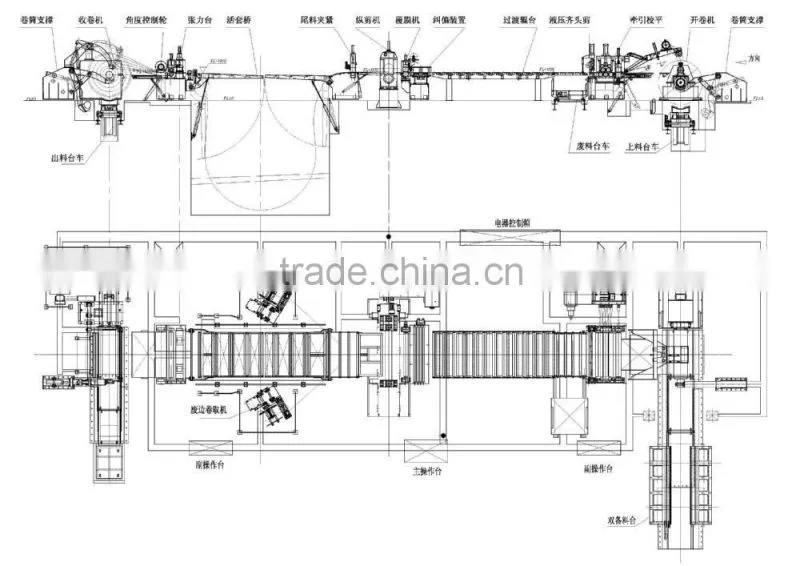

5.Layout drawing:
6.Working videos:
Steel coil cut to length line:
/watch?v=tuBvJV_K3Yg
/watch?v=D0z2REqOglw
Steel coil slitting line
/watch?v=wz-QEdJ1nuI
/watch?v=d5qv3z3Greo
/watch?v=w67ofWSjqGQ
Steel coil cutting to length and slitting combined line:
/watch?v=qedPWxbnj-Q
/watch?v=u2sHTzGwf6o
Contact:
Eric Cha
Tel:+86-531-88773434
Mobile:+86-13046001147
eric5161 at
Skype:chatong0531
whatsapp: +86-13046001147
Send Inquiry to This Supplier
