gantry type cnc plasma cutting machine for metalsheet
- 60 Set / Sets per Month
- Qingdao
- Credit Card
-
Hydraulic Guillotine Type Metal Shear Used in Scrap Metal Recycling Industry
-
Best price cnc table plasma cutting machine with water table
-
High-power cnc plasma cutting machine 1530
-
REBOUND CNC table plasma cutting machine for metal 1.5x3m
-
REBOUND CNC new automatic plasma cutting machine with good price
-
table cnc best price modern plasma cutting machine for stainless
Product Details
| Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Jisheng |
| Model Number: | LM series | Voltage: | 380V or as required | Rated Power: | upon actual model |
| Dimension(L*W*H): | upon actual model | Weight: | upon actual model | Certification: | ISO,CE |
| Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

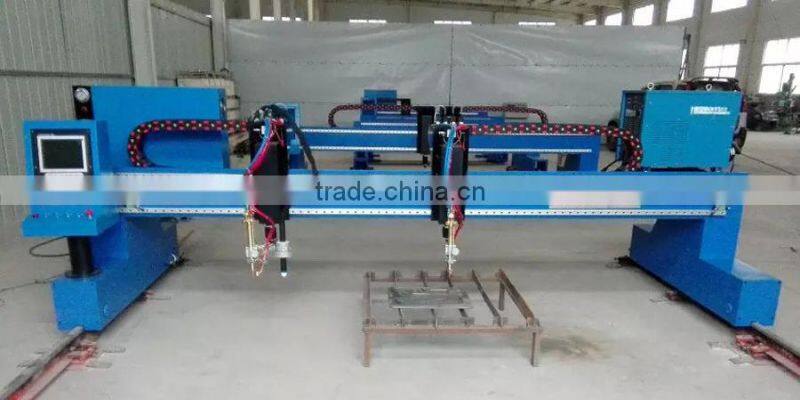

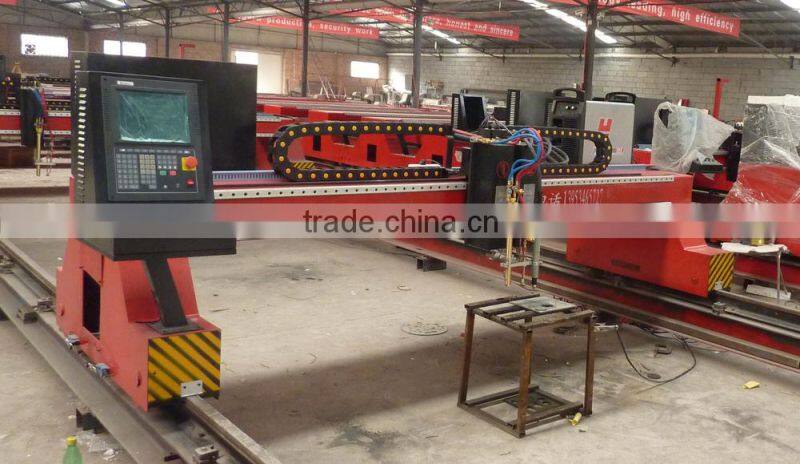

high quality gantry type cnc plasma cutting machine for metalsheet
Feature:
1.Box type heavy duty structure welded by thick steel,aging-treated,durable and stable with no deformation.
2. Gar-rack driving motions without engagement gap ensure the machine running smooth at high speed.
3. Fully functionalized CNC system and optocoupler device enhance the super anti-jamming capability of the plasma system.
4.Synchronism cutting of multiple cutting torches can be provided;
5.Gapless gearing transmit, stable and smooth running in high speed, smart, fine surface quality.
6.Low maintenance cost, dispense with special maintenance, friendly operator interface.
7. World’s top branded components and circuits ensure long service life.
8. Multiple cutting torches can be configured. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.
Technical Parameters:
high quality gantry type cnc plasma cutting machine for metalsheet | |
Cutting Width | 2500-7500 mm or upon requirement |
Cutting Length | 4000-20000 mm or upon requirement |
Input Power | 220/380 ± 10%V AC,50Hz /60 Hz |

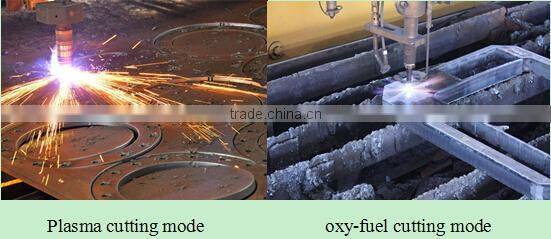

Cutting Mode | Plasma Cutting/Flame Cutting/ Plasma Cutting+ Flame Cutting |
Transmission Mode | Rack & Gear |
Drive Mode | Servo Motors |
Torch Lift Distance | 200 mm |
Torch & Number | upon requirement |
Available Plasma Unit | Hyper therm/ESAB/Thermadyn/Kjellberg,etc |
Plasma Cutting Thickness | upon plasma source |
Flame Cutting Thickness | Piercing: 5-80 mm;Edge Start: 6-200 mm |
Torch height control | Arc-voltage height controller for plasma cutting; |
Cutting Speed | Motors: 0-10000 mm / min |
Positioning Accuracy | ≤±0.2 mm /m |
Repeatability | ≤±0.3 mm /m |
Control system | Chinese Brand :Micro start/f2300/KP |
Nesting software | FASTCAM,pro nest,etc. |

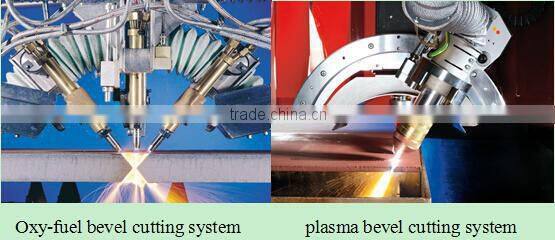

Options | Bevel cutting device; |
Working Videos:
gantry type cnc plasma cutting machine for metalsheet:
/watch?v=QYf5JGWolx0
/watch?v=O9s21hfUMpA
/watch?v=Djj1qzNcl8k

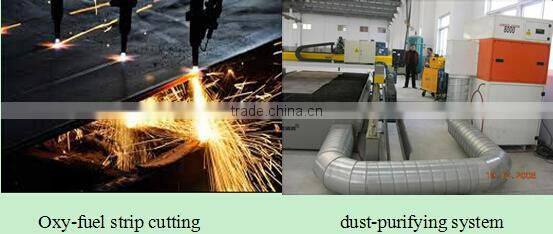

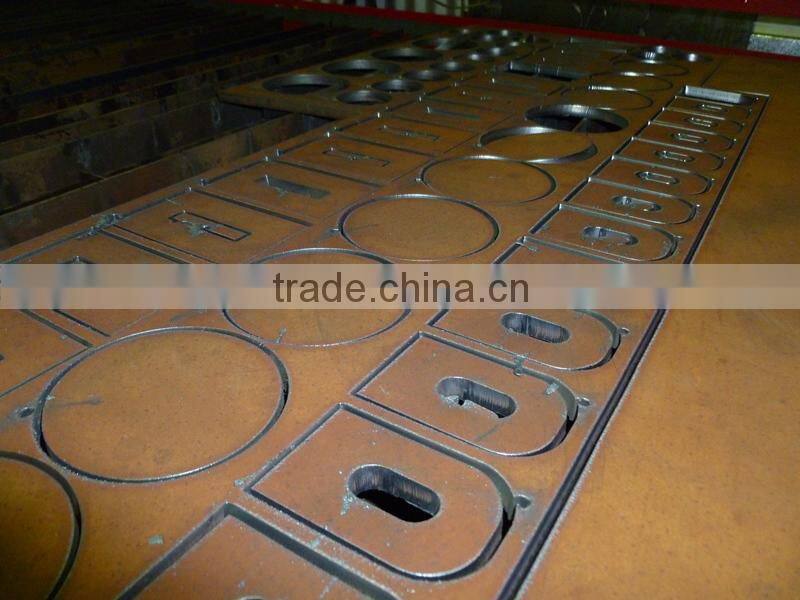

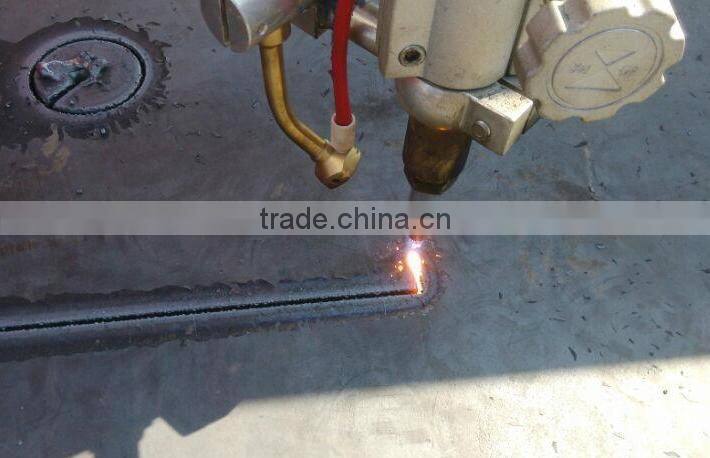

Application & Sample Products:
Main parts
Packaging & Delivery:
Packaging:gantry type cnc plasma cutting machine for metalsheet packaged in standard export plywood case
Delivery:gantry type cnc plasma cutting machine for metalsheet delivered in 15 working days after payment.
After-sale service:
Warranty:
gantry type cnc plasma cutting machine for metalsheet One year warranty for the whole machine;
After-sales Service
1.Free operation video for installation,any technical problems can be well settled via email,telphone and other online communication tools.
2.Oversea service by our engineers can be provided,if required,foreign customers are welcome to our factory for free on-site traning on installation and operation.
3.Free upgradion of nesting softwares.
4.Free technical recommendation and solution for welding and cutting by experienced engineers.
