Home > Products > Wheelchair Lift For Bus > WL-T-1000G Rotating Hydraulic Wheelchair Bus Lift for Disabled

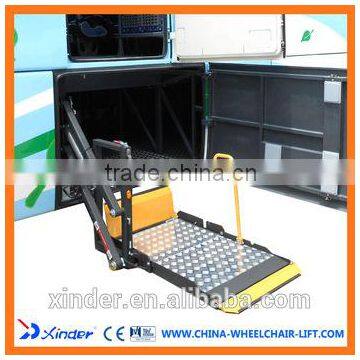

WL-T-1000G Rotating Hydraulic Wheelchair Bus Lift for Disabled
- 100 Set / Sets per Month
- shanghai
- Credit Card
Product Details
Design: | Scissor | Certification: | Other, ISO9001:2000 | Lifting Capacity: | 350kg |
Lifting Height(mm): | 1000mm | Overall Width(mm): | 1050 | Place of Origin: | Jiangsu, China |
Brand Name: | XINDER | Model Number: | WL-T-1000G | Warranty: | 12 Months |
Product Description
1. Introduction:
Ø WL-T rotating series wheelchair lift is developed on the basis of our existing WL-UVL series wheelchair lift. It mainly takes the limited luggage space into consideration, save space to adopt rotating device to achieve it.
Ø This wheelchair lift is composed of rotating device, hydraulic raising mechanism, and platform. Rotating device is used to control the rotation of the wheelchair lift. It rotates the wheelchair lift vertical to the door so as to let the passenger in and out and also maintain parallel to the door when the wheelchair is stowed and rotated to the door.
Ø Hydraulic raising device adopthydro cylinder and USA hydraulic stationto achieve the liberation of the arm of the wheelchair lift in vertical, so as to make the lifting device to come to the lifting height of the platform.
Ø There is inboard and outboard roll stop, and the wheelchair is placed on the platform. Make the wheelchair on the platform with front and rear roll stop, and then enter the inside of the vehicle. Meanwhile, the front and rear roll stop can protect the wheelchair when the platform is up and down.
2. Specification
Model | Overall dimension (L*W*H)mm | Platform size (L*W)mm | Rear rollstop (L*W)mm | Max lifting height mm | Application |
WL-T-1600 | 282*1016*1068 | 830*1220 | 816*250 | 1600 | Coach, tourist bus |
WL-T-1000G | 1075*1050*485 | 830*1220 | 816*270 | 1000 | Coach, tourist bus |
WHELECHAIR LIFT CE CERTIFICATE
we use wooden case pack for wheelchair lift,wheelchair ramp and swivel seat
We use Carbox for Electric step,wheelchair restraint system
