Home > Auto, Motorcycle Parts & Accessories > Auto Parts > Brake > Electric Bus Wheelchair Lifts for Handicapped With CE Loading 350kg
Electric Bus Wheelchair Lifts for Handicapped With CE Loading 350kg
US$ 20 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, wheelchair lift
Certification:
CE
Size:
1220*751 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Platform Wheelchair Lifts for Bus and Coach and AmbulanceUS$ 20 - 4,000MOQ: 1 Set -
WL- UVL Series BUS Wheelchair Lift Load 250kg With CE CertificateUS$ 20 - 4,000MOQ: 1 Set
-
Vehicle Scissor Wheelchair Lifts Power Wheelchair Lifts for Bus With CE CertificateUS$ 20 - 4,000MOQ: 1 Set
-
WL-STEP-800 Bus Wheelchair Lift for the Disabled With CE CertificateUS$ 10 - 5,000MOQ: 1 Unit
-
WL-STEP Series Power Wheelchair Lift for BusUS$ 20 - 5,000MOQ: 1 Set
Type
Other, wheelchair lift
Certification
CE
Size
1220*751 mm
Material
steel
OEM No.
no
Bus Model
HIGER
Place of Origin
Jiangsu, China
Brand Name
xinder
Model Number
WL-UVL-1300, WL-UVL-1300
Product Description

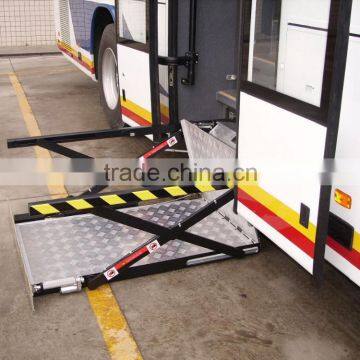

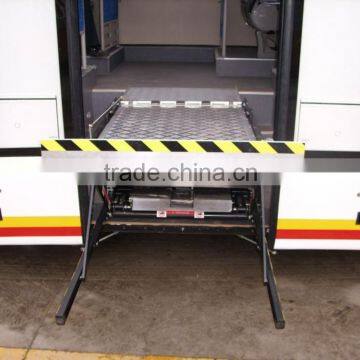

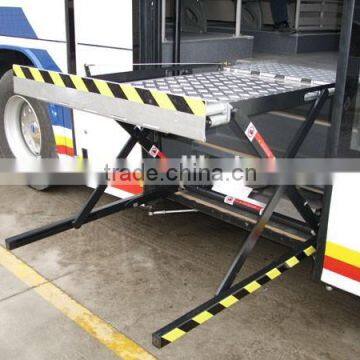

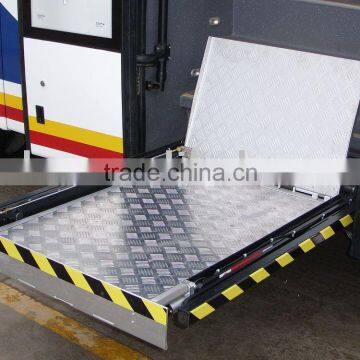

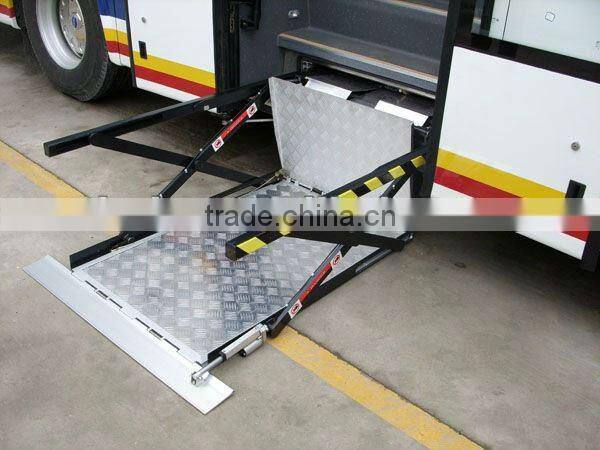

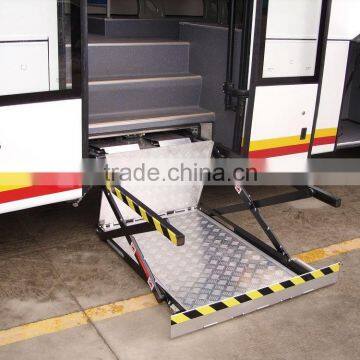

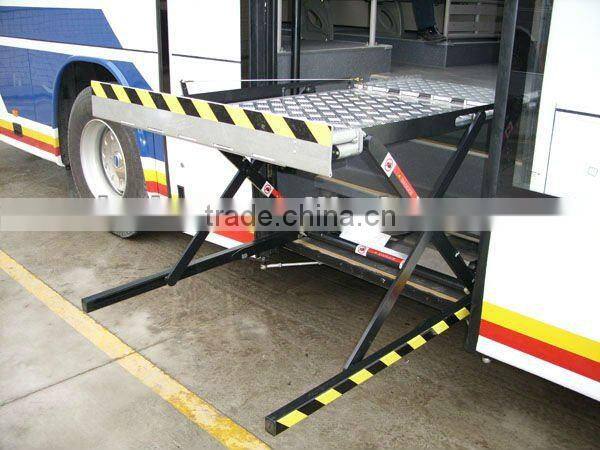

Electric Wheelchair Lifts for bus offers an innovative solution to your mobility. With the lift mounted underneath the vehicle, it remains out of sight and out of your way until needed. This means easy access, a clear side view and maximum interior space.
The UVL Series lifts are electric in operation for both the in/out cycle and the outboard roll stop. The up/down cycle is hydraulic in operation. All functions are controlled by the standard hand-held control or the optional remote control.
The UVL Series is designed for installation at the side door of domestic full-size vans, buses and coaches. Installation of the UVL requires modification of the vehicle - consult your Dealer for details.
Advantages
Super thin compact design
Electric outboard rollstop and automatic inboard rollstop
No-skid aluminum honeycomb platform
Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Side handrails (Option), for increased comfort and security
Sound and flash light alarm during operation of platform
Built in manual backup system
Technicals
Main dimension parameter
Model |
WL-UVL-1000 |
WL-UVL-1000-S |
WL-UVL-1000(II) |
Platform size |
751*1220 |
751*1220 |
751*1220 |
Max. up stroke |
570 |
570 |
555 |
Max. down stroke |
540 |
540 |
595 |
Length required to install lift |
1940 |
1812 |
1867 |
Height of lift rear end |
133 |
133 |
133 |
Height of lift front end |
167 |
167 |
167 |
Distance between guide frame and up fitting surface |
53 |
53 |
53 |
Distance between front fitting surface and spindle of main arm |
347 |
75 |
145 |
Installation position |
for the bus with three steps; installed in step |
for the bus with two steps; installed under chassis |
for coach or tourist bus; installed in the luggage |
