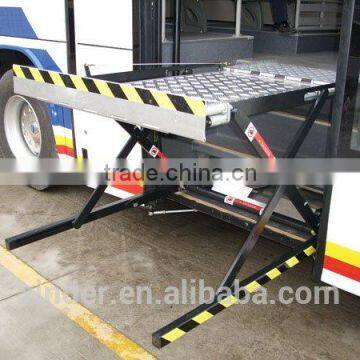

CE WL- UVL-700 Electric Wheelchair Lift for buses

FOB Price

USD $2,000 - $5,000 / Set

1 Set(Min.Order)

Supply Ability 100 Unit / Units per Month
Port SHANGHAI
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	XINDER
Model Number	WL-UVL-700		Type	Other, Hydraulic and electric, Double Cylinder Hydraulic Lift

Product Description

INFORMATION

Super in design
No-skid aluminum platform
Side handrails
manual backup system

WL- UVL Series Wheelchair Lift for bus, offers an innovative solution to your mobility. With the lift mounted underneath the vehicle, it remains out of sight and out of your way until needed. This means easy access, a clear side view and maximum interior space.

The UVL Series lifts are electric in operation for both the in/out cycle and the outboard roll stop. The up/down cycle is hydraulic in operation. All functions are controlled by the standard hand-held control or the optional remote control.

The UVL Series is designed for installation at the side door of domestic full-size vans, buses and coaches. Installation of the UVL requires modification of the vehicle - consult your Dealer for details.

ADVANTAGES

Super thin compact design

Electric outboard rollstop and automatic inboard rollstop

No-skid aluminum honeycomb platform

Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs

Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.

Side handrails (Option), for increased comfort and security

Sound and flash light alarm during operation of platform

Built in manual backup system

TECHNICAL SPECIFICATION

Model

Voltage

Motor power

Pressure

Cylinder diameter&stroke

UVL-700/1000

/1300

12V/24V

0.8Kw

2500Psi

Φ60X70

unidirectional operation

Max lifting load	Max lifting height	Voltage	Len & width of platform
350 Kg	700 -1600mm	12/24 V	7511220/7511297mm

¨ Raise lift platform: motor drive, hydraulic function;

¨ Lower lift platform: pressure release valve of power unit control velocity of flow to provide gravity function;

¨ Raise platform manually: operate manual pump;

¨ Lower platform manually: rotate button of manual pressure release valve with specialized tool;

¨ Movement of front & rear rollstop: electric drive(front rollstop), mechanical drive (rear rollstop);

¨ Model & Capacity of hydraulic oil: L-HV46

Our factory :

Packaging &shipping
we use national standard package, , very safety when ship by sea or by air .

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden case. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF any other terms.
