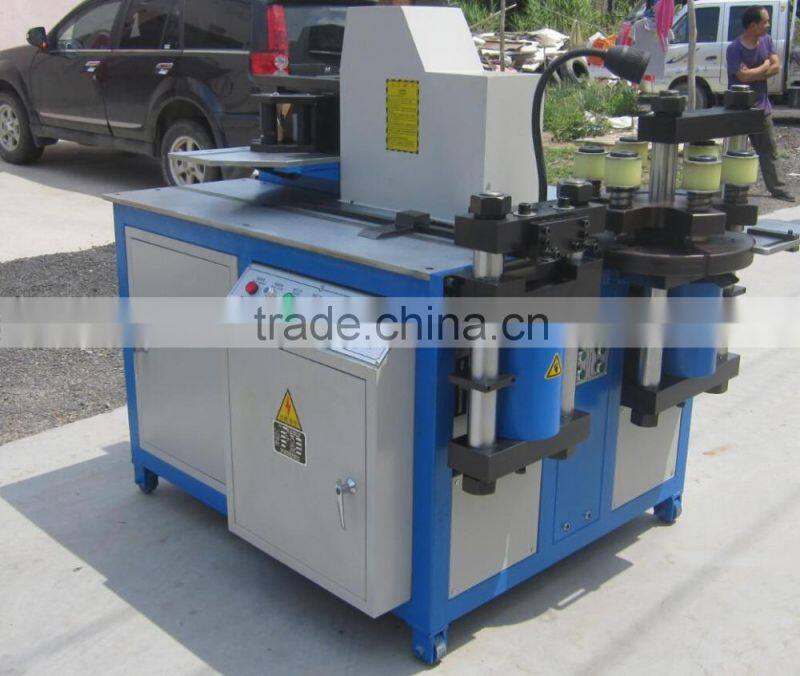

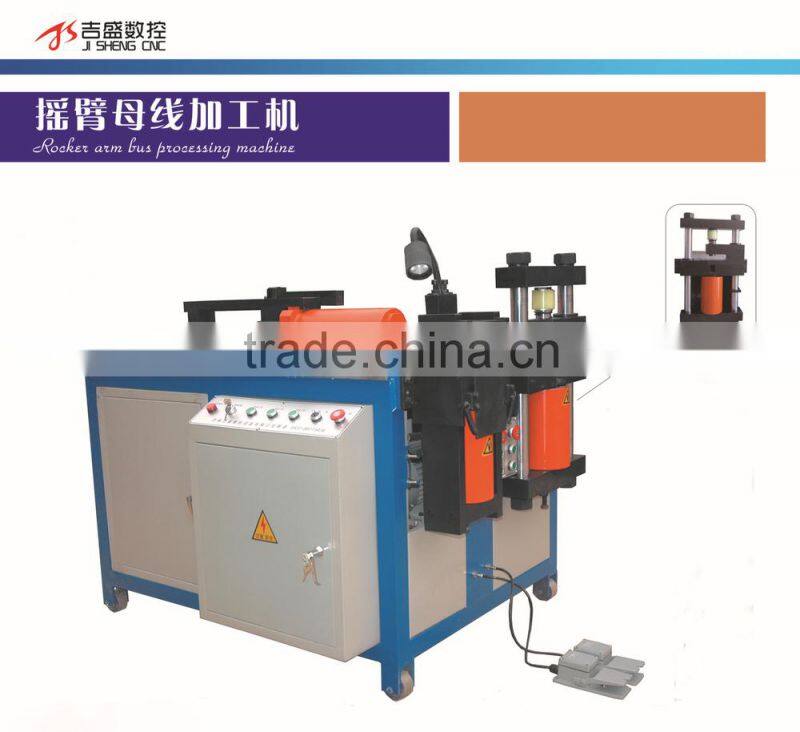

double woking table copper busbar punching shearing machine
Introduction:
double woking table copper busbar punching shearing machine is also called busbar processing machine, which is mainly used for different types of processing of copper or aluminum busbar. One machine can carry out processing of punching, shearing and bending at the same time or respectively. It is easy to operate, convenient to use and high efficiency. So it is an ideal processing equipment for electrical appliance manufacture of high and low voltage.
Feature:
1.Three units for punching, shearing and bending.through changing die, it can do special works such as pressing, embossing, pressing cable joint, twisting and so on.
2.Punching-unit-It can be installed 6 punching mold once time in punching turret unit,saving time of changing die and improving working efficiency.
3.working stroke of each unit can be adjusted conveniently to reduce machining auxiliary time and improve production efficiency.
4.vertical machining method for punching and shearing unit, so operation is flexible and convenient. We use flatedge shearing method, so the work piece surface is neater and smoother
5.horizontal bending type to achieve flat bending and vertical bending by changing tools.
6.There are 4 trundles. So the machine can be moved conveniently by adjusting them.
Technical parameters:
double woking table copper busbar punching shearing machine | ||||
Item | MX-303YD-D | MX-303YD-C | MX-503YD-D | |
Punching | Max. punching force(KN) | 300 | 300 | 500 |
Punching range(mm) | 4.3~25 | 4.3~25 | 4.3~34 | |
Max.thickness(mm) | 12 | 12 | 16 | |
max. working width(mm) | 150 | 150 | 250 | |
Shearing | Max.shearing thickness(mm) | 12 | 12 | 16 |
max.shearing width(mm) | 150 | 150 | 250 | |
Bending | Max. bending force(KN) | 300 | 300 | 500 |
Max.bending width(mm) | 150 | 150 | 250 | |
max. bending thickness(mm) | 12 | 12 | 16 | |
vertical bending process | Max. bend width(mm) | 100(10mm thickness) | 100(10mm thickness) | 120(10mm thickness) |
min.bending angle | 90° | 90° | 90° | |
Dimension(mm) | 1500×1300×1200 | 1500×1300×1200 | 1800×1500×1200 | |
Main motor power(kw) | 3×4KW | 1×4KW | 3×5.5 KW | |
Weight(kg) | 1050KG | 1200KG | 1750KG | |
working unit:
Sample products:
Applicable industries:
Service
Warranty
double woking table copper busbar punching shearing machine One year warranty for the whole machine;
After-sales Service
1.Free operation video for installation,any technical problems can be well settled via email,telephone and other online communication tools.
2.Oversea service by our engineers can be provided,if required,foreign customers are welcome to our factory for free on-site training on installation and operation.
3.Free technical recommendation and solution for copper/aluminum busbar processing.
Why us:
1.Professional manufacturer specializing in busbar machines;
2.Trusted gold supplier of Alibaba;
3.Experienced and professional sales and service team;
4.Professional solutions on copper/aluminum busbar processing;
5.Years experiences of sales,repair and oversea service.
Contact:
Eric Cha
Tel:+86-531-88773434
Mobile:+86-13046001147
eric5161 at
Skype:chatong0531
whatsapp: +86-13046001147
