2014 best price GCstandard KT7/KT8 Hydraulic rotary integral open air drill rig,reverse air drilling rigs for mine or industrial
- 20 Set / Sets per Month
- Shanghai NingBo
- T/T L/C Credit Card PayPal
You May Like
-
Hydraulic rotary integral open air drill rig,reverse air drilling rigs for mine or industrial
-
Hydraulic rotary integral open air track drilling rig,reverse air track mounted drilling rigs for mine or industrial
-
KT11S Hydraulic rotary integral open air track drilling rig,swivel for drilling rig
-
KT11S Hydraulic rotary integral open air track drilling rig
-
KT11S 18M depth,17bar Hydraulic rotary integral open air track drilling rig
-
Kaishan brand KT11S Integrated Type Crawler Limestone Quarrying or Mining drill rig
Product Details
Condition | New | Type | Rotary Drilling Rig | |
Power Type | Diesel | Place of Origin | Jiangsu, China | |
Brand Name | Kaishan | Model Number | KT7KT8 Hydraulic rotary integral open air drilling rig | |
Usage | Ore | Voltage | customization | |
Power(W) | 190kw | Dimension(L*W*H) | 8000*2260*2800 | |
Weight | 9500KG | Certification | ISO | |
Warranty | 2years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
2014 best price GCstandard KT7/KT8 Hydraulic rotary integral open air drill rig,reverse air drilling rigs for mine or industrial
1. Main features and Specification Of 2014 best price GCstandard KT7/KT8 Hydraulic rotary integral open air drill rig,reverse air drilling rigs for mine or industrial

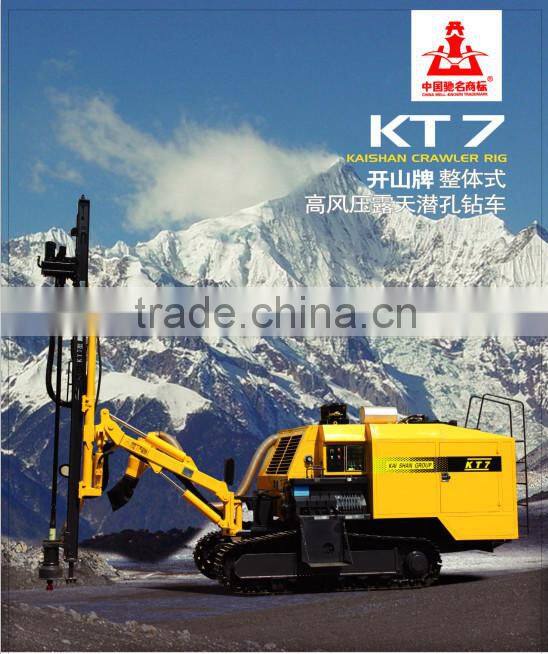

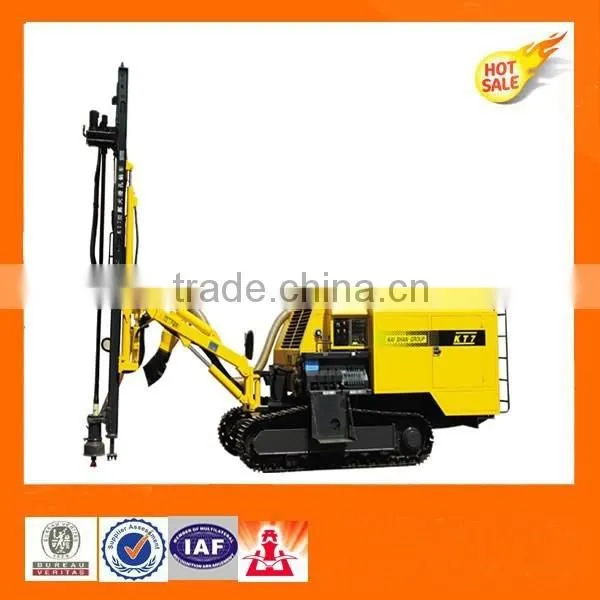

KT7 integral high pressure open air drill rig is an advanced drilling equipment, which integrated down the hole drilling system and screw air
compressor systems, and a sixcylinder diesel engine provided power for the two systems. Compact structure, good integrity and easy to
move. The drill rig equipped with screw air compressor head with core knowledge of the high pressure and single stage compression, and
applied of the world's leading Towne Yshaped line, large flowing (13m ³ / min), high pressure (1.7MPa), which provide strong impetus to high
pressure pneumatic impactor that enable drilling speed faster 20% -50% than the medium pressure drill rigs.
KT7 Integral Open Air Drill Rig | |
Rock Rigidity | f=6-20 |
Dia. of Hole | 90-105 mm |
Drilling Depth | 30~40 m |
Working Pressure | 17 bar |
Air Consumption | 13 m3/min |
Rotation Speed | 0-120 rpm |
Torque | 1900 N•M |
Lift Power | 25 kN |
Ground Clearance | 380 mm |
Rated Power | 180 kw |
Diesel Engine | YC6A |
Traveling Speed | 2.5 Km/h |
Gradeability | 30° |
Pivot Angle of Drill Boom | Left: 60°, Right: 39° |
Lift Angle of Drill Boom | Down:20°; Upward:42° |
Pivot Angle of Carriage | Left: 35°, Right: 38° |
Lift Angle of Carriage | -28°~ +42° |
Pitch Angle of Carriage | 129° |
Leveling Angle of Carriage | Right: 4~89° |
Leveling Angle of Frame | Down: 10°; Upward: 9° |
Dimension | 8000*2260*2800 mm |
Weight | 9500 KG |
Impactor | KQG35A |
Propel Length | 3000 mm |
Compensation Length | 900 mm |
Drill Pipe | Φ64×3000 mm |
Dusting System | Hydraulic Cyclone Laminar |
2.Application of 2014 best price GCstandard KT7/KT8 Hydraulic rotary integral open air drill rig,reverse air drilling rigs for mine or industrial
KT7 type integral high pressure open air drill rig is mainly used for rock drilling engineering and open mines.

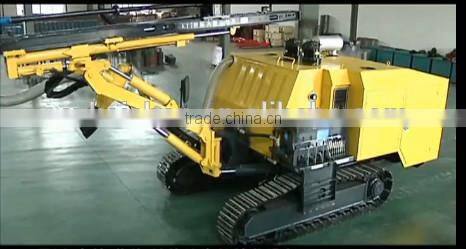

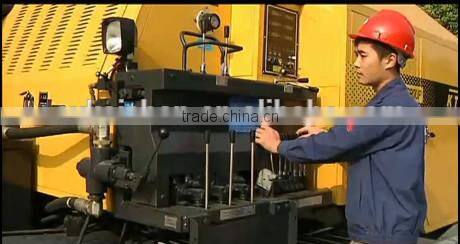

3. Working of 2014 best price GCstandard KT7/KT8 Hydraulic rotary integral open air drill rig,reverse air drilling rigs for mine or industrial
4.Recommended Air Compressor

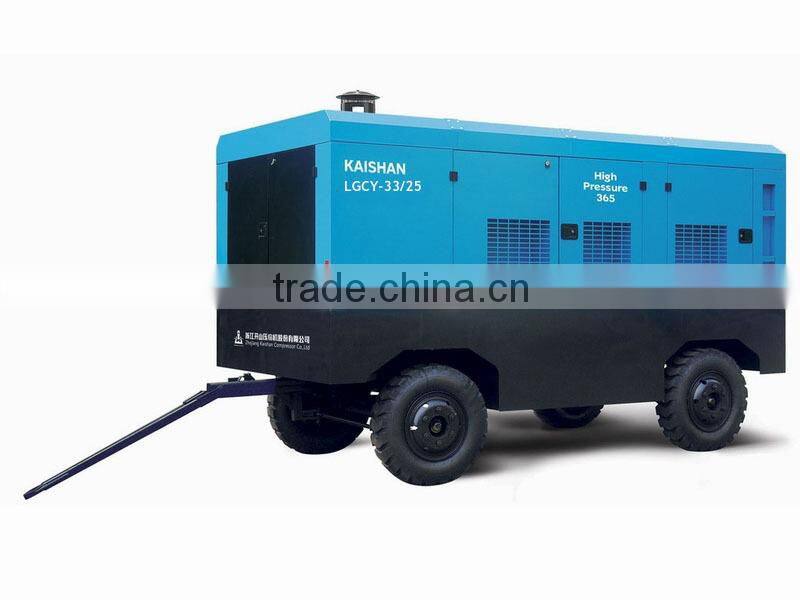

DMCY-33/25 Diesel portable air compressor
air deliver:33m³/min
Motor Power:298kW
>> Click to view data for details |

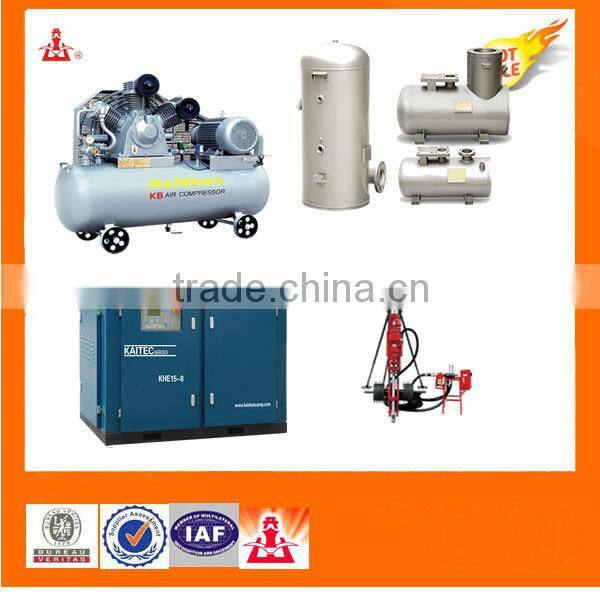

5.We also provide other Mining operations.

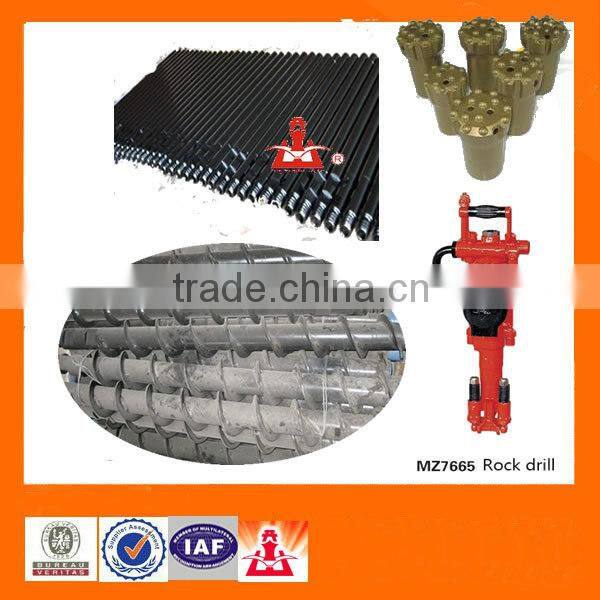

5.Spare parts supermarket
1. Warranty: 1or2years.
2. Engine Maintenance Center in most of the countries.
3. Online Technical Service.
4. Supply Original Spare Parts.
Why choose us?
1), 100% spare parts can be supplied.
We can supply all spare parts: for air compressor, we can supply air filter, oil filter, oil core, belt and so on. for drilling rig, we can supply drill bit, drill rod, dth hammer, motor, joint etc, diesel engine parts. (Low Pressure, Middle Pressure, High Pressure)
2), We are the public company,all the products can ensure the quality.
we are the Public company,the group have several sist of the spare parts we are all produce ourselves,so we can control the quality,also the significant cost advantage.
3), Training is Free to every customer. Wherever you need us, for installation, maintainance, or proper use of our company machines, we will be right there for you. In addition, we provided one year warrantee to make sure your machine runs consistently.
4), We will recommend a suitable type for you and send you a best quotation.
A: What is the working pressure ( Mpa, Bar, PSI)?
B: What is the volume flow ( m3/min, CFM)?
C: What is the volume flow ( m3/min, CFM)?
D: What is the Power supply ( KW, HP)?
How to place an order:
1), Send inquiry
2), We will contact to you
3), Tell us your require model quantity or ask us other question you need to know
4), Send you the invoice
5), Wait for your deposit
6), Prepare your products, pack your products, delivery
7), Send you document for custom
8), After sale service
2014 best price GCstandard KT7/KT8 Hydraulic rotary integral open air drill rig,reverse air drilling rigs for mine or industrial
There are different kinds of packing depend on what you need.
Kaishan group is a state-level large scale enterprise in China, which has been listed among the five industries of Zhejiang Provincial government, the 958 Technology Catching-up Plan and the key enterprises by Zhejiang provincial government. The group is the civilized enterprise of provincial level and contract abiding and trustworthy enterprise of state level.
Currently, Kaishan group has 18 subordinate companies with over 4100 employees. It covers an area of over 430,000 m2 with the total building complex area over 230,000 m2 and the total assets of the group amounts to over 1.5 billion.
Kaishan group has a sophisticated national-wide retail network supported by the high-quality customer service system. The nine major series of Kaishan product spread from rock drilling unit, screw air compressor to excavator, crawler drill etc, and altogether 18 categories with over 800 individual products.
By far, Kaishan group is the largest rock drill manufacturer in the world, and the largest air compressor manufacturer in China. Exports are shipped to over 20 different nations and regions such as United States, Germany, Japan, South Korea, Russia, African and Latin American countries.
2014 best price GCstandard KT7/KT8 Hydraulic rotary integral open air drill rig,reverse air drilling rigs for mine or industrial

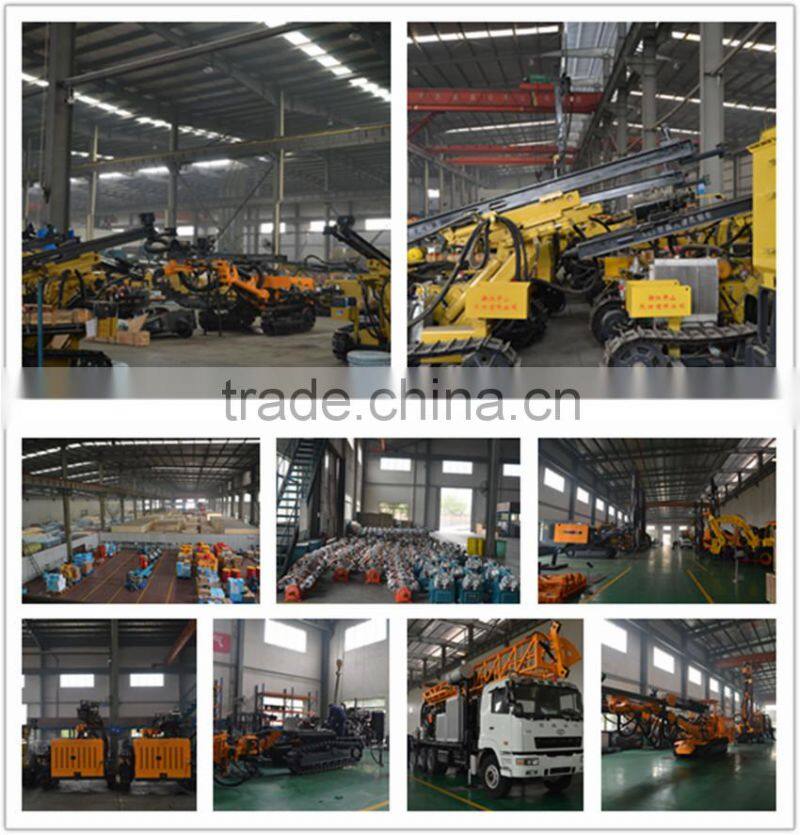

Warehouse
