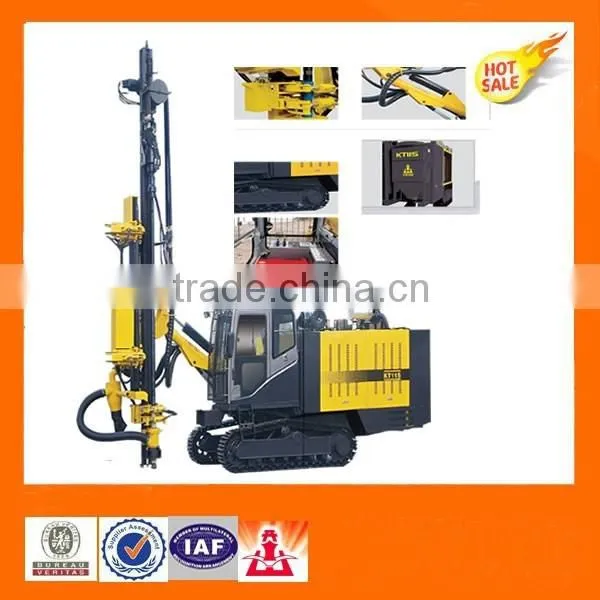

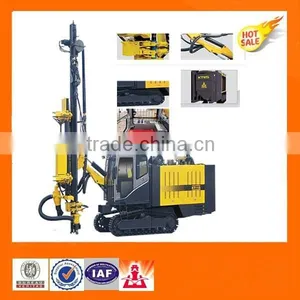

KT11S Hydraulic rotary integral open air track drilling rig,swivel for drilling rig
1. Main features and Specification Of KT11S 18M depth,17bar Hydraulic rotary integral open air track drilling rig

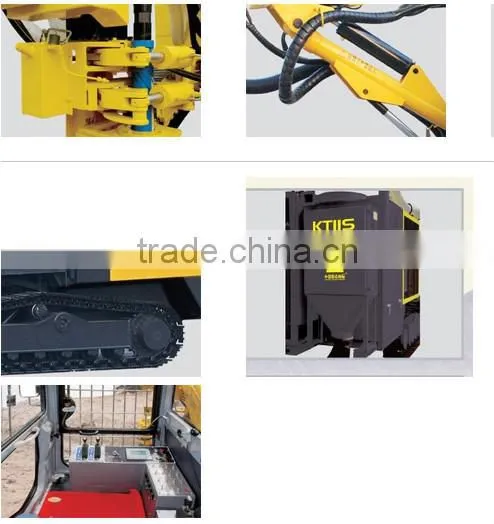

"Kaishan" brand KT11S integral type high wind pressure open-air crawler drilling rig is using a power to drive hydraulic system and high wind pressure screw compression system at the same time, compact structure, highly energy utilization, with automatic unloading rod, cabin air conditioner and dry dust collector such functional module. Jumbo has good integrity, environmental protection and energy saving,high degree of automation, drilling effect is good, convenient operation,flexible, driving safety, etc. Suitable for open-pit mine, quarry, highway,railway, water conservancy, electric power, construction and other medium and deep hole in the stone engineering extension rod drilling operations.
KT11S One-piece open-air drilling rig technical parameters: | |||
Rock hardness |
f=6-20 |
Carriage elevation angle |
114° |
Drilling diameter(mm) |
105-125 |
Carriage swing angle |
right 36° left 35° |
|
Economic drill depth (Automatic extension rod depth)m |
18 |
Carriage leveling swing angle |
right 12°~93° |
Travel speed(Km/h) |
0-2.2 |
Drill arm swing angle |
right 45° left 5° |
Gradeability |
20° |
Frame leveling angle |
up 10° down 8° |
Ground clearance(mm) |
430 |
Push length(mm) |
3000 |
Machine Power(kW) |
239 |
Compensation length(mm) |
1200 |
Diesel |
Commins 6LTAA8.9-C325
|
Dill rod |
φ76x3000mm |
Screw capacity(m³/min) |
18 |
Catching dust |
dry-type(Hydraulic cyclone layer flow)
|
Scre wworking Pressurebar |
17 |
Jaw way |
Automatic discharge rod |
Dimension (mm) |
9300x2580x3000 |
Automatic protection card way |
electro-hydraulic control card |
Weight(Kg) |
14600 |
Drill rod lubricating |
Automatic oil lubrication |
Rotating Speed(r/min) |
0-63 |
Drill rod thread protection |
Equipped with floating joint protection drill rod thread |
Rotating torque(N.m) |
2800 |
Drill hole angle |
Two-dimensional electronic Angle indicator |
Maximum lifting power(N) |
32000 |
Drill hole depth |
Electron hole deep instructions |
Hammer |
HD45A |
||
2.Application of KT11S 18M depth,17bar Hydraulic rotary drilling rig
KT11stype integral high pressure open air drill rig is mainly used for rock drilling engineering and open mines.

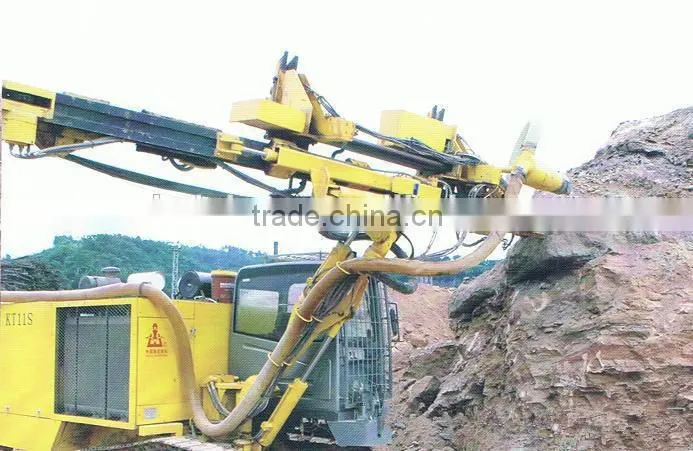

3. Working of KT11S 18M depth,17bar Hydraulic rotary integral open air track drilling rig
4.Recommended Air Compressor
|
DMCY-33/25 Diesel portable air compressor
air deliver:33m³/min
Motor Power:298kW
>> Click to view data for details |
5.We also provide other Mining operations.
5.Spare parts supermarket
1. Warranty: 1or2years.
2. Engine Maintenance Center in most of the countries.
3. Online Technical Service.
4. Supply Original Spare Parts.
Why choose us?
1), 100% spare parts can be supplied.
We can supply all spare parts: for air compressor, we can supply air filter, oil filter, oil core, belt and so on. for drilling rig, we can supply drill bit, drill rod, dth hammer, motor, joint etc, diesel engine parts. (Low Pressure, Middle Pressure, High Pressure)
2), We are the public company,all the products can ensure the quality.
we are the Public company,the group have several sist of the spare parts we are all produce ourselves,so we can control the quality,also the significant cost advantage.
3), Training is Free to every customer. Wherever you need us, for installation, maintainance, or proper use of our company machines, we will be right there for you. In addition, we provided one year warrantee to make sure your machine runs consistently.
4), We will recommend a suitable type for you and send you a best quotation.
A: What is the working pressure ( Mpa, Bar, PSI)?
B: What is the volume flow ( m3/min, CFM)?
C: What is the volume flow ( m3/min, CFM)?
D: What is the Power supply ( KW, HP)?
How to place an order:
1), Send inquiry
2), We will contact to you
3), Tell us your require model quantity or ask us other question you need to know
4), Send you the invoice
5), Wait for your deposit
6), Prepare your products, pack your products, delivery
7), Send you document for custom
8), After sale service
KT11S 18M depth,17bar Hydraulic rotary integral open air track drilling rig
There are different kinds of packing depend on what you need.
Kaishan group is a state-level large scale enterprise in China, which has been listed among the five industries of Zhejiang Provincial government, the 958 Technology Catching-up Plan and the key enterprises by Zhejiang provincial government. The group is the civilized enterprise of provincial level and contract abiding and trustworthy enterprise of state level.
Currently, Kaishan group has 18 subordinate companies with over 4100 employees. It covers an area of over 430,000 m2 with the total building complex area over 230,000 m2 and the total assets of the group amounts to over 1.5 billion.
Kaishan group has a sophisticated national-wide retail network supported by the high-quality customer service system. The nine major series of Kaishan product spread from rock drilling unit, screw air compressor to excavator, crawler drill etc, and altogether 18 categories with over 800 individual products.
By far, Kaishan group is the largest rock drill manufacturer in the world, and the largest air compressor manufacturer in China. Exports are shipped to over 20 different nations and regions such as United States, Germany, Japan, South Korea, Russia, African and Latin American countries.
