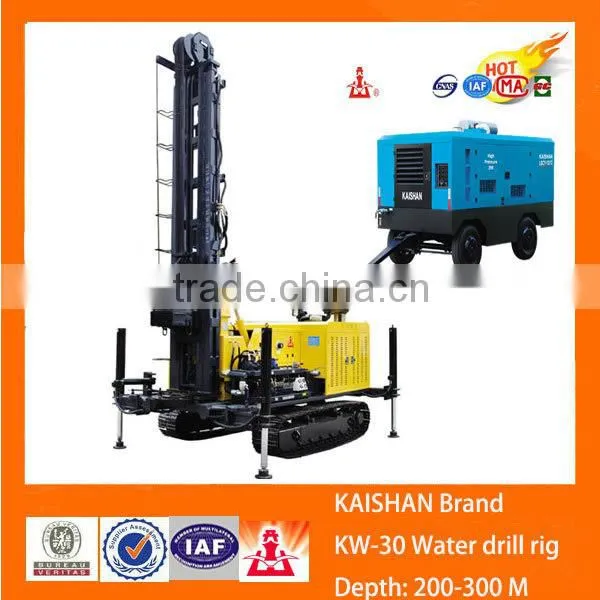

Portable well drilling equipment,water well Drilling Rig,drilling equipment for sale,KW30 water well drilling rigs
1. Main features and Specification Of Portable well drilling equipment,water well Drilling Rig,drilling equipment for sale,KW30 water well drilling rigs
Portable well drilling equipment,water well Drilling Rig,drilling equipment for sale,KW30 water well drilling rigs | |||
Rock hardness |
/ |
Ground clearance(mm) |
280 |
|
168-300mm |
Walking speed(Km/h) |
0--2.5 |
Economic drilling deep(m) |
300 |
Drill arm rising corner |
/ |
Pressure(MPa) |
1.05-2.46 |
Drill arm swing angle |
/ |
Air consumption(m^3/min) |
16-40 |
Slide angle |
/ |
Rotation speed(rpm) |
60/105 |
Slide the pitch |
/ |
Lifting Power (KN) |
150 |
Driving power (KN) |
50 |
Drill rod dimension(mm) |
Φ79x3000/φ89x3000 |
External dimension(mm) |
5200×2300×3200 |
Grade ability |
25° |
Engine Model |
YC 6B150Z-T21 |
Total power (kW) |
110kW |
Pick up the bar way |
AUTO |
2.Application of Portable well drilling equipment,water well Drilling Rig,drilling equipment for sale,KW30 water well drilling rigs
KW series multi-function geothermal water wells drilling car is after market research and design of the drilling hole 300 meters of the equipment.
It is in the mature KW10 / KW20 geothermal Wells on the basis of the multi-function rig upgrade is a lightweight, high efficiency and multi-function of deep hole drilling equipment, it is mainly suitable for drilling Wells, geothermal air-conditioning hole hole and other USES.
Optimization of the hydraulic system, hydraulic control valve from the reliable manufacturer, guarantee the jumbo stable performance. To reasonable improvement of carriage parts, increase the wear plate, reduce the wear in the drilling and prolong service life.
Strong rotary motor with high torque and the two big bore the oil cylinder, ensure the use of the jumbo and reliable performance.
3. Working of Portable well drilling equipment,water well Drilling Rig,drilling equipment for sale,KW30 water well drilling rigs
The main parameters of similar Water Well Drilling Rig:
Model |
Dia. Of hole |
Depth of hole |
Push length |
Working pressure |
Air consumption |
Max lifting capacity |
Remark |
KW10 |
115-254 |
120 |
3 |
1.05-2.46 |
16-30 |
70 |
WATER DRILL |
KW20 |
115-254 |
200 |
3 |
1.05-2.46 |
16-30 |
95 |
WATER DRILL |
KW30 |
168-300 |
300 |
3/4 |
1.05-2.46 |
16-40 |
150 |
WATER DRILL |
4.Recommended Air Compressor
|
DMCY-33/25 Diesel portable air compressor
air deliver:33m³/min
Motor Power:298kW
>> Click to view data for details |
5.We also provide other Mining operations.
5.Spare parts supermarket
5.Our Company:
1. Shanxi Kaishan Mechanical & Electrical Equipment Co., Ltd. is located in a
Beautiful ancient City - Xi'an. Since founded more than 10 years ago, our
company has accumulated much experience in the business of air compressors
and drilling rig machines
2. National Free-inspection Product,Have passed ISO9001 certification.
3. Good Service, competitive price, high quality, fast shipping and perfect after
sale service.
Welcome to visit our factory and would like to start the cooperation with you in the near future.
