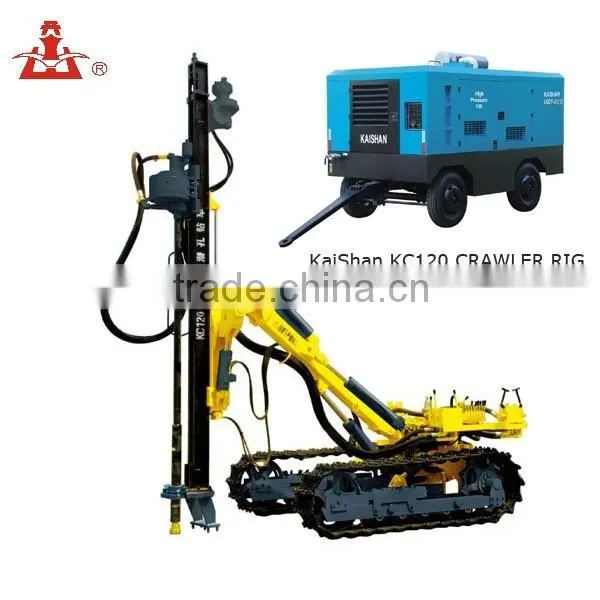

KC120 Integrated DTH mobile drilling rig,Integrated high pressure DTH mobile drilling rig,crawler drill rig
KaiShan DTH crawler drill is mainly used in large-scale open -pit mines and quarries,etc.the main hydraulic dry dust collector can collect the dust and reduce pollution,while the use of automatic unloading rods reduces labor intensity.the air conditioned cab provides a comfortable working environment and the automatic control anti-jamming valve reduces the probability of getting stuck.
Features of KC120 Integrated DTH mobile drilling rig,Integrated high pressure DTH mobile drilling rig,crawler drill rig :
Rock Rigidity |
f=6-20 |
Drilling diameter(mm) |
135-190 |
Drilling Depth (m) |
35 |
Traveling Speed (Km/h) |
3.0 |
Climb Capacity° |
25° |
Ground Clearance (mm) |
430 |
Power(Kw) |
298 |
Engine Model |
Commins QSZ13-C400 |
Air Consumption (m3/min) |
22 |
Screw compressor work pressure(Mpa) |
25 |
Working Pressure(bar) |
20 |
Dimension(mm) |
11500 ×2716×3540 |
Weight( Kg ) |
23000 |
Rotation Speed(r/min) |
0-118 |
Rotatio Torque(N*m) |
4100 |
Max. Feed Force(N) |
65000 |
Guide Tilt |
125° |
Guide Swing |
right97°left33° |
Boon Swing |
right42°left15° |
Crawler Balance Angle |
up10°down10° |
Feed stroke( mm) |
5000 |
Compensation stroke(mm) |
1800 |
Hammer |
HD55A |
Rod(mm) |
φ89×5000/φ102×5000 |
| Catching dust method | dry-type or wet-type |
| Extension rod method | Automatic discharge rod |
| Automatic protection lock method | The electro-hydraulic control |
| Drill pipe lubricating method | Automatic oil lubrication |
| Drill pipe thread protection | Equipped with floating joint protection drill pipe thread |
|
Real-time display Angle of drilling and drilling depth |
Please select the right style, send me the email, I will confirm you soon.
Usage of KC120 Integrated DTH mobile drilling rig,Integrated high pressure DTH mobile drilling rig,crawler drill rig
The DTH crawler drill is mainly used in large-scale open-pit mines and quarres.etc.The main hydraulic components and diesel engines are inportanted products.It comes with a 22/20 high pressure screw head and high drilling efficiency.The htdraulic dry dust collector cab collect the dust and reduce pollution,while the use of automatic unloading rods reduces labor intensity.The air conditioned cab provides a comfortable working environment and the automatic control anti-jamming valve reduces the probability of getting stuck.

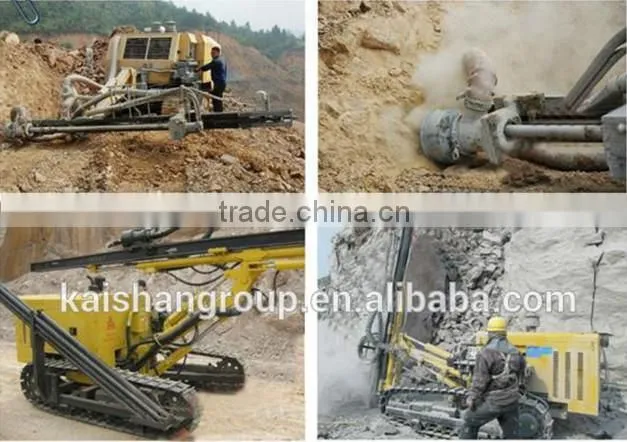

Working of KC120 Integrated DTH mobile drilling rig,Integrated high pressure DTH mobile drilling rig,crawler drill rig
We also provide other Mining operations.

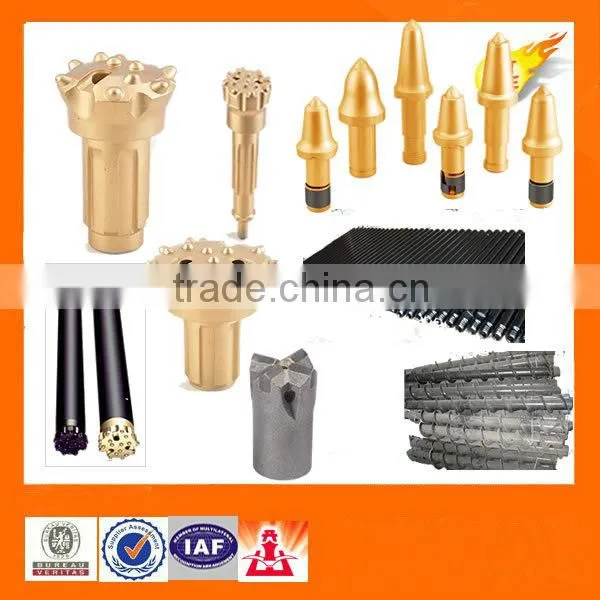

Spare parts supermarket
There are different kinds of packing depend on what you need.
KC120 Integrated DTH mobile drilling rig,Integrated high pressure DTH mobile drilling rig,crawler drill rig
Why choose us?
1), 100% spare parts can be supplied.
We can supply all spare parts: for air compressor, we can supply air filter, oil filter, oil core, belt and so on. for drilling rig, we can supply drill bit, drill rod, dth hammer, motor, joint etc, diesel engine parts. (Low Pressure, Middle Pressure, High Pressure)
2), We are the public company,all the products can ensure the quality.
we are the Public company,the group have several sist of the spare parts we are all produce ourselves,so we can control the quality,also the significant cost advantage.
3), Training is Free to every customer. Wherever you need us, for installation, maintainance, or proper use of our company machines, we will be right there for you. In addition, we provided one year warrantee to make sure your machine runs consistently.
4), We will recommend a suitable type for you and send you a best quotation.
A: What is the working pressure ( Mpa, Bar, PSI)?
B: What is the volume flow ( m3/min, CFM)?
C: What is the volume flow ( m3/min, CFM)?
D: What is the Power supply ( KW, HP)?
How to place an order:
1), Send inquiry
2), We will contact to you
3), Tell us your require model quantity or ask us other question you need to know
4), Send you the invoice
5), Wait for your deposit
6), Prepare your products, pack your products, delivery
7), Send you document for custom
8), After sale service
Kaishan group is a state-level large scale enterprise in China, which has been listed among the five industries of Zhejiang Provincial government, the 958 Technology Catching-up Plan and the key enterprises by Zhejiang provincial government. The group is the civilized enterprise of provincial level and contract abiding and trustworthy enterprise of state level.
Currently, Kaishan group has 18 subordinate companies with over 4100 employees. It covers an area of over 430,000 m2 with the total building complex area over 230,000 m2 and the total assets of the group amounts to over 1.5 billion.
Kaishan group has a sophisticated national-wide retail network supported by the high-quality customer service system. The nine major series of Kaishan product spread from rock drilling unit, screw air compressor to excavator, crawler drill etc, and altogether 18 categories with over 800 individual products.
By far, Kaishan group is the largest rock drill manufacturer in the world, and the largest air compressor manufacturer in China. Exports are shipped to over 20 different nations and regions such as United States, Germany, Japan, South Korea, Russia, African and Latin American countries.
