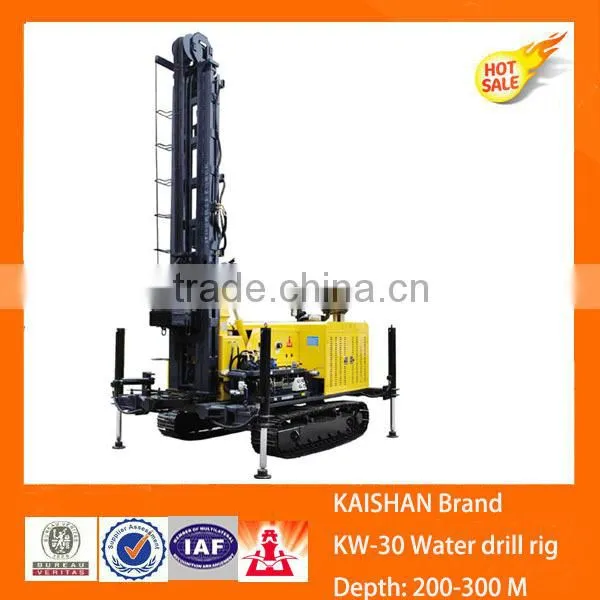

deep water well drill rig for 300m depth
1.Working pressure:10.5-24.6bar
2.Recommend compressor:LGCY-33/25
3.Engine model: YC6B150Z-T21
4.One year warranty
5.ISO,CCC,CE.GS Certifications
Range of application
KW30 series water well drilling rig is a light, high efficiency, multifunction hewn hole
drilling equipment, it is
widely used in industrial and agricultural water conservancy projects,such as drilling wells, testing wells or geothermal heating. This drilling rig can work in different strata, the hole diameter can up to 300mm.
Advantage
1.Safe and stable traveling system
2.Centralized operating system of Mobile Drilling Rig for Sale
3.Powerful feeding and rotating system of Mobile Drilling Rig for Sale
4.Easy operation and high efficiency as the hydraulic feeding be taken
5.As the ball type chuck and the driving rod, it can complete no-stopping rotating while the spindle relift.
The pressure indicator of bottom hole can observe and control the well conditions easily.
6.Close levers, convenient to operate.
7.Compact size and light in weight are easy to set up and transport on working plains and mountain area.
KW30 type geothermal wells multi-function rig is after market research and equipment can be drilled 300 m borehole design.
KW30 Specification
Weight(Kg) |
9500 |
|
Dimension(mm) |
5200*2300*3200 |
|
Walking speed(Km/h) |
0~2.5 |
|
Power mode |
YC6B150Z-T21 |
|
Power |
110Kw/2100rpm |
|
Ground clearance(mm) |
280 |
|
Leg cylinder stroke (mm) |
1000 |
|
Impinger |
DHD360(380) |
|
Climbing capacity(°) |
25 |
|
Hole depth(m) |
300 |
|
Working air pressure (MPa) |
1.05-2.46 |
|
Gas consumption(m3/min) |
16-40 |
|
Drill diameter(mm) |
φ89- φ102 |
|
Dill depth(mm) |
3000/4000 |
|
Hole diameter(mm) |
φ168-300 |
|
cylinder stroke (mm) |
2400 |
|
Advancing force(N) |
50000 |
|
Lifting force(N) |
150000 |
|
Rotating speed(rpm) |
Slow |
43/52/69 |
Fast |
85/102/125 |
|
Rotary Torque(N·m) |
4000-8000 |
|
The matching KaiShan Air compressor: LGCY27/20/ LGCY32/25
Mode |
Capacity |
Working Pressure |
Diesel Engine |
Dimension |
|
LGCY-32/25 |
32 |
2.5 |
YC6K550 |
4700×2100×2850 |
Welcome to visit our factory and would like to start the cooperation with you in the near future.
National inspection-free with reliable quality and perfect after-sale service.one year warranty
