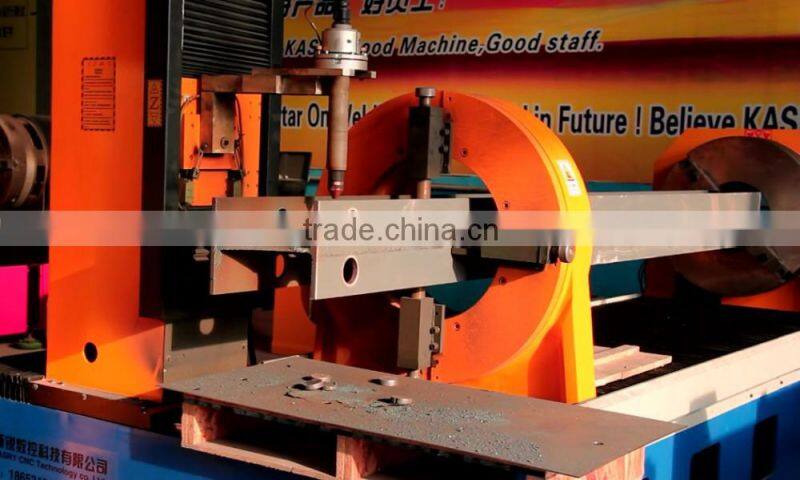

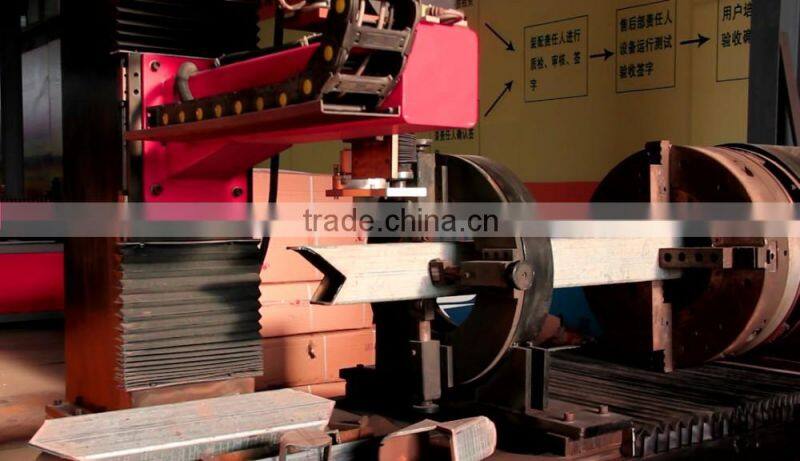

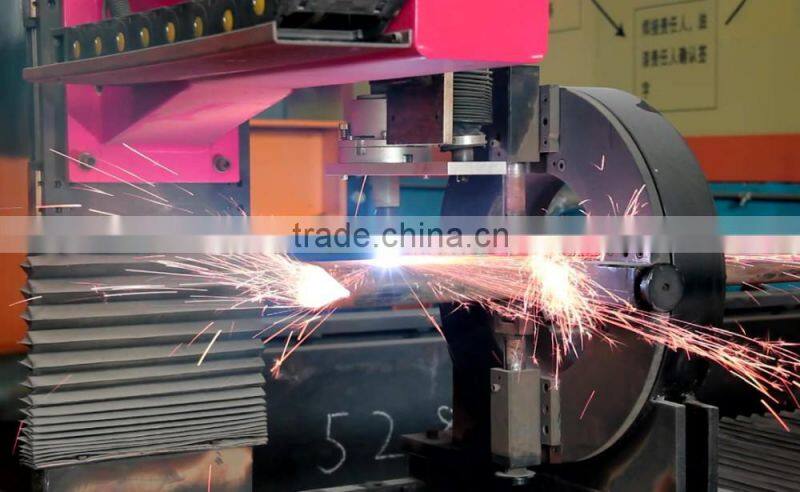

Square and Rectangular Tube Cnc Plasma Cutting Machine

square and rectangular tube cnc plasma cutting machine

1

model

FG-4 series

FG-5series

FG-6 series

2

Effective cutting length

4-12 m or as required

3

Effective lifting stroke

200mm or as required

4

wall thickness

Oxy-fuel:6-60 mm;
plasma:upon actual plasma source

5

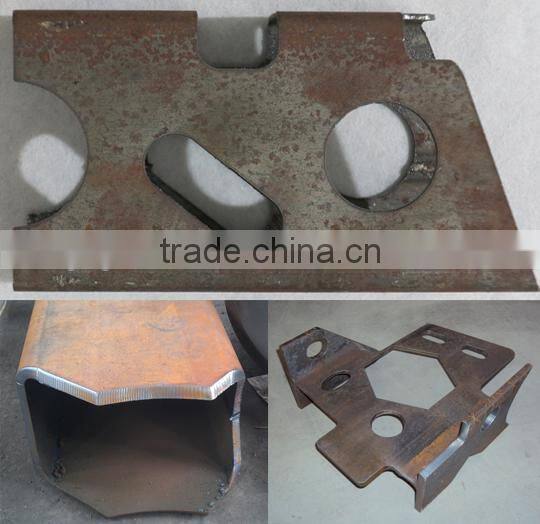

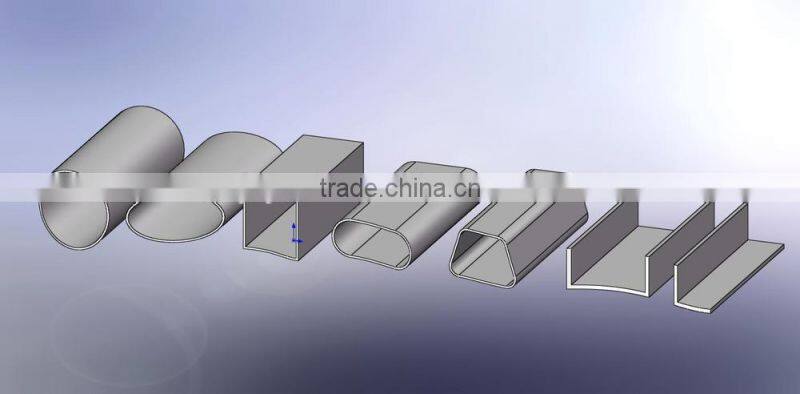

Applicable material

Square tube,rectangular tube,round pipe,etc

6

Cutting mode

Plasma cutting,oxy-fuel cutting

7

Idle running speed

max.8 m/min

8

Cutting speed

10~6000 mm/min

9

Number of axis

4 axle

5 axle

6 axle

10

Max. Axial swing angle of torch

N/A

α=±60°

11

Max. radial swing angle of Torch

N/A

β=±65°

12

accuracy

Cutting accuracy

±1.5 mm

Repositioning Accuracy

≤±0.2 mm/1000mm

13

Supported Drawing software

SolidWorks, AutoCad

14

Clamping type

chuck

15

Loading/uploading

manual

16

Control system&software features

Windows interface;
3D real time display;
Quick file view and loading;
Integrated simulating and actual processing
Real time tracking of cuting path;
Real time adjusting of cuting speed;
Back-front moving and recovering of cutting path;
Real time feeback and testing of IO.
