Programmable Led Cross Sign

Programmable Led Cross Sign thumbnail-1
Programmable Led Cross Sign photo-1
US$ 100 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Genilight
Model Number:
SC 520*520
Contact Supplier Request Quote Chat Now
Genilight Optoelectronic Technology Co., Ltd. (Xiamen)
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Genilight
Model Number SC 520*520
Usage Outdoor
Tube Chip Color Other
Display Function Graphics
Pixels 10mm
Screen Dimension 520*520
Product Description

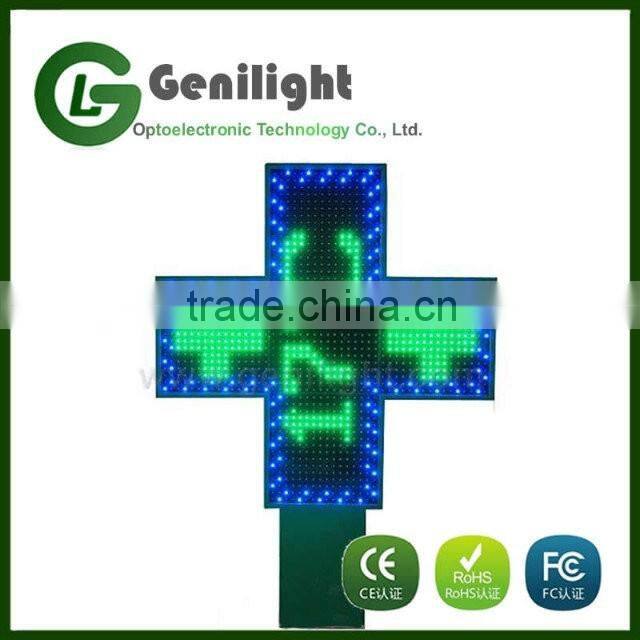

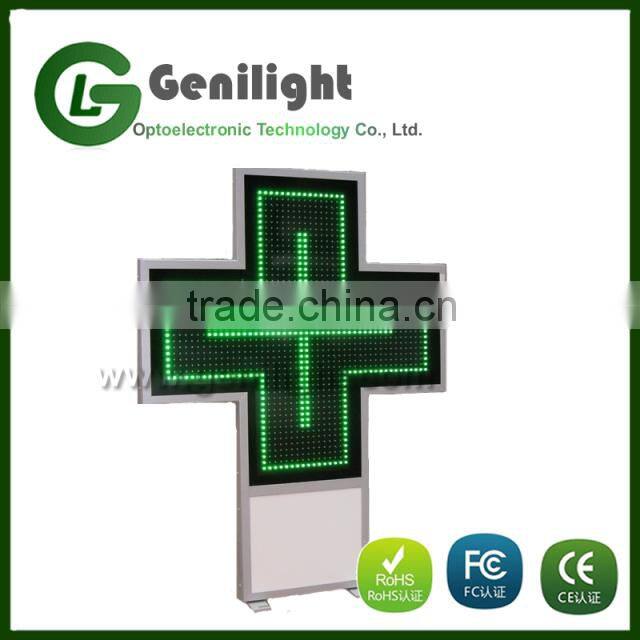

programmable led cross sign

The LED Pharmacy Cross Display is integrated with Optical, Electronic, Mechanical, and Computer technology, using novel and special LED display method, based on the principle of energy efficient, and fully utilize the display efficiency of LEDs.
Specifications
Model
SC 520×520
Pixel pitch
10mm
Pixel configuration
red/green/blue
Display Pixels
--- / 2560 dots
Brightness
≥6000CD
IP grade
IP65
Max. Power Cons.
--- / 115W
 LED chip size
red:9mil,green/blue/amber/white:12mil
 View Angle
H:120°(+60/-60),V:60°(+30/-30)
Viewing Distance
≥20m
Input voltage (AC)
110V~240V
Input power frequency (Hz)
50HZ~60HZ
 Control Mode
Asynchronous
 Drive Mode
1/4 scan constant current (1200×1200 is static scan)
Communication Mode
RS232,RF Wireless, WIFI(Optional)---The default configuration(RF Wireless)
 Control distance
RS232:<100m,RF Wireless:<800m
Display content
Animation/Graphics/Word/Time/Temperature
 Languages
English, French, Spanish ,Greek,Russian and Italian
Operating system
Windows (2000/XP/Vista/Win7)
 Frame Material
Steel(cold rolled iron) frame.500*500,800*800,1000*1000 can do aluminum frame
 Working Temperature(°C)
45~+65(for working)
Working Humidity
10%~95%RH
 Life span
100,000 hours
Certificate
CE-EMC,CE-LVD,ROHS
Warranty
1 year
Min.Order Quantity
1/pieces
Model Description
SC 520×520

(Two sides)
SC 800×800

(One or two sides)
SC 1000×1000

(One or two sides)
SC 1024×1024

(Two sides)
Pixel pitch
10mm
16mm
20mm
16mm
Pixel configuration
One led (red/green/blue)
One led (red/green/blue)
One led (red/green/blue)
One led (red/green/blue)
Display Pixels (one/two sides)
--- / 2560 dots
1280 / 2560 dots
1280 / 2560 dots
---/ 6144 dots
Brightness
≥6000CD
≥6000CD
≥6000CD
≥6000CD
IP grade
IP65
IP65
IP65
IP65
Max. Power Cons.
--- / 115W
58 / 115W
58 / 115W
--- / 273W
Cabinet Size(cm)
--- / 89×54×10
82×82×10 / 118×82×10
101×101×10 / 137×101×10
--- / 144×108×10
Packing Meas.(cm)
--- / 95×61×24
91×91×19 / 125×89×24
110×110×19 / 144×107×24
--- / 152×117×24
Net Weight(kg)
--- / 15
16 / 26
25 / 38
--- / 48
Gross Weight (kg)
--- / 28
31 / 43
45 / 60
--- / 85
Detailed Images

Application:

 led cross display is a very effective communication and advertising tool, which can display variable messages indoor or outdoor to highlight your pharmacy in the city and impress the potential clients. Smart users know how to make full use of their Cross in order to get the best advertising solution for their pharmacies.

Packing & Delivery

Packaging Details: carton box
Delivery Detail: 7-15days, please check with us

Tips

1.OEM is available.
2.Our all produces are with 1-3 years warranty.
3.Our trademessage is 24 hours on line.
4.we will reply your email asap .

Our Company

Genilight Optoelectronic Technology Co., Ltd

Genilight Optoelectronic Technology Co., Ltd. have a strong R&D staff who are professional in the areas of LED application,electronics, illu mination, structure, LED special power supply, technical design and so on. With industrious hardworking, we have developed super high brightness LED with low degradation and launched many series of LED lighting products, including Series universal for both Indoor and Outdoor application, Series for led fluorescent light, Series for led high power spotlight, Series for led bulb, Series for led sign, Series for led strip,Series for led modules etc.

Certification


FAQ

1. What computer operating system dose the control software support?

  It supports WinXP,Win7 and Vista.
2. Is the product safe?
Yes ,output is 12V voltage is Safe to touch .
3. Do you have any certification for the products?
Yes ,our products and adapter are with CE,Rohs certification.
4.Can I use the product right after receiving it?
Yes, yo can .We will offer everything needed in the shipping package, it is ready to use.
5.What payment are you accept?
we accept payment method: T/T ,Western Union, Money Gram,Paypal,etc.
