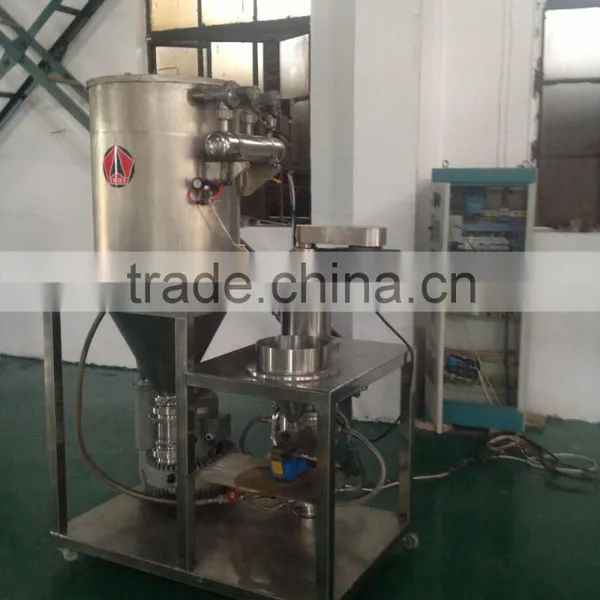

jet milling machine classifier micronizer powder mill
Working principle:
when material into the crushing chamber through screw feeder, there will be a number of relatively arranged nozzle outward high-speed airflow impact energy, and air collision is rapid expansion of fluidized bed suspension boiling produce, friction pulverize materials. mixed powder in the negative pressure airflow driven through the top set turbine grading device, fine powder is forced through the grading device, and collect by the cyclone collector and bag dust collector , coarse powder will be back to the crushing cavity to crush via the gravity and centrifugal.
features of this air jet mill:
1 with vertical grading device, between the product granularity of D97:8-150 microns adjustable, good granularity, narrow particle size distribution
3 closed crushed, little dust, low noise, clean production process
4 control system adopts the program control, simple operation
Technology data
model |
max feed size mm |
Discharging size mm |
Produce capacity Kg/h |
gas consumption m3/min |
air pressure Mpa |
installed power kw |
QLM03 |
<5 |
8-150 |
5-100 |
3 |
0.7-0.85 |
26-37 |
QLM06 |
<5 |
8-150 |
10-200 |
6 |
0.7-0.85 |
47-68 |
QLM10 |
<5 |
8-150 |
20-400 |
10 |
0.7-0.85 |
68-106 |
QLM20 |
<5 |
8-150 |
50-800 |
20 |
0.7-0.85 |
145-184 |
QLM40 |
<5 |
10-150 |
150-1500 |
40 |
0.7-0.85 |
276-310 |
QLM60 |
<5 |
10-150 |
300-2000 |
60 |
0.7-0.85 |
420-427 |
QLM80 |
<5 |
10-150 |
400-6000 |
80 |
0.7-0.85 |
520-600 |
1. Support
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
2. After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
