Fine Material Grinding Jet Mill/Jet Milling(Up to 2um)
How it works:
When materials enter the jet mill from the feed inlet port, the machine will start working under high pressure airflow and then materials will crash violently and break into pieces. After selected by pulverizer, fine one will get in dust collector while coarse one will return to jet mill for grinding again. When electromagnetic pulse strikes the filter-bag, fine one will come out from the discharge port.
Characteristics:
Eddy jet mill is an advanced equipment for ultrafinepowderprocessing, which is recently researched and developed by our company. After many years’ research and experiment, this product is characterized by the followings:
1, It can adopt the best parameters according to different materials’ characteristics.
Energy consumption is less than fluidized bed jet mill by over 10% and less than horizontal jet mill by over 30%.
2. It adopts special flow field simulation and calculation, which can effectively disperse agglomerates.
3. It can accurately control the size distribution of processing materials, even to the size distribution of d97=3~100um. Besides, it can keep high efficiency on processing products of different size distribution.
4. Special jet and classification flow technology are specially fit for the processing of adhensive materials, which can satisfy the demands on the processing of adhensive materials in market.
5. It is easy to clean as there will be no materials left in equipment.
Technical parameter:
specifications and models |
Max feed size
|
Discharging size (um) |
Production capacity(kg/h) |
Installed power (kw) |
air consumption (m3/min) |
JSDLV-36A |
<3 |
2-90um |
50-360 |
40.3-41 |
6 |
JSDLV-120A |
<3 |
2-90um |
300-1200 |
134-154 |
20 |
JSDLV-240A |
<3 |
2-90um |
600-2500 |
268-311 |
40 |
JSDLV-480A |
<3 |
2-90um |
1200-6000 |
520-750 |
80 |

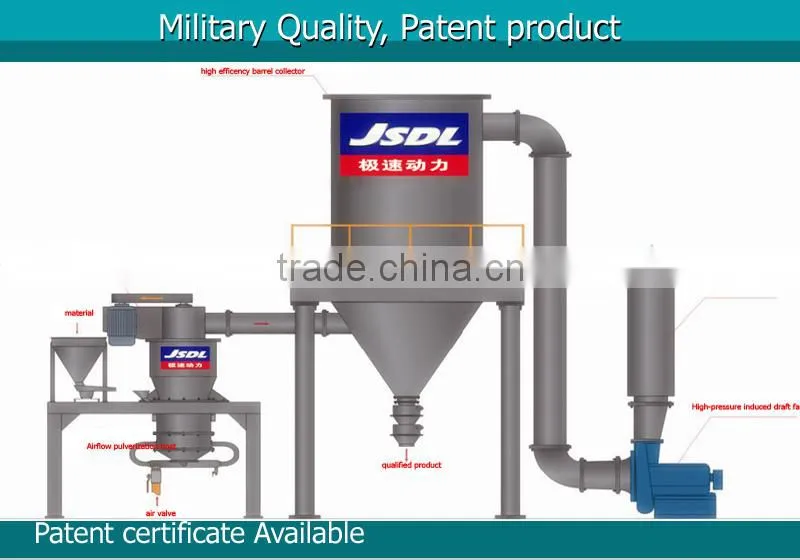

Sketch map:
Chengdu Our Trading Co.,Ltd is a trade and industry integrated company which established in 2008 with abundant exporting experience. With the company developed, we have 2 factories, one is located in Chengdu and another is in Mianyang.
Our main products are micronizer jet mill, micronizer impact mill, air classifier, inter gas protective equipmentetc.
Application of pulverator:
Processing materials in many fields, such as: health food raw material, herbal medicine, pesticide, cosmetic, chemical materials, mining materials, metallurgy, waste resource and scientific research project etc.
Our advantages:
1. Factory –located in Mianyang, Chinese people’s liberation army 63820,575 workshop.
2. Quality -powerful military aerospace strength, the machine can operate 29 days continuously without rest.
3. Engineer-our engineer are both air power ultra expert withoverall R&D strength and comprehensive competence, which can design the jet mill or redesign mill according customers’ requirements.
4. Service-we have professional sales team for pre-sales and after-sales services, also we will send engineer to your factory if you need.
We believe that our perfect products and excellent services will establish a win-win business relationship with you.
