Help CenterJSDL Patent Product Diamond Dedicated Grinder/pulverizing Mechanical Seal
Related Products
-
Ultrafine Jet Mills Grinder/air Micronizer With ClassifierUS$ 60,000 - 60,000MOQ: 1 Set -
JSDL Patent Product Synthetic Diamond Making MachineUS$ 50,000 - 110,000MOQ: 1 Set
-
JSDL Patent Product Diamond Core Cutting MachineUS$ 50,000 - 110,000MOQ: 1 Set
-
JSDL Patent Product Diamond of Micro Powder Mill Machine Fine Micronizer for Carbon PowderUS$ 50,000 - 110,000MOQ: 1 Set
-
QLM03 Model JSDL Series Micronizer Air Jet MillUS$ 10,000 - 10,000MOQ: 1 Set
Operating principal:
The machine’s dynamic adopts purified and compressed air, which sprays in a high speed to the smashing room through a special ultrasonic nozzle. The air can works highly speed with the material carried, thus, making the material cause a strong collision, friction and crop with each other and then smash the material completely and go into the collecting system finally. The smashed material goes up to classifier room. The particle size that meet requirement can pass the forcing impeller but the size that failed to meet requirement would go back to the smashing room and continuing to smash once again. The whole production is a continued totally-enclosed operation. There are no dust pollution and the air would be purified through filtering the contaminations.
The advantage of the machine:
- Mass yield, low energy-consumption and high efficiency of classifying.
- Particle size centralization: the machine adopts an original vertical impeller to classify. This stable classifying skill and the special enclosed measure effectively stop the coarse grain leakage, thus, there are all small particles in the end and all of these are of high centralization as well as of high precision.
- Rational structure: it can produce 1-6 particle sized productions at the same time according to customer’s requirement.
- Strong applicability: it can works with a closed circuit or opened circuit formations, such as the Air Mill, Machine Mill, Ball Mill, Raymond Mill and Vibrating mill and so on.
- High degree of automation: the impeller classifiers of all or different levels adopt electronic stepless frequency conversion. Not only electronic controlling will be achieved in the process of the automatic multi-part collecting dust, but improves machine’s stability to resist compression.
Technical parameters :
|
Model |
Max feed size |
Discharging size |
Production capability
|
Installed power |
Gas consumption
|
|
JSDL-JGS18 |
<1mm |
0-60um |
8-20kg/h |
5-7kw |
3m3/min |
|
JSDL-JGS18-1 |
<1mm |
0-60um |
8-20kg/h |
7-10.7kw |
3m3/min |
|
JSDL-JGS36 |
<1mm |
0-60um |
20-50kg/h |
7-10.5kw |
6m3/min |
|
JSDL-JGS36-1 |
<1mm |
0-60um |
20-50kg/h |
10.517kw |
6m3/min |

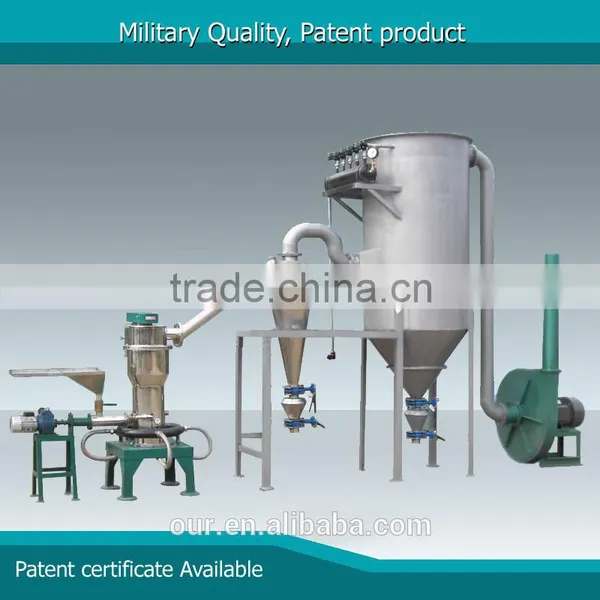

Main accessory show:
Chengdu Our Trading Co.,Ltd is a trade and industry integrated company which established in 2008 with abundant exporting experience. With the company developed, we have 2 factories, one is located in Chengdu and another is in Mianyang.
Our main products are micronizer jet mill, micronizer impact mill, air classifier, inter gas protective equipment etc.
Application of pulverator:
Processing materials in many fields, such as: health food raw material, herbal medicine, pesticide, cosmetic, chemical materials, mining materials, metallurgy, waste resource and scientific research project etc.
We believe that our perfect products and excellent services will establish a win-win business relationship with you.
Patent certificate:
SUPPORT
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Technological support
JSDL has been largely adopting new technologies, new techniques and high-tech equipments. And JSDL also has strict and effective quality control system.
JSDL insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.
Contact information:
Catherine Wang
Tel:0086-28-61318297
Fax:0086-28-61318297
