Help CenterComplete Roller Skates Kits
Related Products

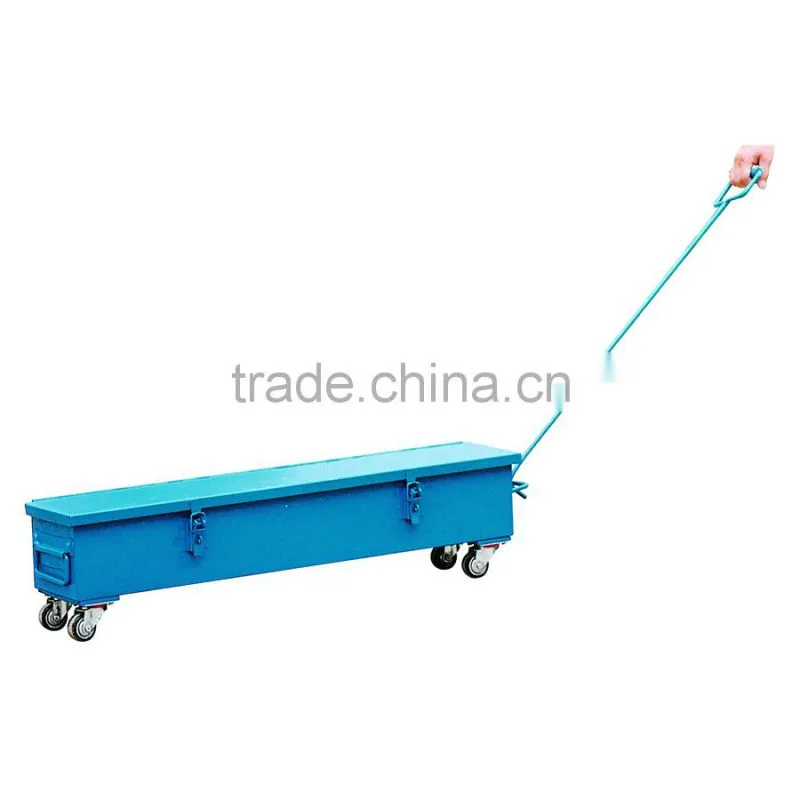

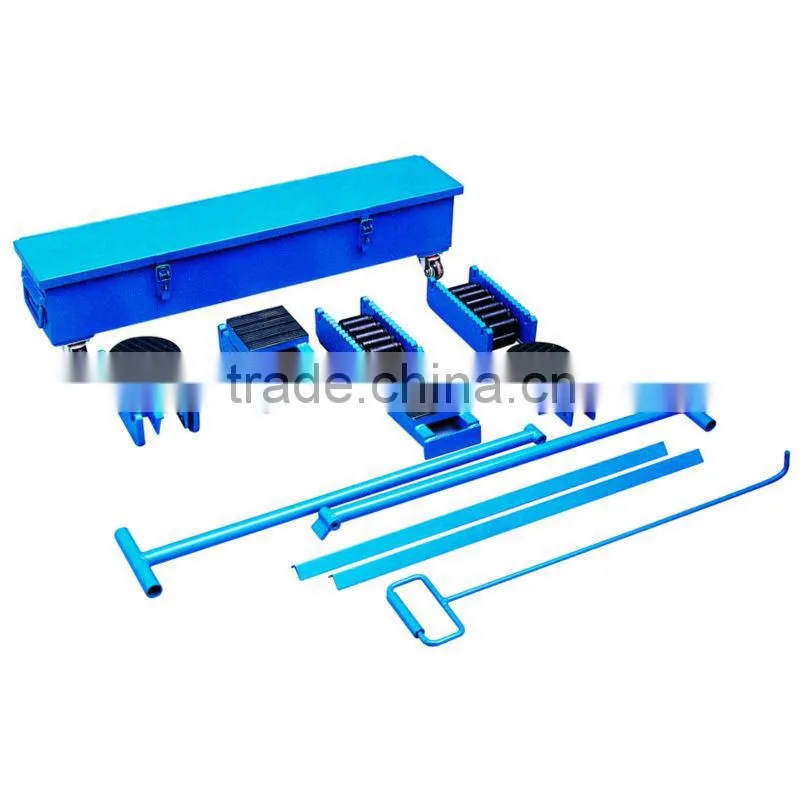

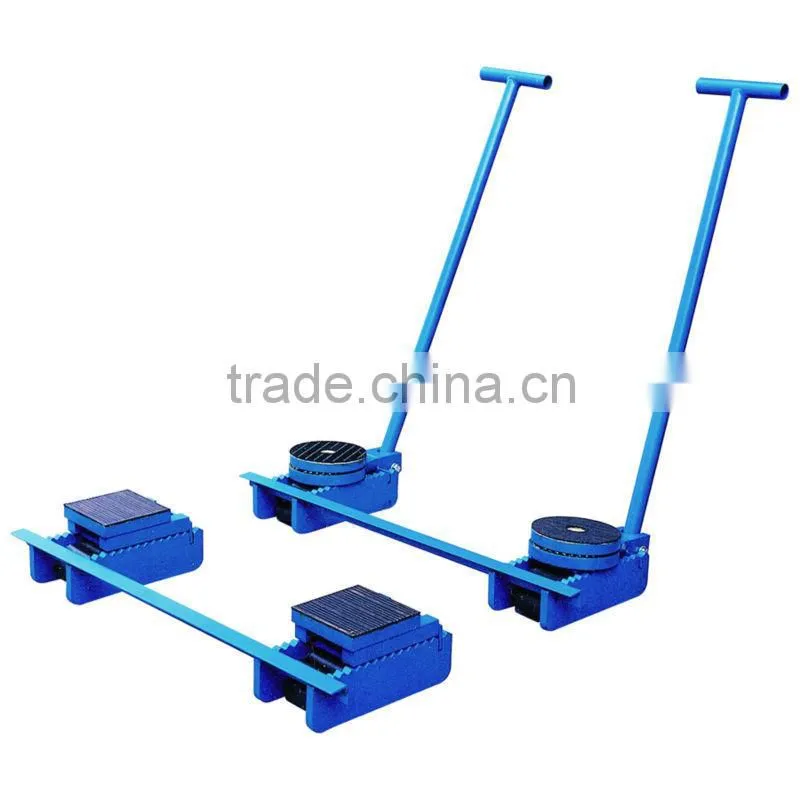

Including 4 roller skates, 2 turntables, 2 packing plates, 2 steering handles, 2 link-up bars, one draw bar, one metal box.
For short, variable transportation distances.

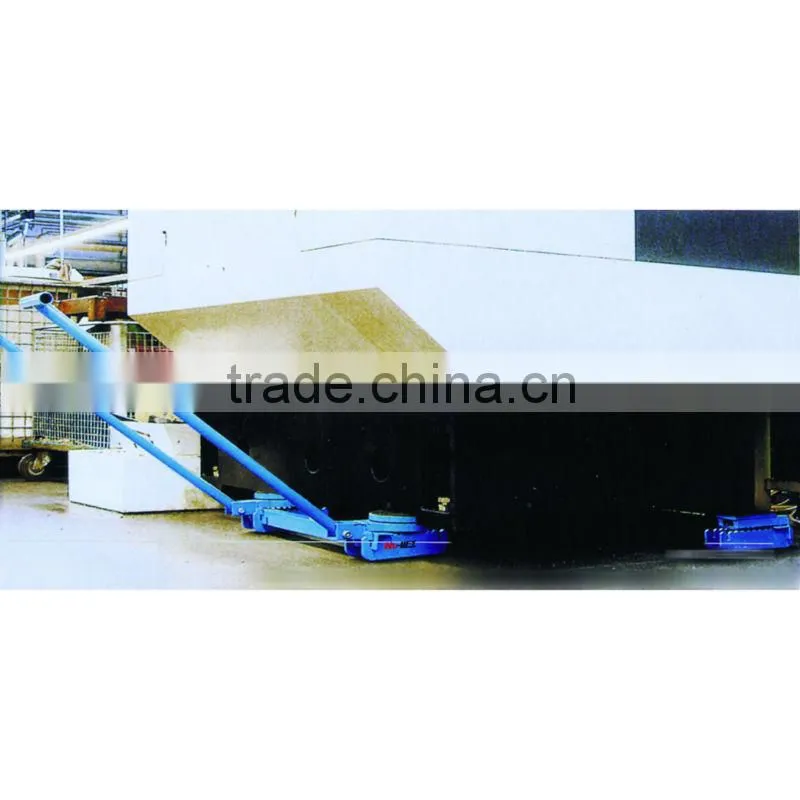

For installation works and movementof heavy loads.
The steering handle give you precise control making it easy to manoeuvre large machinery or into tight areas.
Moving speed no exceding 5m/min.
Minimum turning circle is 3m.
IMPORTANT!
All mamximun carrying capacities are based for use on a steel surface ,Which withstands the pressure of the chain-roller ,For safety ,the carringcapacities in complete sets are calculated so that 2 Roller Skates could support the full load on uneven surfaces
The track surface is important for the safe transportation of the load ,not the carrying capacity the Roller Skate ,Tiles are unsuitable .Movement on tamac and concrete is restricted .In these cases it is recommended to put a stell plate of a minimum of 10mm thickness undemeath
Dus to the little effort required to overcome the rolling resistance(4-7%of the totall load)precautionary measures must be taken for use on inclined surfaces
| Model | SK20 |
SK30 |
SK60 |
| Capacity (tonne) | 20 |
30 |
60 |
| Length Support (mm) | 120 |
120 |
130 |
| Width Support (mm) | 120 |
120 |
130 |
| Total Height (mm) | 108 |
117 |
140 |
| Rollers Dia. (mm) | 18 |
24 |
30 |
| Swivel Top (mm) | 130 |
130 |
150 |
| Net Weight of Kit (kg) | 50 |
58 |
92 |
