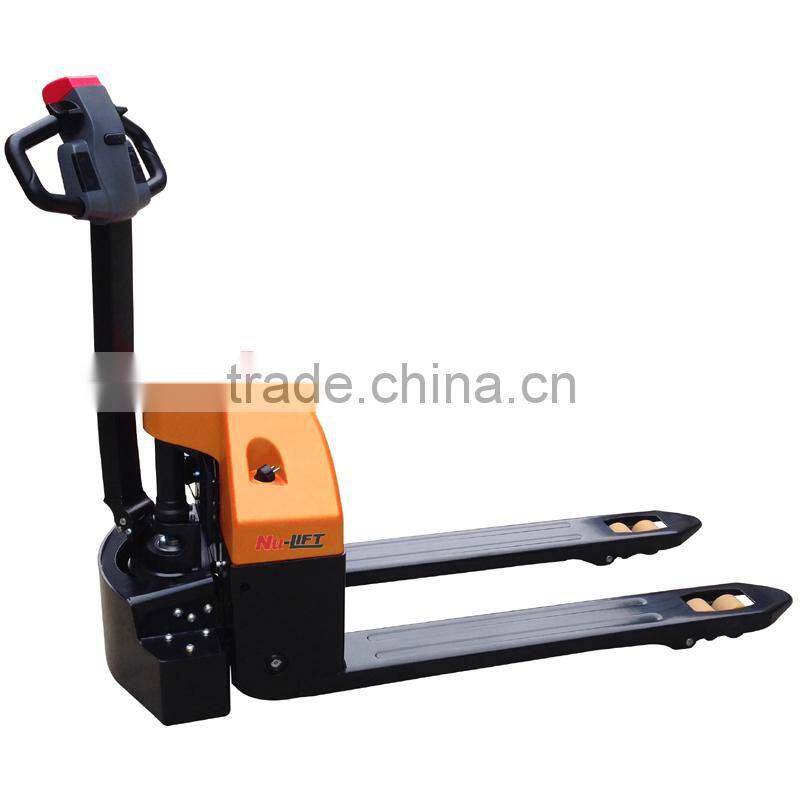

Power Pallet Truck 1.5Tonne Capacity

Name: Power Pallet Truck 1.5Tonne Capacity
Brand: NU-LIFT
SKU: 130096719
Availability: InStock

US$ 1,400 - 1,800 MOQ: 1 Piece

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

NU-LIFT

Model Number:

EPT15

Nu-Lift Equipment Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name NU-LIFT

Model Number EPT15

Lift Drive / Actuation Electric Motor

Light Weight, Great Capacity, Great Passingablility: Light weight & compact size create excellent manuverability & passingablility.

1500KG Capacity handles most applications.

Anti-vibration Technology for Batteries: Special anti-vibration technology extends maintenance-free battery life.

Cables: Robot cables with excellent twist resistance offers longer life span.

Charger: Charger with temperature indicator protects battery.

Operation: Ergonomically-designed tiller head helps increase efficiency; Internal Charger for Easy Charging.

Safety: Handy Emergency Disconnect button & Durable Driving Unit ensure safety under any situation.

Serviceability: Assembly Components, Easy for Diagnosis and Replacing.

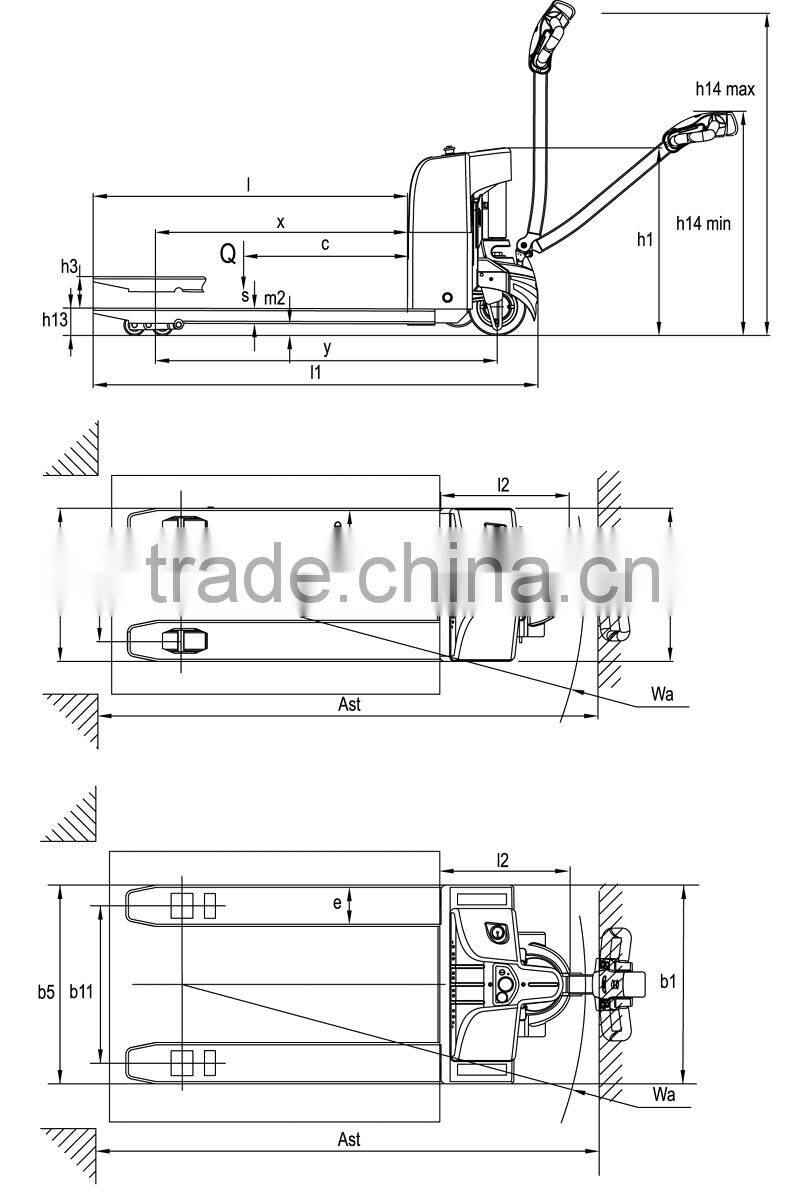

Model designation			EPT15
Drive unit			Battery
Operator type			pedestrian
rated capacity	Q	kg	1500
Load center distance	c	mm	600
Load distance	x	mm	889/946
Wheelbase	y	mm	1268/1231
Service weight		kg	205
Axle loading, laden front/ rear		kg	550/1155
Axle loading, unladen front/ rear		kg	180/25
Tyre type			PU/ PU
Tyre size, drive wheels			Dia.210x70
Tyre size, load wheels			2x Dia.80x60(Dia.74x88)
Wheels, number front/ rear (x=drive wheels)			1x /4(1x /2)
Track width,, rear	b₁₁	mm	410(535)
Lift height	h₃	mm	115
Height drawbar in driving position min./max.	h₁₄	mm	820/1170
Lowered height	h₁₃	mm	85(75)
Overall length	l₁	mm	1632
Length to face of forks	l₂	mm	482
Overall width	b₁/ b₂	mm	560(685)
Fork dimensions	s/ e/ l	mm	50/150/1150
Distance between fork-arms	b₅	mm	560(685)
Ground clearance, center of wheelbase	m₂	mm	35
Aisle width for pallets 1000 × 1200 crossways	Ast	mm	1739
Aisle width for pallets 800 × 1200 crossways	Ast	mm	1939
turning radius	Wa	mm	1485
Travel speed, laden/ unladen	km/ h	km/h	4/4.5
Lifting speed, laden/ unladen		m/ s	0.026/0.031
Lowering speed, laden/ unladen		m/ s	0.029/0.021
Max. gradeability, laden/unladen			2/6
Service brake			Electromagnetic
Drive motor rating S2 60 min		kW	0.65
Lift motor rating at S3 15%		kW	0.84
Battery voltage/nominal capacity K5			24/72
Battery weight		kg	25.5x2
Type of drive control			DC
Sound pressure level at the driver’s ear			74
