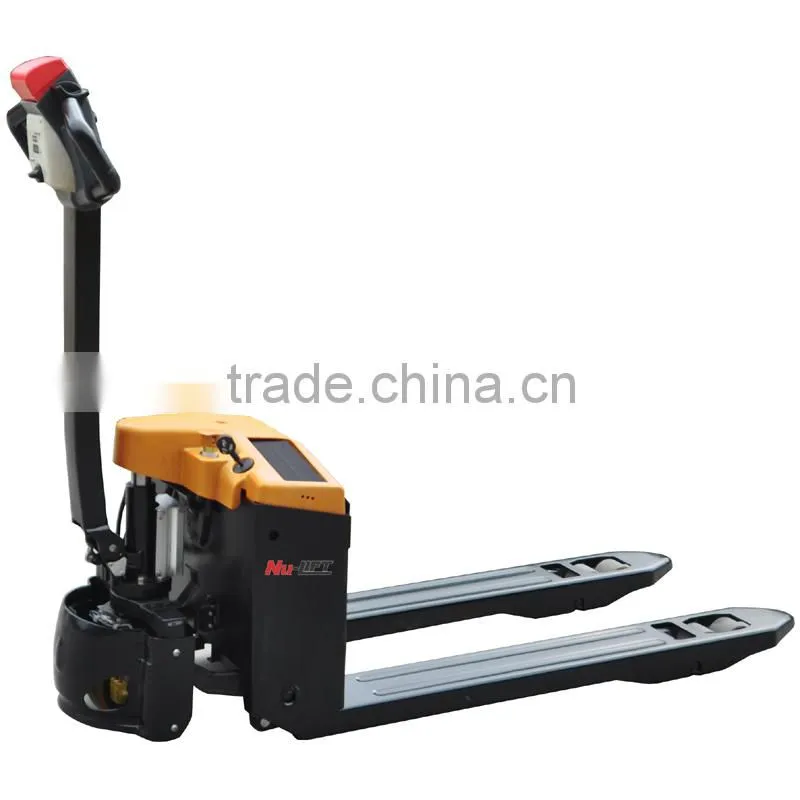

Full Electric Pallet Truck 1.5Tonne Capacity

Full Electric Pallet Truck 1.5Tonne Capacity thumbnail-1
Full Electric Pallet Truck 1.5Tonne Capacity thumbnail-2
Full Electric Pallet Truck 1.5Tonne Capacity photo-1
Full Electric Pallet Truck 1.5Tonne Capacity photo-2
US$ 1,200 - 1,500 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
NU-LIFT
Model Number:
EPT15II
Contact Supplier Request Quote Chat Now
Nu-Lift Equipment Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name NU-LIFT
Model Number EPT15II
Lift Drive / Actuation Electric Motor

Perfect Upgrade of Reliability and Easy-maintenance.

New Design: Ergonomic tiller bounded with key switch, BDI and troubleshooting indicator enhances easy and accurate operation.

External Control System: New designed external control system not only protects controller in place but also provides easy access for maintenance.

Emergency Switch: Upgraded emergency switch ensures safety.

Optimized Harness Layout: Optimized wire harness layout lowers twist failure rate.

Cover for Driving Wheel: Strong cover for driving wheel ensures the safety of the operator.

Front Detachable Battery Cover: Innovative Design, Easy for Battery Replacement.

Charger: Upper-installed Charger, Better Heat-Exhausting, Higher Charging Efficiency.

Full Electric Pallet Truck 1.5Tonne Capacity

Full Electric Pallet Truck 1.5Tonne Capacity

Full Electric Pallet Truck 1.5Tonne Capacity

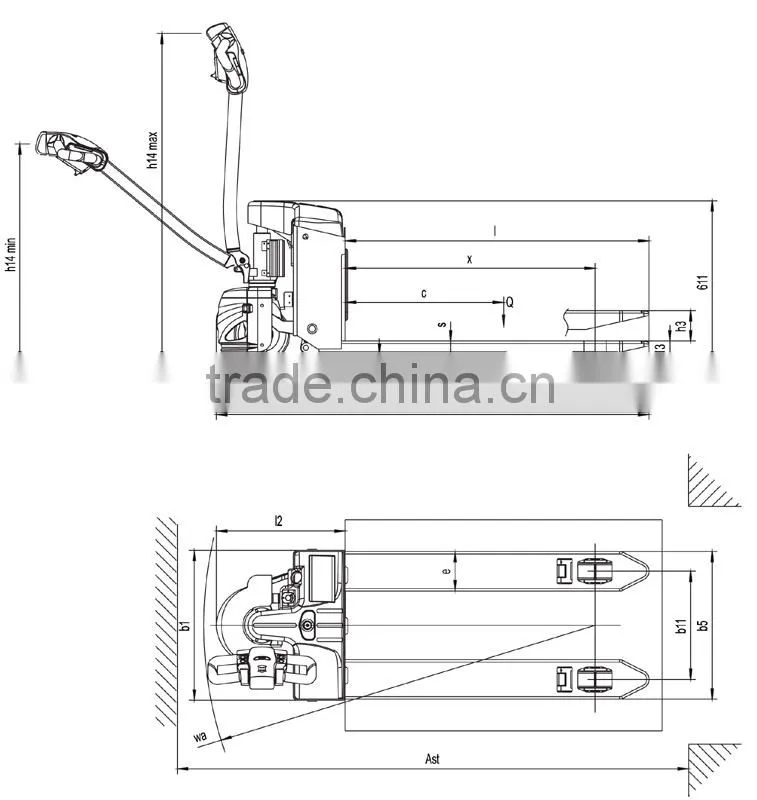

Model designation EPT15II
Drive unit                                          Electrics
Operator type pedestrian
Rated capacity Q kg 1500
Load center distance c mm 600
Load distance x mm 889/946
Wheelbase y mm 1261/1205
Service weight (include battery) kg 195
Axle loading, laden driving side/loading side kg 565/1130
Axle loading, unladen driving side/loading side kg 155/40
Tyre type driving wheels/loading wheels PU/ PU
Tyre size, driving wheels(diameter×width) mm Dia.210x70
Tyre size, loading wheels(diameter×width) mm 2x Dia.78x60(Dia.78x88)
Wheels, number driving, caster/loading (x=drive wheels) mm 1x /4(1x /2)
Track width, rear, loading side b11 mm 410(535)
Lift height h3 mm 115
Height drawbar in driving position min./max. h14 mm 790/1225
Lowered height h13 mm 80
Overall length l1 mm 1638
Length to face of forks l2 mm 488
Overall width b1/ b2 mm 568(685)
Fork dimensions s/ e/ l mm 50/150/1150
Distance between fork-arms b5 mm 560(685)
Ground clearance, center of wheelbase m2 mm 30
Aisle width for pallets 1000 × 1200 crossways Ast mm 1739
Aisle width for pallets 800 × 1200 lengthways Ast mm 1939
Turning radius Wa mm 1485
Travel speed, laden/ unladen km/ h km/h 4/4.5
Lifting speed, laden/ unladen m/ s 0.029/0.038
Lowering speed, laden/ unladen m/ s 0.046/0.033
Max. gradeability, laden/unladen 2/6
Service brake type Electromagnetic
Drive motor rating S2 60 min kW 0.65
Lift motor rating at S3 15% kW 0.84
Battery voltage/nominal capacity K20 24/65
Battery weight kg 22.5x2
Type of drive control DC
Steering type Mechanical
Sound pressure level at the driver’s ear 74
