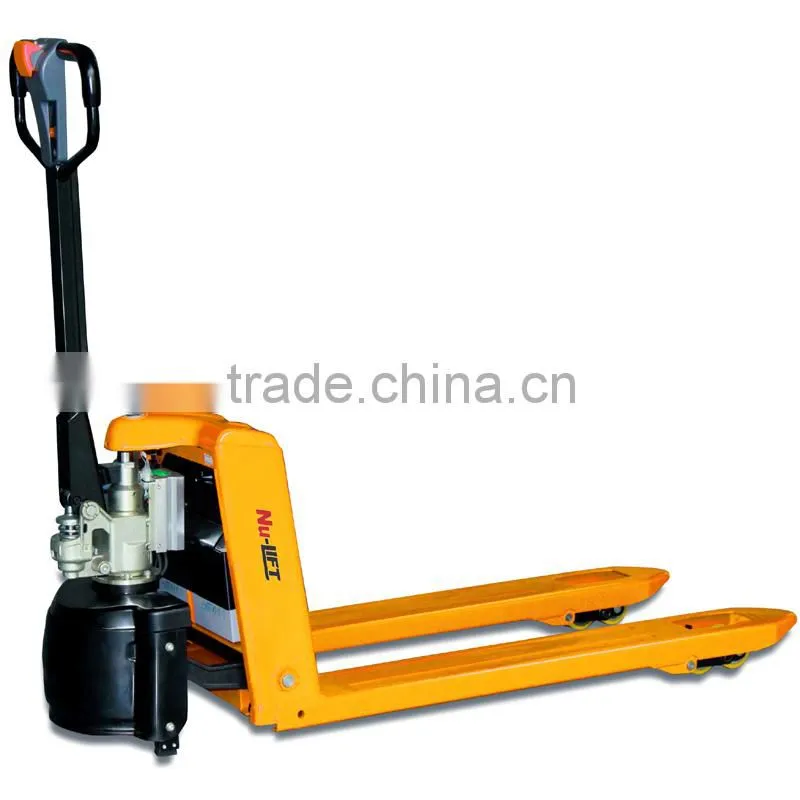

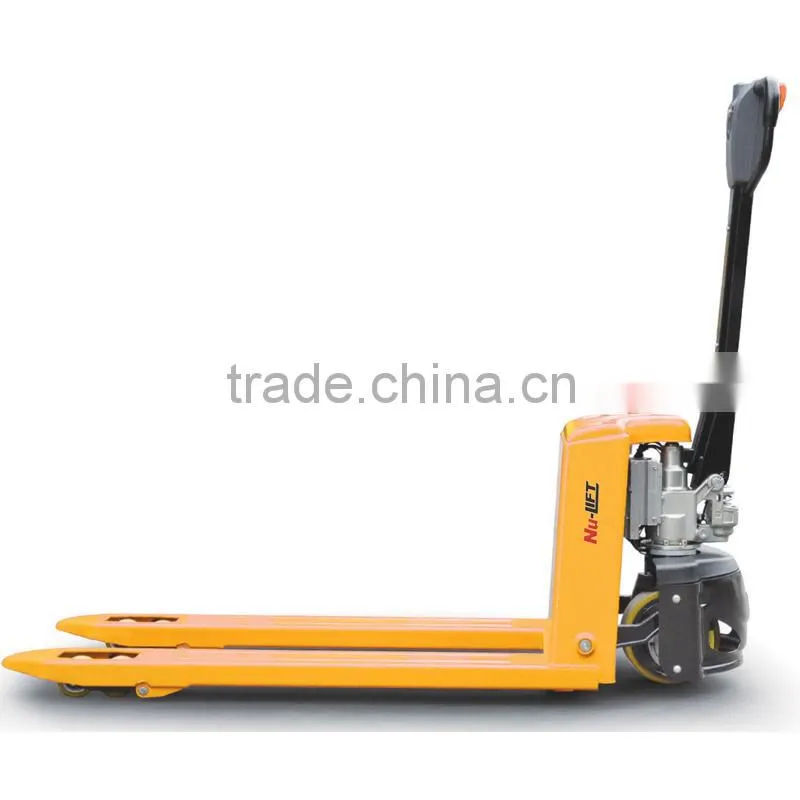

Semi-electric Pallet Truck 1.5Tonne Capacity

FOB Price

USD $800 - $1,200 / Piece

2 Pieces(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	NU-LIFT	Model Number:	SPT15
Lift Drive / Actuation:	Electric Motor

Product Description

Light Weight, Great Capacity, Excellent Passingability: 1500KG capacity, light weight and compact size equivalent to hand pallet truck.

New Design: New integrated Control Head Design, Easy & Comfortable Operation.

External Control System: New designed external control system not only protects controller in place but also provides easy access for maintenance.

Operation: Ergonomically-designed tiller head helps increase efficiency; Internal Charger for Easy Charging.

Safety: Handy Emergency Disconnect Button & Durable Driving Unit ensure safety under any situation.

Maintenance: Assembly Components, Easy for Diagnosis and Replacing.

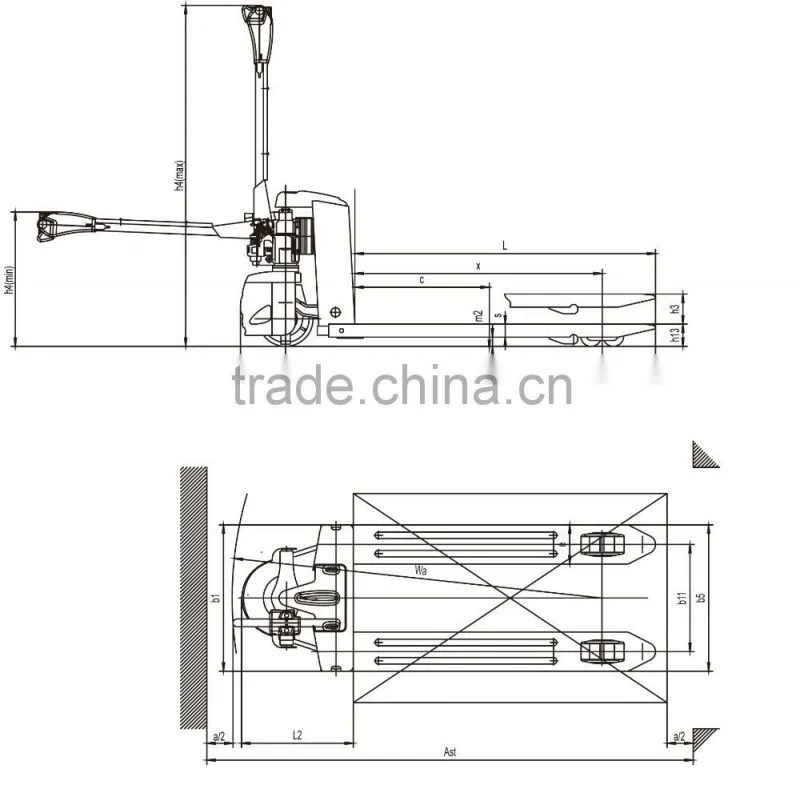

Distinguishing mark	Model designation			SPT15
	Drive unit			Electrics
	Operator type			pedestrian
	rated capacity	Q	kg	1500
	Load center distance	c	mm	600
	Load distance	x	mm	883/946
	Wheelbase	y	mm	1152/1215
Weight	Service weight(include battery)		kg	140
	Axle loading, laden driving side/loading side		kg	540/1100
	Axle loading, unladen driving side/loading side		kg	110/30
Types,Classis	Tyre type driving wheels/loading wheels			PU/PU
	*Tyre size, driving wheels(diameterwidth)**		mm	φ210*70
	*Tyre size, loading wheels(diameterwidth)**		mm	2φ8060(φ74*88)
	*Tyre size, caster wheels(diameterwidth)**		mm
	Wheels, number driving,caster/loading(x=drivie wheels)		mm	1x/4
	Track width, front, driving side	b₁₀	mm
	Track width, rear, loading side	b₁₁	mm	410(535)
Dimensions	Lift height	h₃	mm	115
	Height drawar in driving position min./max.	h₁₄	mm	715/1280
	Lowered height	h₁₃	mm	85(75)
	Overall length	l₁	mm	1588
	Length to face of forks	l₂	mm	438
	Overall width	b₁/b₂	mm	560(685)
	Fork dimensions	s/e/l	mm	50/150/1150
	Distance between fork-arms	b₅	mm	560/685
	Ground clearance, center of wheelbase	m₂	mm	35
	*Aisle width for pallets 10001200 crossways**	Ast	mm	1669
	*Aisle width for pallets 8001200 lengthways**	Ast	mm	1869
	Turning radius	Wa	mm	1415
Performance data	Travel speed, laden/unladen	km/h	km/h	3.5/4
	Lifting speed, laden/unladen		m/s	10mm/time
	Lowering speed, laden/unladen		m/s	Controlable
	Max.gradeability, laden/unladen			2/6
	Service brake type			Electromagnetic
Electric-engine	Drive motor rating S2 60 min		kW	0.65
	Lift motor rating at S3 15%		kW	Manual lifting
	The maximum allowed size battery		mm	185/125/190
	Battery voltage/nominal capacity K20			24/30
	Battery weight		kg	9.5*2
Addition data	Type of drive control			DC
	Steering type			Mechanical
	Sound pressure level at the driver's ear			74
