Paper Making Machine Paper Slitting Rewinding Machine

Paper Making Machine Paper Slitting Rewinding Machine thumbnail-1
Paper Making Machine Paper Slitting Rewinding Machine thumbnail-2
Paper Making Machine Paper Slitting Rewinding Machine thumbnail-3
Paper Making Machine Paper Slitting Rewinding Machine thumbnail-4
Paper Making Machine Paper Slitting Rewinding Machine photo-1
Paper Making Machine Paper Slitting Rewinding Machine photo-2
Paper Making Machine Paper Slitting Rewinding Machine photo-3
Paper Making Machine Paper Slitting Rewinding Machine photo-4
US$ 30,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Paper Core Machine
Processing Type:
Paper Slitting and Rewinding Machine
Contact Supplier Request Quote Chat Now
Jinan Radiance Machinery & Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Paper Core Machine
Processing Type Paper Slitting and Rewinding Machine
Place of Origin Shandong, China
Model Number ZWJK-2300
Voltage 380V
Power(W) 37KW
Dimension(L*W*H) 4130*5980*3200mm
Weight 16.5 t
Certification CE
Warranty 1 year
After-sales Service Provided Overseas service center available

PRODUCT DESCRIPTION

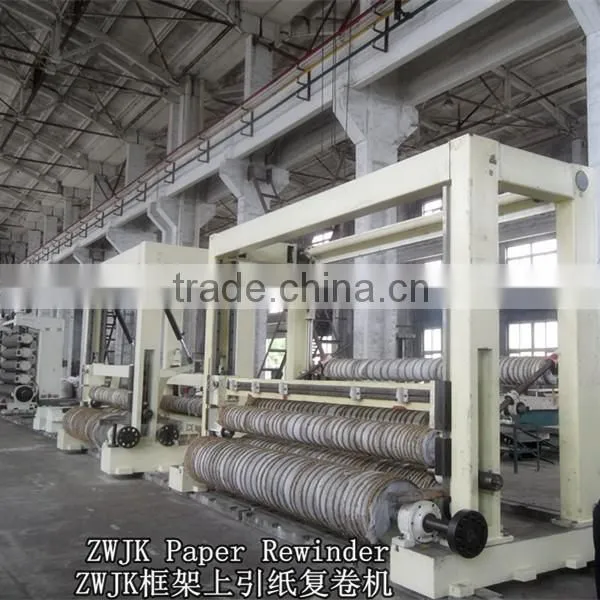

ZWJK Frame-type High-speed Upward Rewinder, is used for slitting the first-rolled original paper roll, rewinding it to the finished paper roll which comply with the width and tightness demand.



The machine has two type. Facing with the paper-out side, if the drive part is on the right side, then it is right-hand machine, vice versa. The customer can choose the type according to personal demand.





TECHNICAL DATA



1: net paper width: 2300mm



2: paper leading way: upward



3: GSM: 40-150 g/m²



4: original paper roll max dia: φ2000mm



5: paper roll max dia: φ1500mm



6:  designed working speed: 650 m/min



7: working speed: 600 m/min

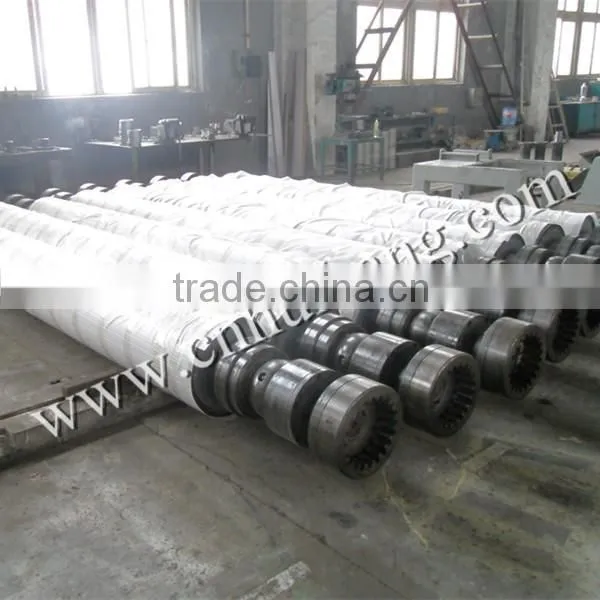

8: supporting roll dia: φ420mm  thickness 25mm



9: paper leading roll dia: φ240mm  thickness 16mm



10: paper unreeling pneumatic tyre brake

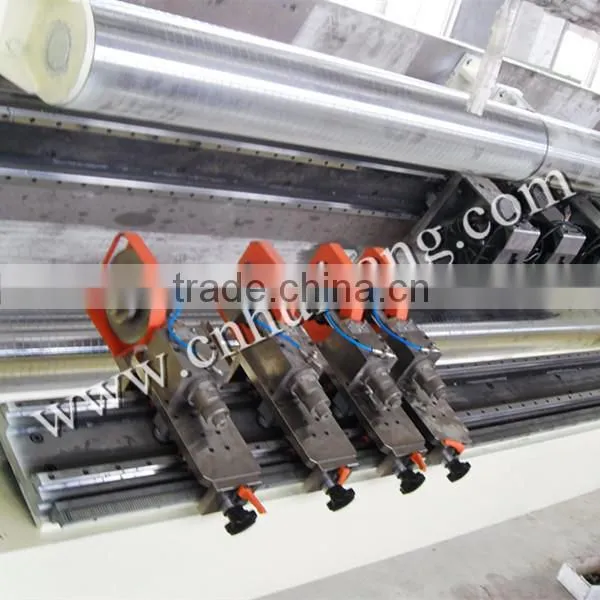

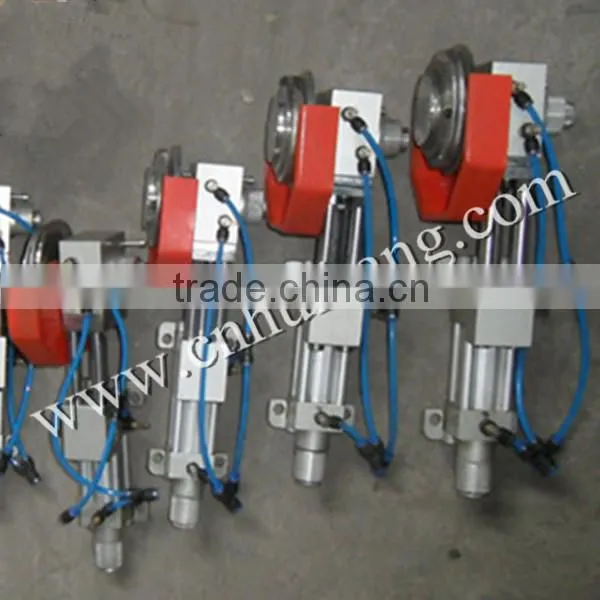

11: upper circular knife: φ150*φ90*2          4 sets



12: bottom circular knife: φ280*φ240*92    4 sets



13: gauge: 3480mm



14: motor power: 37KW  1set



15:brake YWZ300/45  1 set



16: reduction box type: ZD25



17: oil cylinder:

      Paper pressing roller oil cylinder: φ100*800=2 sets

     Paper pushing oil cylinder: φ80*380=2 sets



18: hydraulic station



19: dimension: 4130*5980*3200(mm)



20: weight: 16.5 t





Paper making machine paper slitting rewinding machine

Paper making machine paper slitting rewinding machinePaper making machine paper slitting rewinding machine
