5kg 10kgs gold silver copper IGBT induction melting furnace
- 500 Set / Sets per Month
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Induction Furnace | Usage: | Melting Furnace |
Place of Origin: | Henan, China | Brand Name: | Yongda | Model Number: | WZP-35 |
Voltage: | 320V-480V or 220V | Power(W): | 3-35KW | Dimension(L*W*H): | generator 590*330*450MM transformer 500*360*455MM |
Weight: | 78KGS | Certification: | ISO9001:2000 | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
induction melting furnace1. igbt system
2. 15kw,35kw,45kw melting furnace
3. small amount
4. gold,silver,copper etc.
5kg 10kgs gold silver copper IGBT induction melting furnace
1.Gold,silver,copper ,nickel,etc melting, we recommend you super audio induction melting furnace.Enery saving, low cost.
2.Steel ,iron melting,we recommend you medium frequency induciton melting furnace.
Shenqiu Yongda Company has over 20 years production and technical experience in induction heating fields. Welcome customers at home and abroad to contact us !

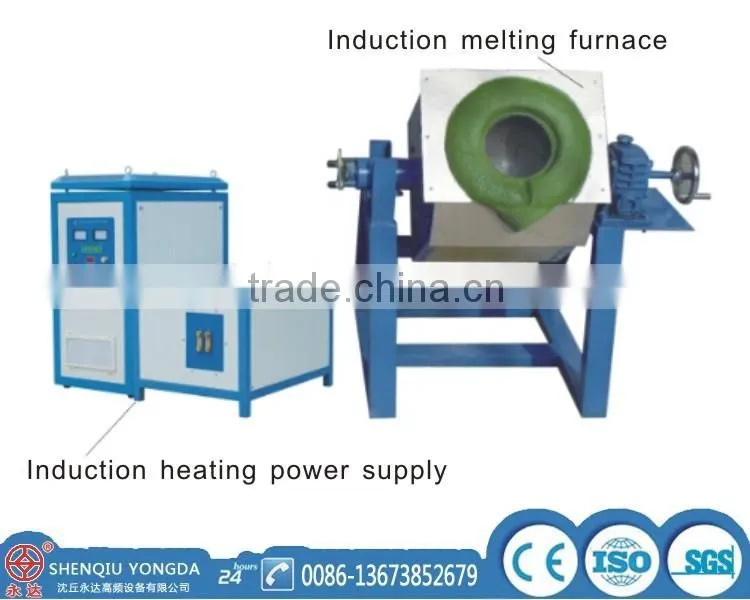

Mechanical overturned type induction melting furnace
1. Induction heating power supply
2. Inducton melting furnace or simple induction coils
Simple type igbt induction melting furnace , induction coils heating crucible
Main applications
Medium frequency induction melting furnace is used for melting steel, stainless steel,copper,aluminum ,gold and silver etc. other material.
Features of igbt induction melting furace
1. Yongda induction melting furnace has good electromagnetic stirring ,melting metal in favor of a uniform temperature and organizations ,in favor of scum and reduce inpurities.
2. Wide frequency range,from 1KHZ to 20KHZ,be considering the amount of melting,electromagnetic stirring,heating efficiency,noise at work and other factors to design induction coils and equipped with compensation capacitor ,determine the output frequency
3. Save at least above 20% energy than SCR medium frequency device.
4. Machines has small size,light weight,melting capacity is from a few kilograms to hundreds of kilograms,a large range to choose,both for factory use, can also used for schools and institutes, a small amount of melting.
Yongda induction heating power supply
The superiority of the product:
1. Power consumption saving:generally saving 10%-20% energy than SCR medium frequency devices.
2. Full protection:over voltage, lack of water,over current,over heating, lack of phase, etc. sound and light alarm system
3. Application range:diameter below 200mm rods tempering, forging,extrusion etc.
Technial parameters of Yongda igbt induction melting furance
The maximum heating capacity of every melting furnace in the below table, for cold furnace, each furnace melting time is 50-60 minutes, for hot furnace, every furnace melting time is 20-30 minutes.
Model | Steel and stainless steel | Gold, silver, copper | Aluminum |
WZP-15 | ----- | 10kg | 3kg |
WZP-25 | 5kg | 20kg | 6kg |
WZP-35 | 10kg | 30kg | 10kg |
WZP-45 | 18kg | 50kg | 20kg |
WZP-70 | 25kg | 100kg | 30kg |
WZP-90 | 40kg | 120kg | 40kg |
WZP-110 | 50kg | 150kg | 50kg |
WZP-160 | 100kg | 250kg | 100kg |
WZP-300 | 200kg | 500kg | 200kg |
Control panel of WZP-35KW IGBT Induction melting furnace
Packing for induction heating machine:
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,induction melting furnace,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
Our factory
Various of metal work pieces induction heating,Shenqiu Yongda can provide best solutions for you, with competitive price and best service. Welcome to inquiry us !
Thanks for your reading !
