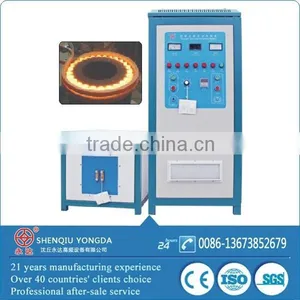

160KW Hi frequency induction gear heating forging machine
Features of Yongda induction gear heating forging machine
1. Heating fast: this is the heating rate of less than 1 second (speed adjustable speed control)
2. Heating wide: wide range of metal parts can be heated (according to the different shape of the workpiece replacement of removable induction loop)
3. Easy installation: connect the power, induction loop and out of the water can be used; small size, light weight, easy to use
4. Simple operation: a few minutes to learn
5. Start fast: you can start with water after the heating power
6.Low power consumption: high-frequency device than the old-fashioned tube about 70% energy saving, the smaller the power consumption of the smaller parts
7.Good effect: the heating is very uniform (also by regulating the induction coil density, so that all parts of the workpiece to obtain their desired temperature), heating up fast, less oxide layer after annealing without waste
8. Adjustable power: The Promise adjust the output power
Protection all: with over voltage, over current, overheating, lack of water and other alarm indicator, and automatic control and protection

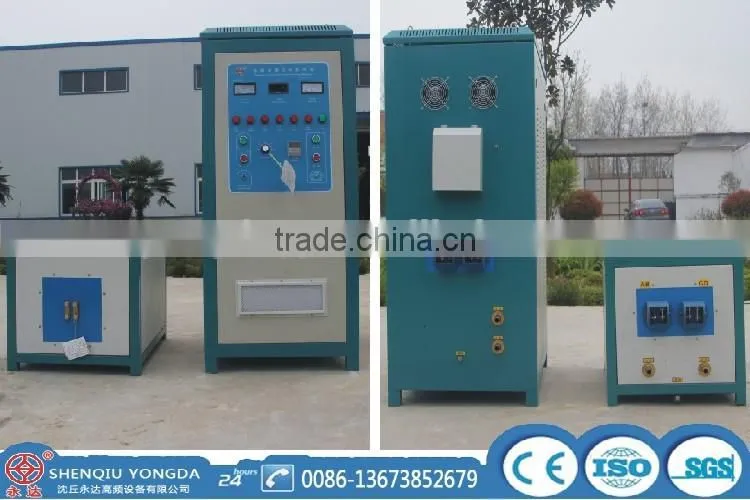

WZP-160 KW hf machine front and rear
Technical paramters of 160kw hi frequency induction gear heating forging machine
Model |
WZP-160 |
Work power |
3 phase 380V+/-10%, 50-60HZ |
Input voltage |
320V-420V |
Input current |
6-300A |
Input power |
3-160KW(power adjusted stepless) |
Oscillation frequency |
10-50 KHZ |
Cooling water pressure |
0.3 MPA |
|
Size of geneartor: Transformer |
850*600*1330mm 780*540*520mm |
Weight of generator ; transformer |
147kgs; 108kgs |
Water cooling protection point |
Below 50 degree celsius |

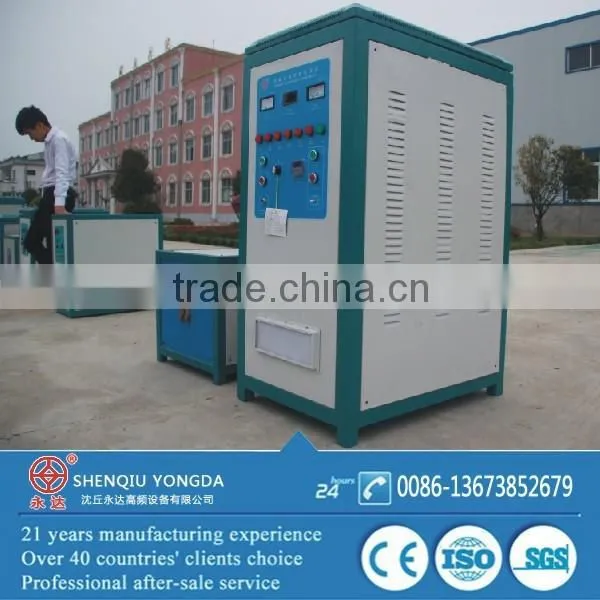

Our heating machine debugging workshop

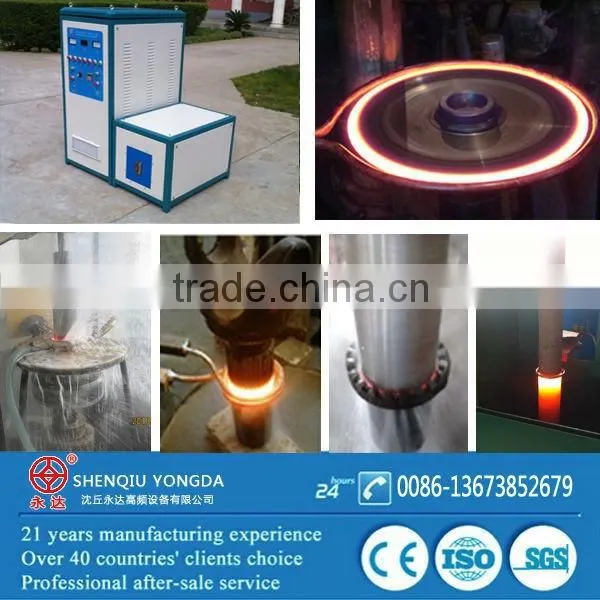

Application gear heating forging machine
1. Forging, rolling class
1.1 The variety of hot-rolled twist drill.
1.2 standard parts, hot forging fasteners, such as high strength bolts, nuts and so on.
1.3 drill steel, tempering brazing, forging, extrusion heating.
2. Heat treatment Class
2.1 The various hardware tools, hand tools, heat treatment. Such as pliers, wrenches, screwdrivers, hammers, axes and so on.
2.2 kinds of auto parts, motorcycle accessories high-frequency quenching. Such as: crankshaft, connecting rod, piston pin, crank pin, wheel, camshaft, valves, all kinds of rocker arm, rocker shaft; transmission of various gears, spline shafts, drive axle, a variety of small axes, a variety of fork and other high-frequency quenching.
2.3 power tools on the gears, shafts and other high-frequency quenching.
2.4 a variety of hydraulic components, pneumatic components of high frequency hardening heat treatment. Such as the piston plunger, rotor pump rotor on a variety of valves for the shaft, the gear pump gear, etc. quenching.
2.5 Heat treatment of metal parts. Such as the various gears, sprockets, all kinds of shafts, spline shafts, pins and other high-frequency quenching.
2.6 Machine tool industry guide, tools swallowtail quenching treatment.
Heat treatment

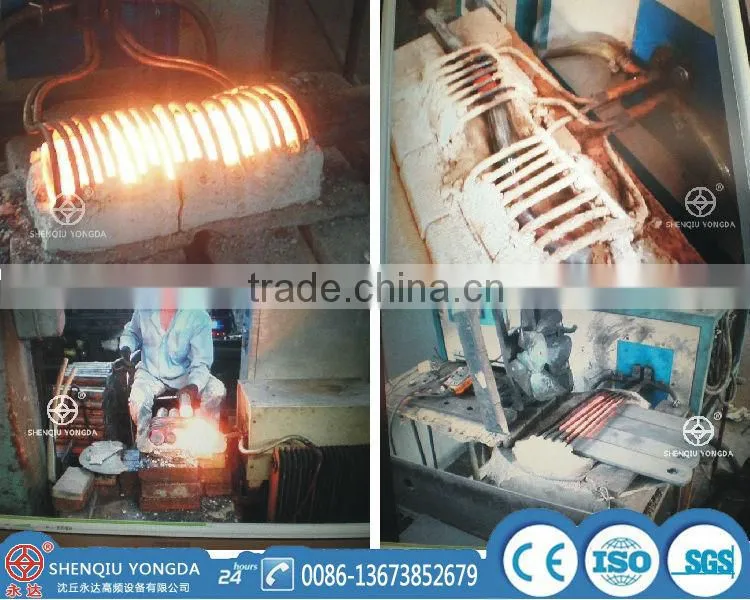

Heating forging
Packing for induction gear heating forging machine
1.Two wooden cases (plywood) or caron,as you request.
Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: high frequency cable 2 pcs, (connect generator and transformer)induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air/train etc.
Dear buyer,
Welcome to send us inquiry, please kindly tell us
1. what work piece you require heating ?
2. specifications of work pieces and material ?
3. More details
Thanks for your cooperation.
Sincerely provide service for you!
