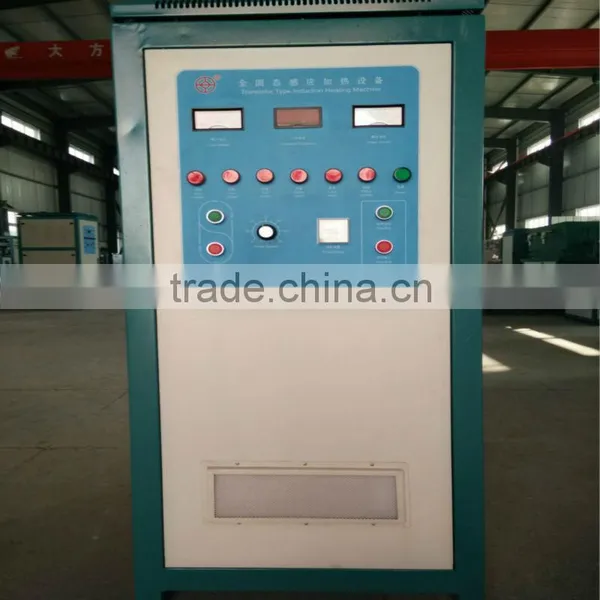

IGBT Medium frequency used induction heating equipment
Main technial parameters of IGBT200KW/2-10Khz medium frequency induction heating equipment
Model | IGBT200KW/2-10Khz |
Work power | 3 phase 380V+/-10%, 50-60HZ |
Input voltage | 320V-420V can be changed, depend on your country's electric power |
Input current | 6-350A |
Input power | 3-200KW(power adjusted stepless) |
Oscillation frequency | 2-10 KHZ |
Cooling water pressure | 0.2-0.3 MPA |
Size of geneartor: Transformer | 1080*740*1280 1055*558*570mm |
Weight of generator ; transformer | 150kgs; 190kgs |
Water cooling protection point | Below 50 degree celsius |

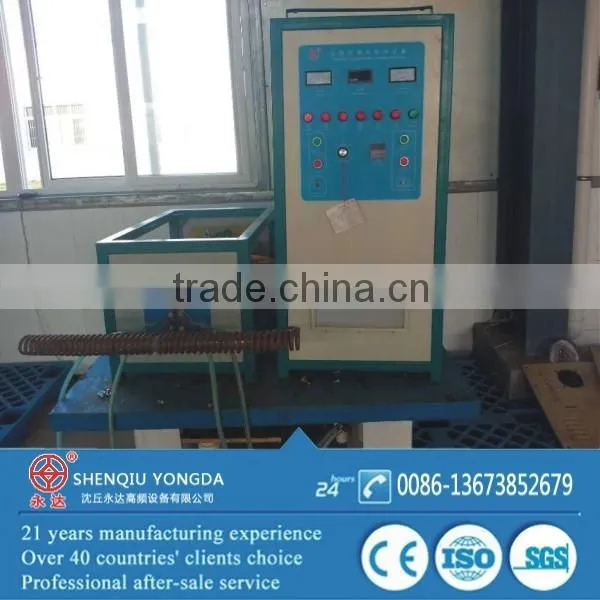

Induction heating equipment working onsite

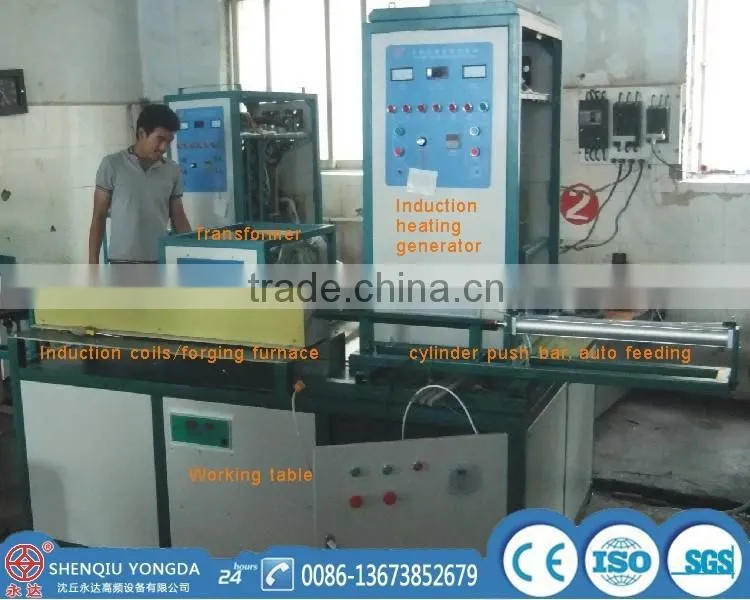

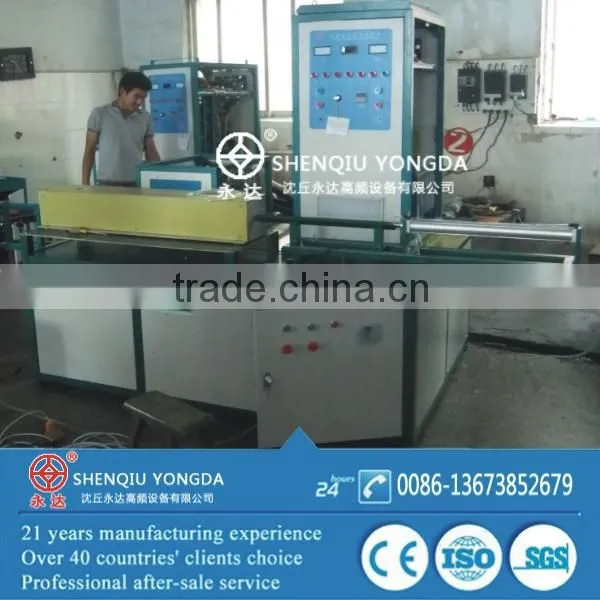

Round steel bars forigng ,automatic feeding induction heating equipment
Applications of induction heating equipment
Hot forging, forming workpieces
A, all kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist hot upsetting, hot.
B, metal heat annealing. Such as: tensile steel tube, pipe, smashed head; wire, heating wire nail; stainless steel annealed, rose type.

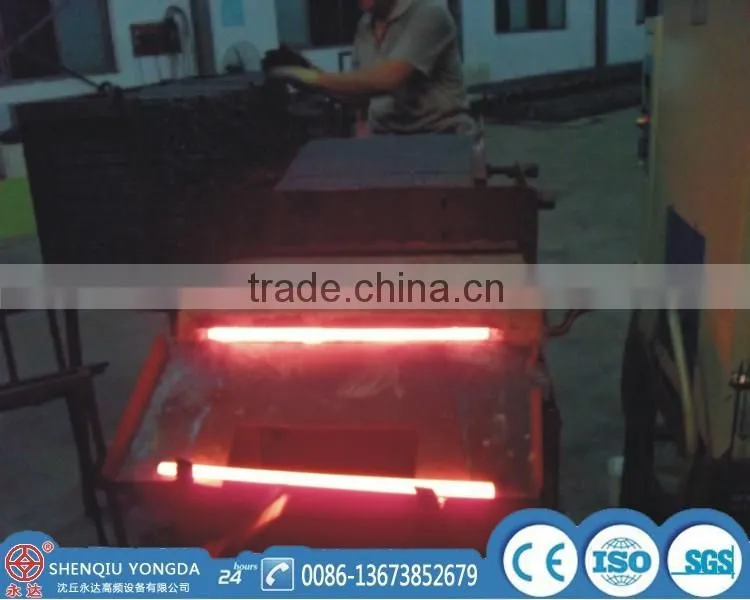

heating steel strip for forging
Bolts heating, gears hardening

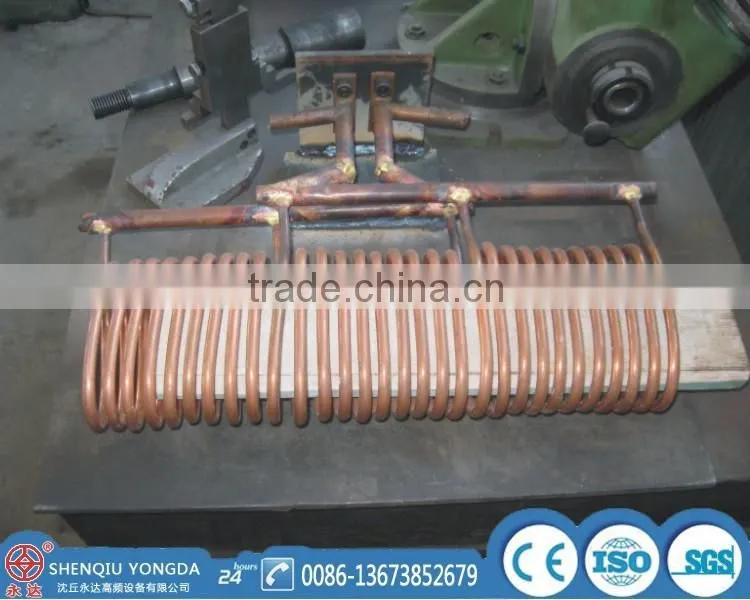

Induction coils : tailor-made, according to specifications of your workpieces
Induction coils is the key of high frequency forging machine. Shenqqiu Yongda Mr Han has over 20 years induction heating experience in making copper tube induction coils .Common work piece and irregular work pieces, we both can make the perfect coils for you.
Debugging machine workshop
1. Reply your inquiry within 24 hours
2. Recommend suitable machine model,according to your work piece specifications and heating requirements.
3. Send detailed product parameters, photos and price.
5. Solve all the problem , such as shipping cost, shipping time,delivery time, warranty etc,what you concerned.
6. Reach an agreements, sign proforma invoice or contract.
7. Produce induction heating equipment strictly based on the PI/contract.
8. Arrange goods shipment
9.Tracking goods and help you install and operating machines/
10. Email or Call visit.
11.Provide long-terms technical support.
Packing for induction heating equipment
1.Wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: high frequency cable 2 pcs, (connect generator and transformer)induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air/train
What’s your MOQ? | Any quantity of machine will be accepted. MOQ:1 Set |
Which place your factory is located? | We are located in Shenqiu County, Zhoukou city, Henan Province ,China |
How far from Beijing? I think it is more closer to Shanghai | Our factory is near both and Shanghai. We have office in Zhengzhou, we can pick up you at Zhengzhou CGO airport,and then to our factory via expressway about two hours. |
We need to see some more videos for production line and also pictures of your factory, water drawing and panel drawing | Well, we have many videos show our customer’s machine working scene(Various of applications: forging,hardening, brazing, shrink fitting, melting and hot coating etc. According to your work piece processing requirements,) send you the corresponding video link or send by email. 2. Yes, we can provide you factory pictures and machine water connection and control panel details. |
Do you have quality certifications? | Yes, we got the ISO9001:2000 International quality management system certification in August,2001, |
How do you packing the machines? | Standard export wooden cases(plywood) Usually every set machine will be used two wooden cases: one for packing induction heating generator, one for packing transformer. Inside will be filled with plastic foam for waterproof and shockproof |
More questions….? | Updating… |
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.

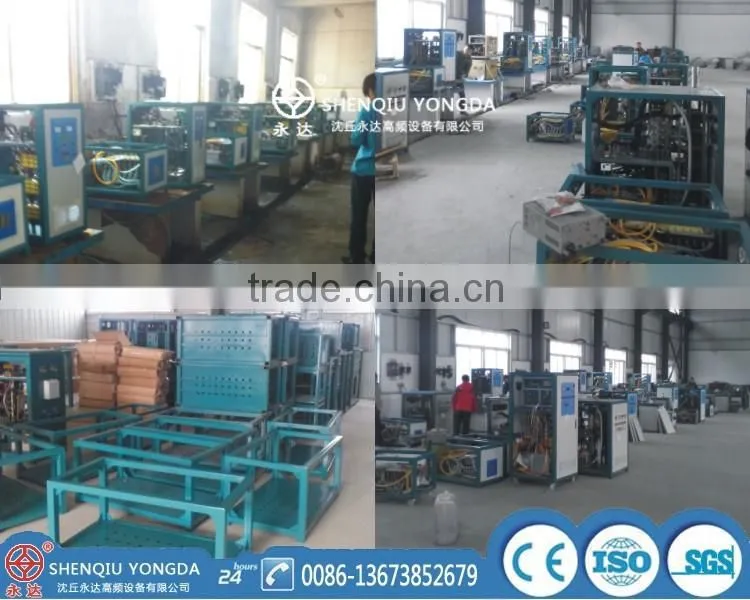

Work shop
To buyer:
Inorder save time and improve communicate efficiency,please kindly also tell us specifications of your work pieces and heating requirements:such as heating temperature, time requirments(output per hour),local or whole parts heating, application/purpose etc.
So that we will recommend you suitable machine model as soon as possible.
If you know little about induction heating equipment,it doesn't matter,please direct send us inquiry. Let us help you !
Thanks for your cooperation !
Sincerely provide service for you!
