Specifications
induction heating forging furnace1.capacity 2.5-3kgs/min
2. power: 3-50KW
3. frequency:10-50KHZ
4. induction coils heat
50KW steel bars induction heating forging furnace
1, good energy efficient: high-frequency transistor can save 30%-40% energy than traditonal tube heating machine
2, special light, small size,easy to move.
3, low maintenance cost: no fragile, expensive tubes;
4, special security, no pressure, eliminating the high risk of electric shock;
5, high reliability: modular, integrated, high reliability assurance;
6, simple installation : just connect the power and water, and 10 minutes to complete.;
7, easy operation :a few minutes to learn.
Model(KW) | Input voltage | Input current | Oscillation frequency | Cooling water pressure |
WZP-40 | 320-420V | 2-40A | 15-30KHZ | 0.1MPA |
WZP-60 | 320-420V | 3-60A | 15-30KHZ | 0.2MPA |
WZP-90 | 320-420V | 4-90A | 15-30KHZ | 0.3MPA |
WZP-120 | 320-420V | 6-120A | 15-30KHZ | 0.3MPA |
WZP-160 | 320-420V | 6-160A | 15-30KHZ | 0.3MPA |
WZP-200 | 320-420V | 6-200A | 15-30KHZ | 0.3MPA |
WZP-300 | 320-420V | 6-300A | 15-30KHZ | 0.3MPA |
WZP-400 | 320-420V | 6-400A | 8-15KHZ | 0.3MPA |
WZP-500 | 320-420V | 6-500A | 8-15KHZ | 0.3MPA |

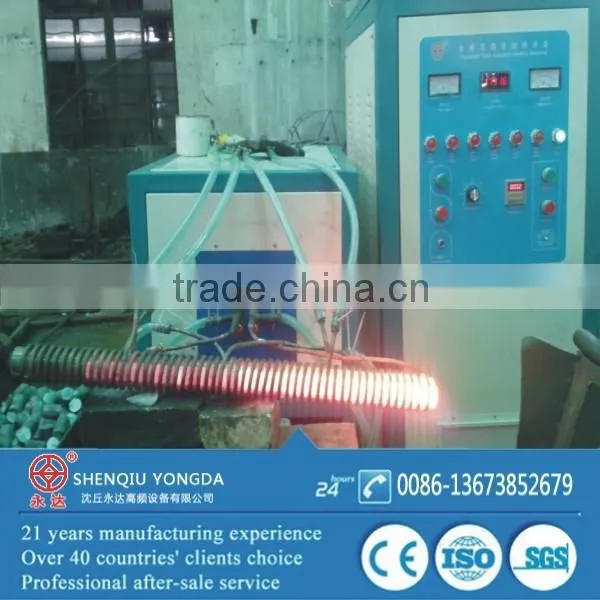

Work shop : debugging induction heating forging furnace

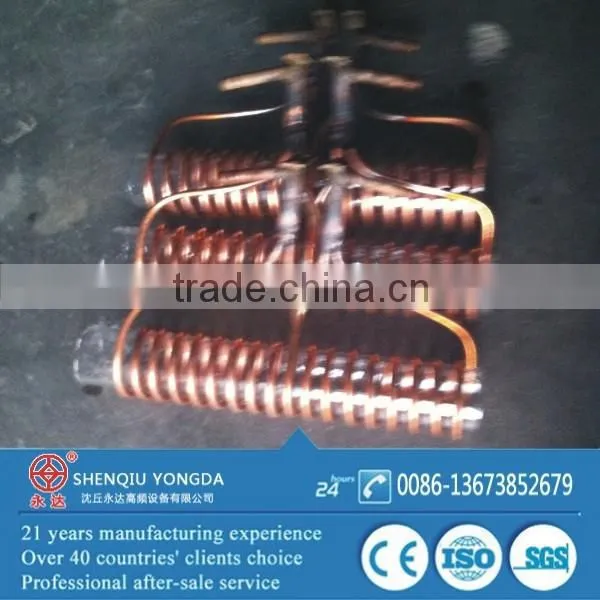

Induction coils is tailor-made, according to size of work pieces. Material: copper tube
1,Heating forging all kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist drill of hot forging, hot rolling, metal annealing. Such as: tensile steel; wire, nail wire heating; stainless steel annealed, rose type.
2, heat treatment various types of hardware tools, electric, hydraulic, pneumatic components, automotive, motorcycle parts and other mechanical parts of the surface of the metal, the hole, partial or total quenching. Such as: hammer, knife, scissors, pliers and all kinds of shafts, cams, sprockets, gears, valves, ball stud, a large machine tool guide, ductile iron quenching.
3, various types of brazing carbide blade, turning, milling, planing, reamer, diamond saw blade, serrated welding; grinding, drilling, cutting welding; brass, copper, stainless steel pot, etc. hybrid welding of metallic materials.
4, metal melting: melting gold, silver and copper.
5, other areas of plastic pipe heating cable, heating wire coating; food, beverage, pharmaceutical industry, the use of aluminum foil.

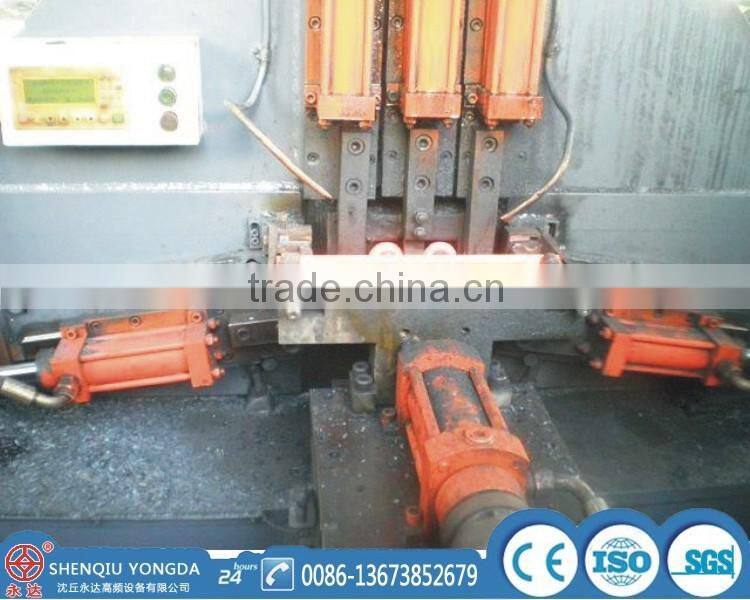

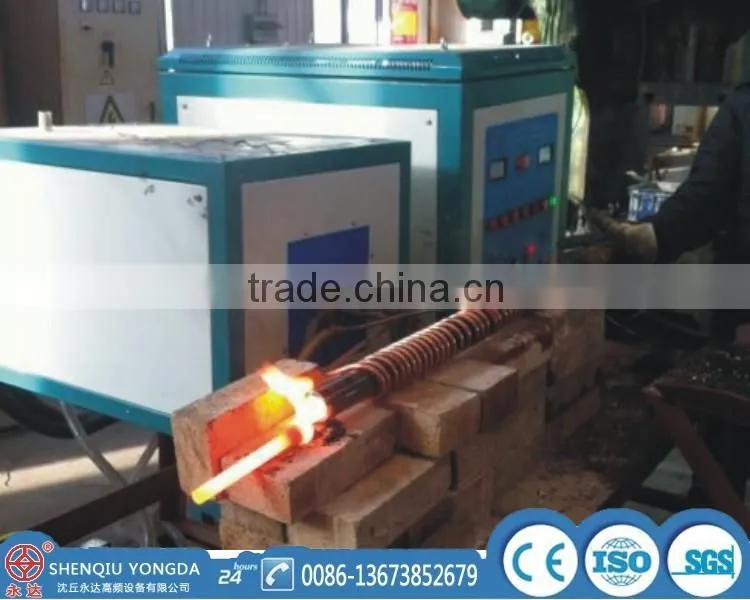

Steel rods ends induction forging
Steel strip induction forging
Hot Forging steel strip
Packing of induction heating forging furnace:
1.Carton or wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: induction coils,foot switch and installing and operating instructions
3. Size : generator 830*500*880mm transformer 830*600*550mm
4.Weight: 110kgs -120kgs
4.Shipping: by sea LCL(less than container load) or by air.
Packing machines
Pre-sale service:
We will recommend the most applicable equipment for customers according to your work piece processing demands.
In-sale service:
(1) We will strictly produce the equipment according to relevant technical standards.
(2) We will take run test according to relevant equipment test run regulations.
(3) We will strictly inspect the equipment before delivery,only good machine will be sent to customers.
(4) We will send goods as scheduled in the contract.
After-sale service:
(1) We will freely guide installation, commissioning and test run,by sending intall drawings, sometimes calling or send email.
(2) We will execute one-year guarantee period (ex. not include normal wear, damages of wearing parts and parts damages caused by improper operation).
(3) Once there is a trouble during quality guarantee period, our company promises that we will promptly appoint engineer and sales to help, make our efforts to remove troubles and guarantee the normal operation of customers.
(4) We will freely replace all equipment parts during guarantee period. After-sale products archives and life-long repair solve the potential problems of customers.
(5) Provide long-terms technical support. Also for different work pieces , give instructions and help about how to produce inductors.
(6) According to customer’s need, can arrange engineer to install ,test machine and training operators.
(7) After guarantee period, customer can buy machine parts from us with very low cost.
Dear buyer:
Please kindly also tell us specifications of your work pieces and heating requirements:such as heating temperature, time requirments(output per hour),local or whole parts heating, application/purpose etc.
So that we will recommend you suitable machine model as soon as possible.
If you know little about induction heating equipment,it doesn't matter,please direct send us inquiry. Let us guide you !
Sincerely provide service for you !
