21 years experience industrial induction forging iron machine
2, high efficiency, energy saving is very clear, high-frequency equipment save 60% energy than traditional
3, secure, reliable, non-million-volt high-pressure, very safe for the operator.
4, the frequency bandwidth to meet the different parts of brazing, heat treatment, heating before forging.
5, a unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
| Model | WZP-120 |
| Work power | 3 phase 380V+/-10%, 50-60HZ |
| Input voltage | 320V-420V can be changed, depend on your country's electric power |
| Input current | 6-120A |
| Input power | 3-65KW adjustable stepless |
| Oscillation frequency | 15-30KHZ also can be changed, depend on your work pieces size |
| Size of generator | 665*400*730mm |
| Size of transformer | 660*490*435mm |
| Weight of generator | 48kgs |
| Weight of transformer | 66kgs |
| Cooling water pressure | 0.3 MPA |
Machine water and electricity connection

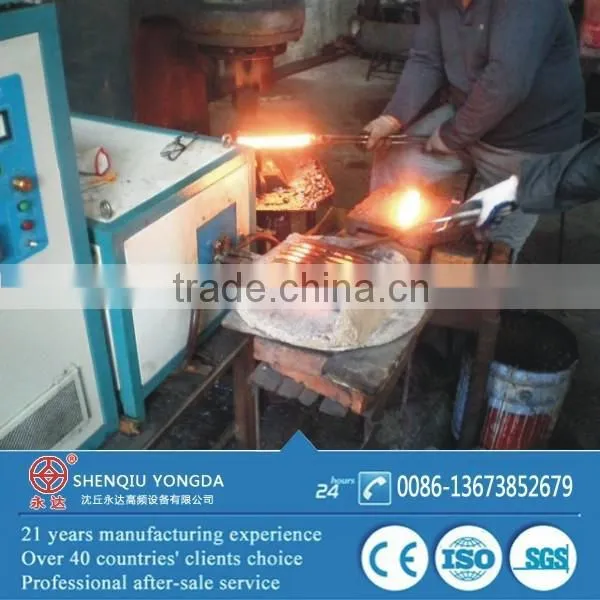

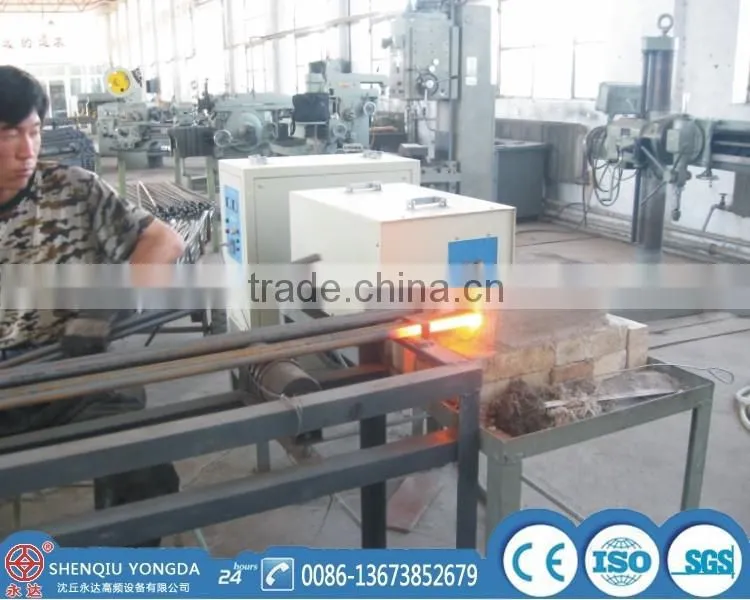

Induction forging iron rods
Application: heating (hot forging, shrink fit,hot melting):
1, forging it mainly for heating the workpiece to a certain temperature (heating temperature according to different materials are different), by punching, forging bed or other forms of forging the workpiece into other shapes. For example: Case, table embryo, handle, mold, kitchen tableware, crafts, standard parts, fasteners, machine parts, lock, rivets, drill rod, drill a hot extrusion, and so on.
2, shrink fit mainly refers to heat with different kinds of metal between the metal and non-metal or between the metal by heating, using thermal expansion of the solution or melt the principle so that the two together. For example: computer copper and aluminum radiator, horn net value of the buried welding, steel-plastic composite pipe, aluminum foil seal (toothpaste), rotor, electric tube sealing and so on.
3, melting mainly refers to the melting of metals by high temperature, the metal into the liquid, mainly used in iron, steel, copper, aluminum, zinc, and various precious metals. Such as gold, silver melt.
Steel bolts forging

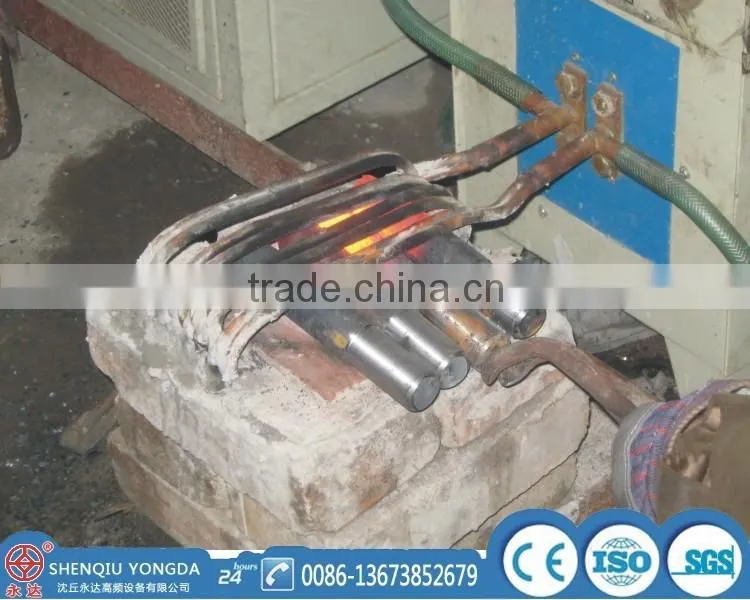

Round steel bars, copper bars, iron bars heating coils sample
Metal work piece showroom: all work parts are processed by our induction heating machine
Our machine workshop: only good induction heater will be sent to our customer
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support
Packing for induction forging machine
1.Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: induction coils,foot switch and installing and operating instructions
3. Packing size: generator 830*500*880 transformer 830*600*550mm
Shipping: by sea LCL(less than container load) or by air.
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,high frequency induction heater,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
Shenqiu Yongda High frequency equipment Co.,Ltd are in induction heating industrial exhibitions
Professional high frequency induction heating forging machine manufacturer, choose us, you are right !
Thanks for your reading ! Welcome to contact us !
