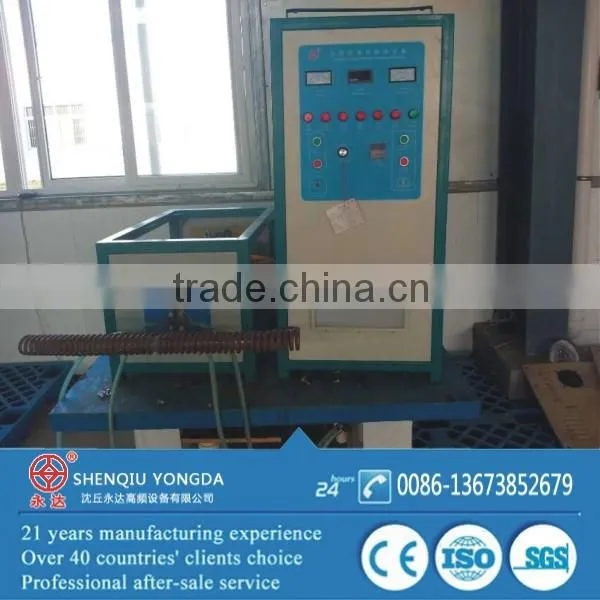

Steel bar induction heater furnace
Technial specifications of induction heater furnace
Model |
Input voltage |
Output power |
Oscillation frequency (KHZ) |
Cooling water amount (T/H) |
Cooling water pressure (MPA) |
IGBT100KW/4-10KHZ |
3-380V |
100KW |
4-10KHZ |
3 |
0.2-0.3MPA |
IGBT160KW/4-10KHZ |
3-380V |
160KW |
4-10KHZ |
4 |
0.2-0.3MPA |
IGBT200KW/4-10KHZ |
3-380V |
200KW |
4-10KHZ |
5 |
0.2-0.3MPA |
IGBT250KW/4-10KHZ |
3-380V |
250KW |
4-10KHZ |
6 |
0.2-0.3MPA |
IGBT350KW/4-10KHZ |
3-380V |
350KW |
4-10KHZ |
8 |
0.2-0.3MPA |
IGBT400KW/4-10KHZ |
3-380V |
400KW |
4-10KHZ |
12 |
0.2-0.3MPA |
IGBT500KW/4-10KHZ |
3-380V |
500KW |
4-10KHZ |
15 |
0.2-0.3MPA |
Composition of induction heater furnace:
induction heating generator 1pc, transformer 1 pc, induction heating coils /forging furnace 1 pc.
Functions of control panel for induction heater furnace
PS: The machine itself has many protection functions, over ten alarm lamps, such as over voltage, lower voltage, over current, water temperature is high, lack of water, lack of phase, when any of the lamps light, machine stop heating, prevent machine further damaged, until trouble shooting.
Forging furnace is tailor-made, according to size of your work piece .
Application of induction heater furnace
1. diathermy (forging)
(1) Round steel categories:
A. bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod
B. stainless steel tableware, stainless steel bolts and nuts
C. tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,
D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing
(2) sheet/plate categories:
A. forged stainless steel cutlery, automotive steel plate.
B. sheet folding: folding iron hand jack, metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring
C. embossed: Iron Works embossing, embossing motorcycle brake pedal heating, sanitary ware.
D. Forming: bending, upsetting head, punching, flatten, step by step tight angle iron molding, from nails, rasp, sanitary ware
(3) pipe deformation: pipe heat distortion, fire extinguishers stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching
(4) other categories:
Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains pin, watch cases, railway rail pressure ring.

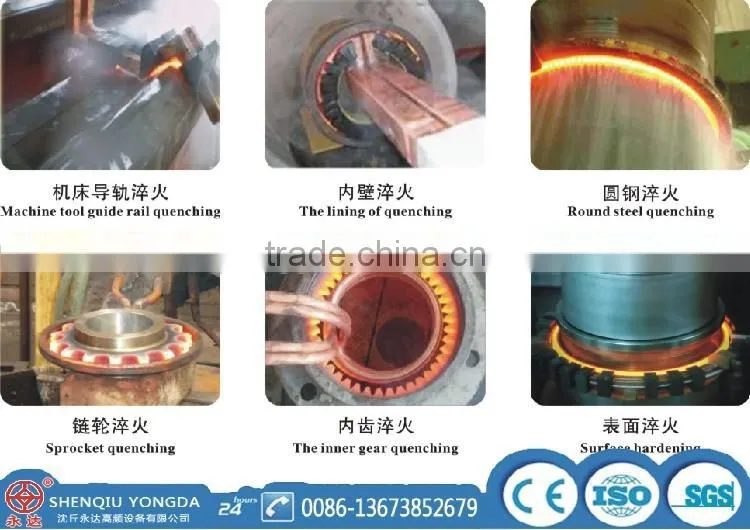

2.Quenching/Hardening
(1) Shaft:
Crankshaft, rocker shafts, camshafts, hollow shaft, spline shafts, axle, steering axis, drive shaft
(2) tools, cutting class, measuring tools, calipers quenching
A. knives: axe, electric knife, scissors, knives, planer knives, screwdrivers, harvester blade, sickle
B. cut categories: garden shears, scissors aviation, Scissors
C. Pliers: bolt cutters, pipe wrenches, pliers, nutcracker, pliers, needle nose pliers, beauty clamp (diagonal pliers)
D. Saws: Hoist, live pull saws,
E. other categories: masonry chisel, hammer, ratchet wrench, Yang Gao, power tools, claw hammer
(3) Gear: Electric Tools gears, automotive gears, marine gears, bevel gears
(4) Auto Parts category:
Car hooks, splines, rear axle, fork, rocker, valve, jack head, sprockets, crank, oil pump, fuel injectors, clutch plates,
Shaft ferrule
(5) mechanical parts category:
Driving wheels, guide rails, rollers, vibration pump oscillator, mold, pneumatic components, pump rotor, rod dies, aircraft hanging roller quenching instrument lathe chuck, drawing dies, winch rollers, rail spike, bar quenching, excavator teeth hardening
Other machine model options:super audio series
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-40 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
WZP-300 |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
WZP-400 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-500 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |
We are in exhibitions
1.Warranty: one year free replacement spare parts.Excess warranty period, you also can buy spare parts with very low cost.
2. Provide install and technology instruction by sending drawings, email, or telephone,video.
3.If you need, will arrange one engineer to your place,instruct install machine and training operators.
4.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
5.Provide long-terms technical support
