Home > Products > Induction Forging > Energy saving IGBT induction heating machine for brass forging
Energy saving IGBT induction heating machine for brass forging
- 500 Set / Sets per Month
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Super audio frequency 50KW induction nut forging machine
-
Steel bar forging induction heating machine
-
120KW Radio frequency heat induction
-
New type hot sale IGBT induction heating for forging
-
200KW Industrial heating furnace induction hot forging
-
Professional good quality induction heating rod forging
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Yongda | Model Number | WZP-200 | |
| Voltage | 320-420Vcustomized | Power(W) | 120KW | |
| Dimension(L*W*H) | generator:850*600*1330mm transformer:780*540*520mm | Weight | generator:131kgs transformer:89kgs | |
| Certification | ISO9001 | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
induction heating machine for brass forging1.Adopt IGBT
2.Energy-saving,high efficiency
3.Easy operation and safety
Energy saving IGBT induction heating machine for brass forging
Brass forging, diameter below 45mm, super audio frequency induction heating machine can do this job.
Steel rods forging,machine model choose
Diameter | Length | Recommended model |
6-20mm | 50mm | WZP-60 |
25-30mm | 50mm | WZP-90 |
35-45MM | 50MM | WZP-160 |
45-65MM | 50MM | WZP-200 |
50-100MM | 50MM | WZP-500 |
Note: While, brass forging, it's heating speed is slower than steel rods forging, So machine power should be bigger half than steel rods forging machine power choose.
Different models of induction heating machine for brass forging
Model | Input voltage | Input current | Oscillation frequency | Cooling water pressure |
WZP-40 | 320-420V | 2-40A | 15-30KHZ | 0.1MPA |
WZP-60 | 320-420V | 3-60A | 15-30KHZ | 0.2MPA |
WZP-90 | 320-420V | 4-90A | 15-30KHZ | 0.3MPA |
WZP-120 | 320-420V | 6-120A | 15-30KHZ | 0.3MPA |
WZP-160 | 320-420V | 6-160A | 15-30KHZ | 0.3MPA |
WZP-200 | 320-420V | 6-200A | 15-30KHZ | 0.3MPA |
WZP-300 | 320-420V | 6-300A | 15-30KHZ | 0.3MPA |
WZP-400 | 320-420V | 6-400A | 8-15KHZ | 0.3MPA |
WZP-500 | 320-420V | 6-500A | 8-15KHZ | 0.3MPA |

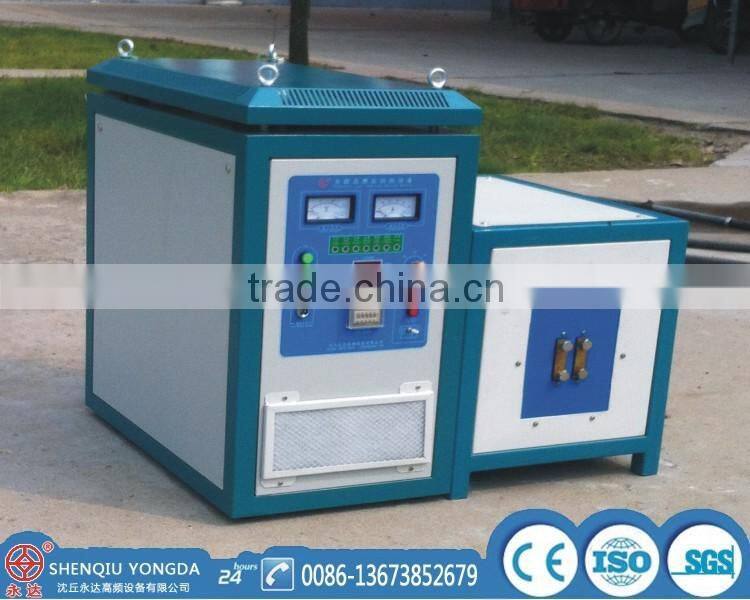

Induction heating machine for brass forging
Control panel of induction heating machine for brass forging
Over voltage, over current, overheating, lack of water and other alarm indicator, and automatic control and protection .
I. Heat Treatment Industry
1. Hardware tool hardening: such as vices, hammers, pilers, wrenches, etc.
2. Various of automobile and motorcycle accessory hardening.
3. High frequency hardening of hydraulic components: such as piston, rotators, switching shafts, gears, etc.
4. Various of gears and shaft of electric tools.
5. Various of woodworking tools, such as axes, planers, etc.
II. Welding Industry
1. Welding machining cutters, such as lathe tools, planer tools, milling tools, etc.
2. Welding various of diamond tools, such as diamond saw blades, diamond drilling tools, etc.
3. Welding various of coal miller picks and digger picks.
4. Welding various of mechanical cutters.
III. Forging Industry
1. Forging various of standard parts and non-standard parts.
2. Preheating hardware tools, such as pilers, wrenches, etc.
3. Forging drills, drill handles, drill bits, hardening gears.
4. Extruding stainless steel containers.
Product qualtiy certifications: ISO9001-2000
Packing for induction heating machine for brass forging:
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support
Shenqiu Yongda high frequency equipment Co.,ltd establish in 1996 , and is a high-tech technology enterprise of Henan Province. Near 20 years induction heating machine production and marketing experience, what ever your metal work piece looks like, our experienced engineer will provide you the best solutions
Main prouducts
High frequency induction heating machine
Medium frequency induction heating machine
Superaudio induction heating machine
Induction forging machine
Induction hardening machine
Induction brazing machine
Induction annealing machine
Electromagnetic induction heating machine
CNC quenching machine tool
Automatic steel rods feeding machine
What’s your MOQ? | Any quantity of machine will be accepted. MOQ:1 Set |
Which place your factory is located? | We are located in Shenqiu County, Zhoukou city, Henan Province ,China |
How far from Beijing? I think it is more closer to Shanghai | Our factory is near both and Shanghai. We have office in Zhengzhou, we can pick up you at Zhengzhou CGO airport,and then to our factory via expressway about two hours. |
We need to see some more videos for production line and also pictures of your factory, water drawing and panel drawing | Well, we have many videos show our customer’s machine working scene(Various of applications: forging,hardening, brazing, shrink fitting, melting and hot coating etc. According to your work piece processing requirements,) send you the corresponding video link or send by email. 2. Yes, we can provide you factory pictures and machine water connection and control panel details. |
Do you have quality certifications? | Yes, we got the ISO9001:2000 International quality management system certification in August,2001, |
How do you packing the machines? | Standard export wooden cases(plywood) Usually every set machine will be used two wooden cases: one for packing induction heating generator, one for packing transformer. Inside will be filled with plastic foam for waterproof and shockproof |
More questions….? | Updating… |
Thanks for your time and we are looking forward to your cooperation.we will provide you the best product with professional service! Feel free to send us any inquiries! Welcome to contact us !
