WZP-160 Round steel rods hot forging induction heater with coils
Shenqiu Yongda High Frequency Equipment Co.,ltd professionally manufacture supersonic frequency hot forging induction heater, medium frequency hot forging induction furnace. Our products got ISO9001:2000 certifications.We have complete after-sale service. High quality, won many users good praise.
Main technial parameters of WZP-160 hot forging induction heater
| Model | WZP-160 |
| Work power: | 3 phase 380V+/-10%, 50-60HZ |
| Input voltage: | 320-420V |
| Input current: | 6-160A |
| Oscillation frequency: | 15-30khz |
| Cooling water pressure | 0.3 MPA |
| Size of geneartor: | 740*403*895 |
| Size of transformer | 735*490*465mm |
| Weight of generator | 55kgs |
| Weight of transformer | 74kgs |
Hot forging steel rods pictures

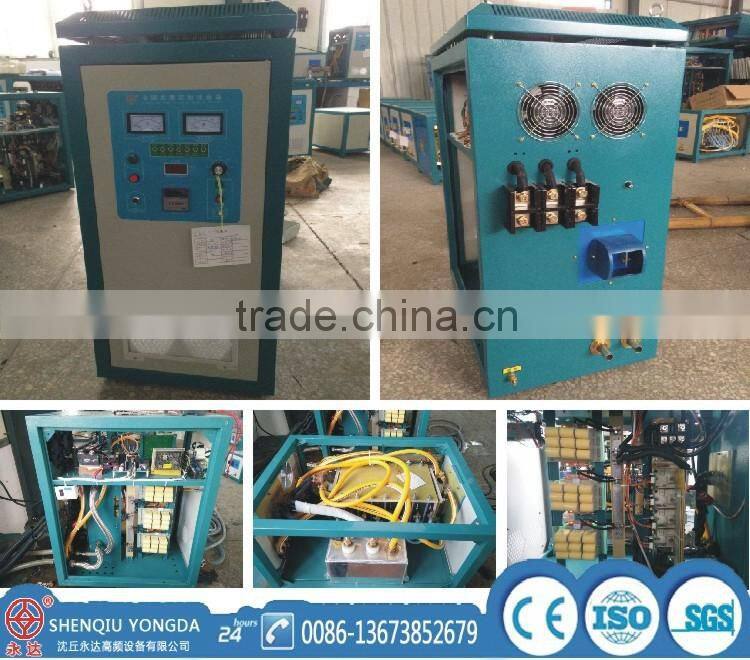

Induction heater generator front and rear
Features of hot forging induction heater
2. Protect full.Over current.over voltage,lack of phase,water shortage, etc. more than ten alarm lamps.
3. Heating fast.Within1 second ,temperature rise up to 1200 degree,even higher.
4. No need contacting work pieces, safety, safe and reliable.
5. Environmental friendly,no pollution, good for worker's health
6. Easy to change induction coils, for heating different shape of steel billet
7. Easy to install and operate.
8. Low maintenance cost
Model |
Capacity |
WZP-60 |
1.5kgs/min |
WZP-90 |
2.5 kgs/min |
WZP-120 |
3 kgs/min |
WZP-160 |
4.5 kgs/min |
WZP-200 |
6 kgs/min |
WZP-300 |
8 kgs/min |
WZP-400 |
10 kgs/min |
WZP-500 |
12 kgs/min |
Note: heating temperature 1100-1200 degree celsius.
Applications of hot forging induction heater
1 Hot forging variety of hot-rolled twist drill.
2 Hot forging standard parts, hot forging fasteners, such as high strength bolts, nuts and so on.
2.Induction forging drill steel, tempering brazing, forging, extrusion heating.
Our workshop debugging hot forging induction heater
Packing for hot forging induction heater
1.Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support.
