Thailand popular quartz glass pipe guide coils for forging steel rod heating machine
Yongda brand induction heating machine work stable and performance well , according to Thailand user's feedback.
Thailand user the second time purchasing Yongda brand steel rod heating machine.
This indicates, Yongda Brand induction heating machine is high quality, durable.

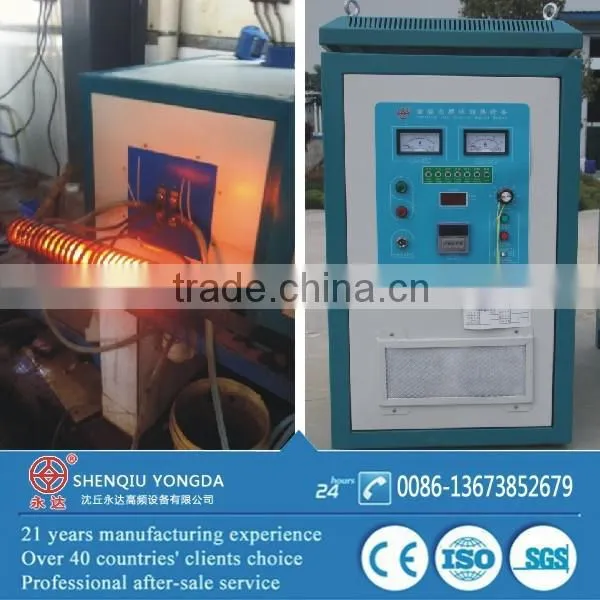

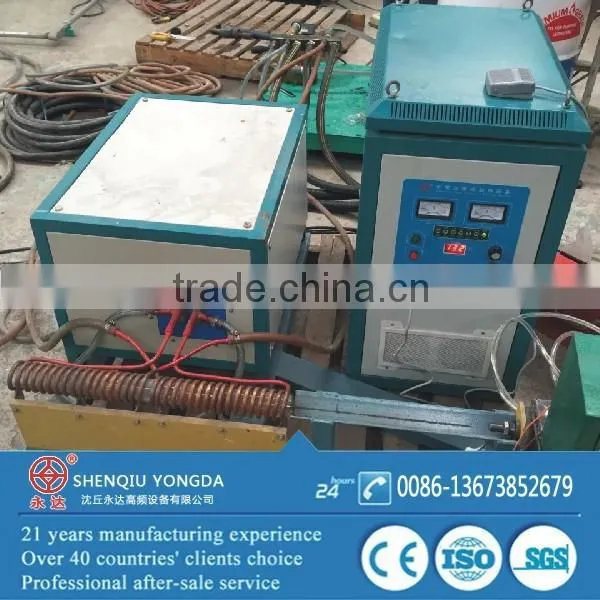

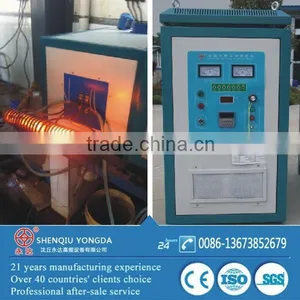

Technical parameters of WZP-120 steel rod heating machine
Model |
WZP-120 |
Work power: |
3 phase 380V+/-10%, 50-60HZ |
Input voltage: |
320V-420V |
Input current: |
6-120A |
Oscillation frequency: |
15-30khz |
Cooling water pressure |
0.3 MPA |
Size of generator: |
665*400*830mm |
Size of transformer |
660*490*435mm |
Weight of generator |
48kgs |
Weight of transformer |
66kgs |
Applications of steel rod heating machine
(1) Hot forging round steel categories:
A. bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod
B. stainless steel tableware, stainless steel bolts and nuts
C. tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,
D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing
(2) Induction forging sheet/plate categories:
A. forged stainless steel cutlery, automotive steel plate.
B. sheet folding: folding iron hand jack, metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring
C. embossed: Iron Works embossing, embossing motorcycle brake pedal heating, sanitary ware.
D. Forming: bending, upsetting head, punching, flatten, step by step tight angle iron molding, from nails, rasp, sanitary ware
(3) pipe deformation: pipe heat distortion, fire extinguishers stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching
(4) other categories:
Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains pin, watch cases, railway rail pressure ring.
Quartz glass pipe:
For steel rod whole heating, my company use high temperature resistant glass pipe as steel rod moving forward guidance.
It can bear 1500 degree high tempeature. If you need, we can provide.
Because of transport glass is not convenient,suggest purchase glass pipe in user's country.

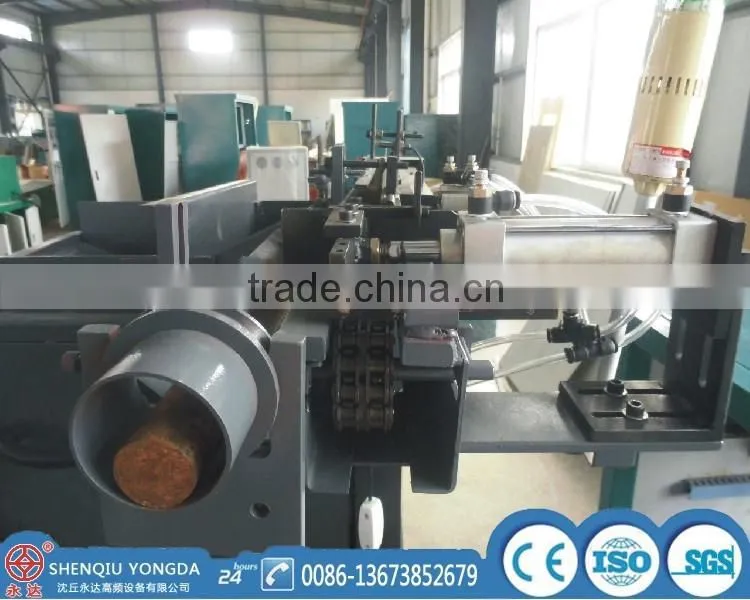

Automatic bar feeding machine for induction heating forge
1. Use lift lifting steel bar from lower to up place,
2. And then go into conveyor, carry the steel bars moving forwarding,
3. Finally air cylinder push steel bar into induction heating coils.
More details and price, please contact our sales person.
Our packing and inventory of steel rod heating machine
Our workshop
We are in induction heating industry exhibition
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support
What’s your MOQ? |
Any quantity of machine will be accepted. MOQ:1 Set |
Which place your factory is located? |
We are located in Shenqiu County, Zhoukou city, Henan Province ,China |
How far from Beijing? I think it is more closer to Shanghai |
Our factory is near both Beijing and Shanghai. We have office in Zhengzhou, we can pick up you at Zhengzhou CGO airport,and then to our factory via expressway about two hours. |
We need to see some more videos for production line and also pictures of your factory, water drawing and panel drawing |
Well, we have many videos show our customer’s machine working scene(Various of applications: forging,hardening, brazing, shrink fitting, melting and hot coating etc. According to your work piece processing requirements,) send you the corresponding video link or send by email. 2. Yes, we can provide you factory pictures and machine water connection and control panel details. |
Do you have quality certifications? |
Yes, we got the ISO9001:2000 International quality management system certification in August,2001, |
How do you packing the machines? |
Standard export wooden cases(plywood) Usually every set machine will be used two wooden cases: one for packing induction heating generator, one for packing transformer. Inside will be filled with plastic foam for waterproof and shockproof |
More questions….? |
Updating… |
Steel rod heating machine,please thinking Shenqiu Yongda HF Equipment CO.,Ltd
