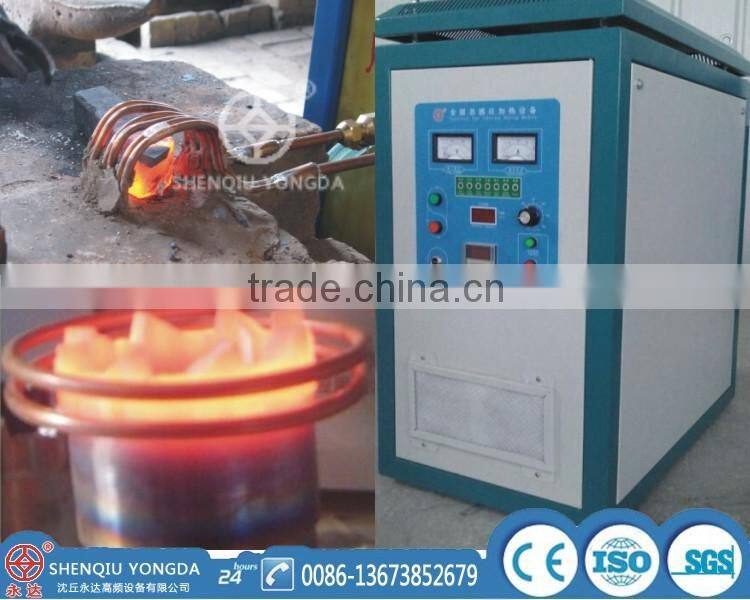

High frequency induction heater welding machine for tube
Welding/brazing/soldering:
It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different materials.
Features of induction heater welding machine
1. Light weight, small size and simple structure
2. Simple to operate, a few minutes are enough for user to learn it.
3. Simple to install, installation can be done by unprofessional person very easily.shien
4. Heating fast: the fastest heating speed is less than one second, and heating speed can be adjusted.
5. Different shapes and sizes of induction coils can be changed easily to heat different parts.
6.Display functions, with displays of over current, over voltage, water lack, phase lack and so on, machine can be protected from destroys and can be repaired easily.
7. Advantages: the machine is with timer, so user can preset machine’s power, operating time, heating time and retaining time to realize a simple heating curve.
Technical specifications of induction heater welding machine
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-40 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
WZP-300 |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
WZP-400 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-500 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |

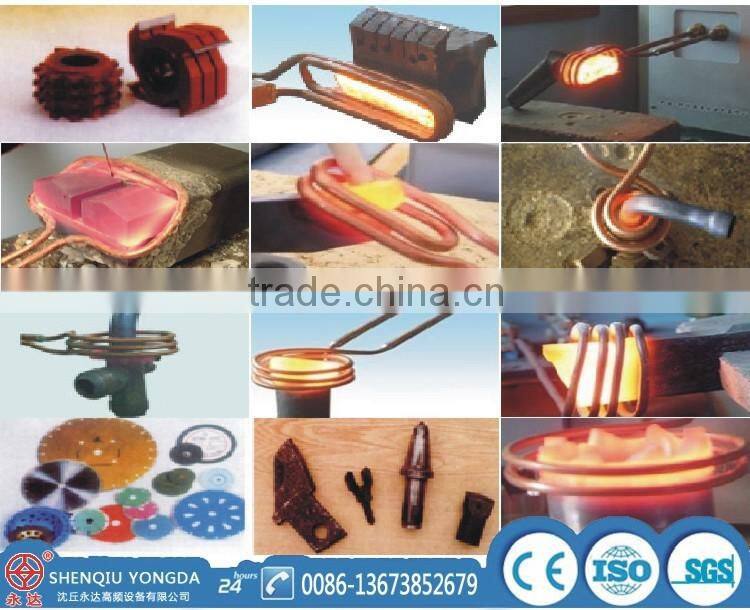

Application of induction heater welding machine
1. metal tube welding:
such as copper tube, steel tube, and aluminum tube’s butt welding, plug welding and
welding sets.
2. alloy cutter welding:
such as alloy turning tool, milling cutter, planer, saw blades, reamer, boring knife.
3. carbide saw blade welding:
diamond saw blade welding, marble saw blade welding,woodworking saw blade welding,
cut grass piece of welding, cut aluminum welding,
4. metal welding:
such as: towel rack, soap nets, towel holder, auto-accessories,motor accessories, metal terminals, hardware pieces, electric heating tube parts and fasteners.
5. customized service:
make machine according to customers' actual working situation.
We are in exhibiton
Product quality certification:ISO9001:2000
Packing for induction heater welding machine
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support
Quality assured ! Low cost ! Considerate service ! Shenqiu Yongda welcome you ! Thanks for your reading ! Welcome to contact us !
