65KW Electric Magnetic Induction Heater for Extruder
US$ 560 - 4,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Yongda
Model Number:
YD-65
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin Guangzhou or as you request
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Magentic Induction Heater for ExtrudersUS$ 899 - 5,000MOQ: 1 Set -
Electric Power Induction Heating Post Weld Heat Treatment Machine for PipeUS$ 2,000 - 9,800MOQ: 1 Set
-
Good Quality Induction Heater for Extruder With Engineers Available Service OverseaUS$ 1,000 - 5,000MOQ: 1 Set
-
Environment Protection Welding InverterUS$ 800 - 5,500MOQ: 1 Set
-
High Efficiency Automatic Welding MachineUS$ 800 - 5,500MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
Yongda
Model Number
YD-65
After-sales Service Provided
Engineers available to service machinery overseas
65KW Electric magnetic induction heater for extruder
Product Details
Technical paramters of induction heater for extruder
Model |
Power (KW) |
Current(A) |
Input voltage(V) |
Input frequency (Hz) |
YD-35 |
35 |
60 |
Three phase four wire 380V |
50-60Hz |
YD-45 |
45 |
90 |
Three phase four wire 380V |
50-60Hz |
YD-65 |
65 |
120 |
Three phase four wire 380V |
50-60Hz |
YD-85 |
85 |
160 |
Three phase four wire 380V |
50-60Hz |
YD-120 |
120 |
200 |
Three phase four wire 380V |
50-60Hz |
Applications of electric magnetic induction heater
Applications:Electromagnetic induction heater using the principle of electromagnetic induction,converts electrical energy into heat energy. It is widely used in injection molding machine, extrusion machine, blown film machine, drawing machine, boiler, hot water boiler and other industries.
It can replace the traditional energy,has the following advantages:
Using electromagnetic induction heating can improve energy efficiency, heating speed and temperature control accuracy, is more advantageous to the improvement of product quality, and also saving energy and reduce the cost, so more and more widely accepted and used.
Applications:Electromagnetic induction heater using the principle of electromagnetic induction,converts electrical energy into heat energy. It is widely used in injection molding machine, extrusion machine, blown film machine, drawing machine, boiler, hot water boiler and other industries.
It can replace the traditional energy,has the following advantages:
Using electromagnetic induction heating can improve energy efficiency, heating speed and temperature control accuracy, is more advantageous to the improvement of product quality, and also saving energy and reduce the cost, so more and more widely accepted and used.
Transforming flow:
1. Remove the original electric lap
2. Measuring the actural size of the heating cylinder(diameter,length)and obstructions size
3. Heated object wrapped in a layer of insulation material
4. According to the equipment heating requirments around a certain amount of high temoperature wire
5. High-temperature wire and the input lines of induction heating host machine connected, to the security complete.
1. Remove the original electric lap
2. Measuring the actural size of the heating cylinder(diameter,length)and obstructions size
3. Heated object wrapped in a layer of insulation material
4. According to the equipment heating requirments around a certain amount of high temoperature wire
5. High-temperature wire and the input lines of induction heating host machine connected, to the security complete.

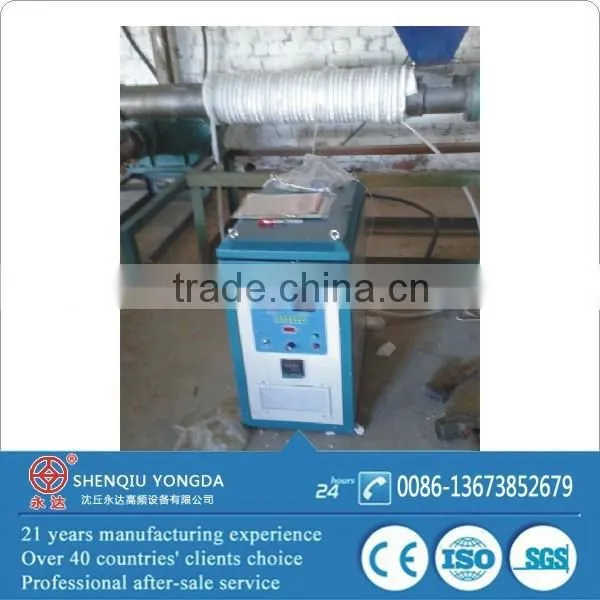

New type elctric magnetic induction heater for extruder

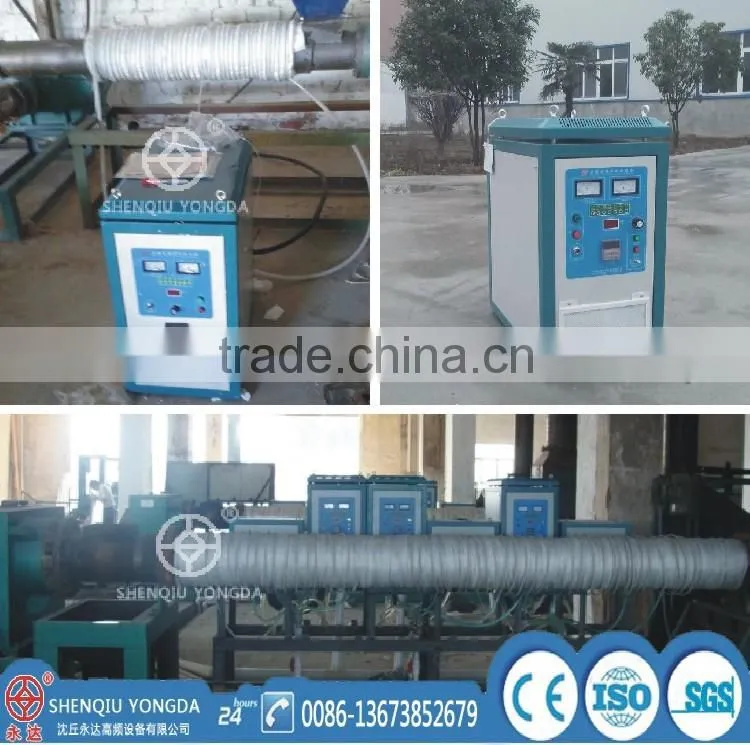

Induction heater for extruder
Composition: induction heating generator, induction copper coils , heat insulation material

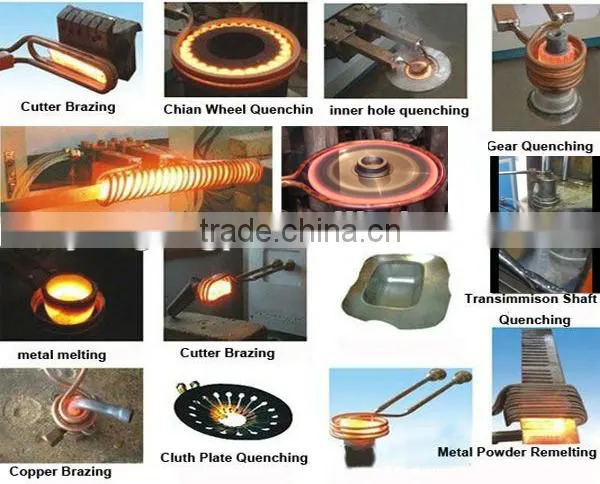

More applications of induction heater
Just change induction heating coils: copper tube induction coils . Can be used for metal heating, forging, hardening, brazing
Packaging & Shipping
Packing for induction heater for extruder
1.Wooden cases (plywood) or carton, as you required.
2.Inside,will be filled with plastic foam,for waterproof and shockproof.
3.Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air/train/courier
Our Services
1. Reply your inquiry within 24 hours
2. Recommend suitable machine model,according to your work piece specifications and heating requirements.
3. Send detailed product parameters, photos and price.
4. Solve all the problem , such as shipping cost, shipping time,delivery time, warranty etc,what you concerned.
5. Reach an agreements, sign proforma invoice or contract.
6. Produce induction heating equipment strictly based on the PI/contract.
7. Arrange goods shipment
8.Tracking goods and help you install and operating machines.
9. Email or Call visit.
10.Provide long-terms technical support.
2. Recommend suitable machine model,according to your work piece specifications and heating requirements.
3. Send detailed product parameters, photos and price.
4. Solve all the problem , such as shipping cost, shipping time,delivery time, warranty etc,what you concerned.
5. Reach an agreements, sign proforma invoice or contract.
6. Produce induction heating equipment strictly based on the PI/contract.
7. Arrange goods shipment
8.Tracking goods and help you install and operating machines.
9. Email or Call visit.
10.Provide long-terms technical support.
