Surface/case hardening spline shaft induction heating machine tool CNC control system
We, shenqiu Yongda high frequency equipment Co.,ltd has more than 20 years production and sales experience . Our full solid state induction heating hot sale at domestic and also , recently , yongda brand got many praised in international market.
We have capacity produce CNC hardening machine by ourselves.
Main Parameters of induction hardening machine tool

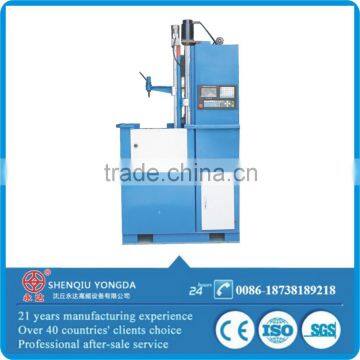

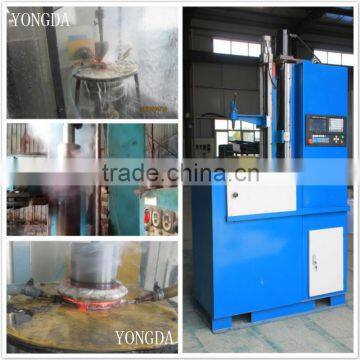

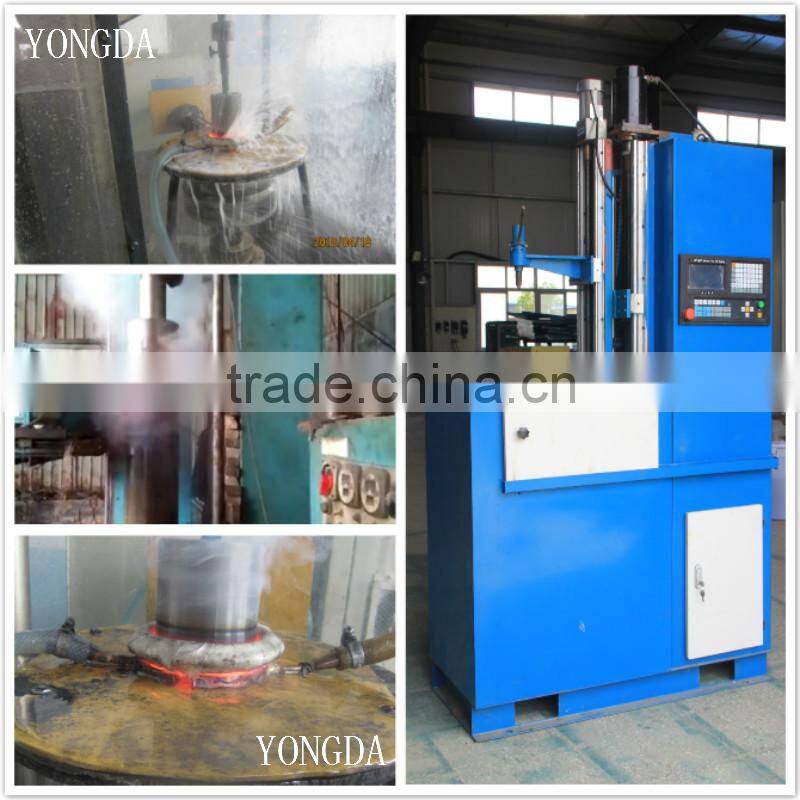

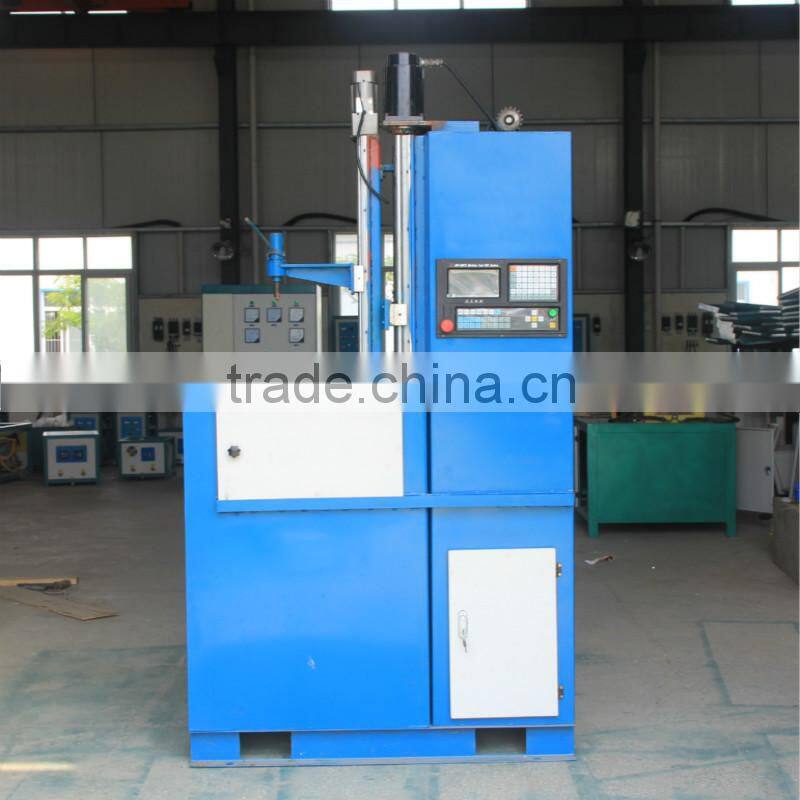

1000 Meter hardening machine tool YD-1000
|
CNC Quenching machine tool |
|
biggest quenching length(MM) |
850-90mm |
max tactical diameter(mm) |
≤φ300 |
work piece move speed(mm/min) |
2-60 |
rotation speed(r/min) |
40-150 |
Tip moving speed(mm/min) |
480 |
work piece weight(kg) |
≤150 |
Input voltage(V) |
three phase 380 |
totally motor power(kw) |
1.1 |
quenching work pieces per time |
single |
Features of shaft hardening induction machine tool
1, the machine uses PC-industrial digital control systems, high performance, debug and easy to use, to the greatest degree of quenching the workpiece to meet the complex needs.
2, the machine can achieve quenching mode: continuous scan quenching, and quenching, sub-continuous scanning quenching (by the level of sub-setting, no limit switch, the same below), while sub-quenching.
3, this machine is suitable for the typical artifacts (in the appropriate size range) axis: a variety of shaft, step shaft, gear shaft, cam shaft, axle, the cylindrical disk-type parts, end so on.
4, the machine control system for reserve electrical heating and cooling water quenching control interface. According to the process of quenching process and the need to control the cooling process.
5, low running costs. Just run the workpiece drive motor 250W, machine power consumption less than one-fifth of machinery and equipment.
6, the fuselage structure by profile, low cost, light weight, economical and practical.
7, easy maintenance, low failure rate, no leakage.
8 high degree of automation and production efficiency.
9, rail uses linear bearings, high precision, small friction, long life.
10, with heavy equipment through the sprocket, chain balance the weight.

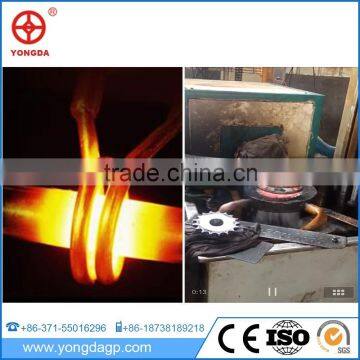

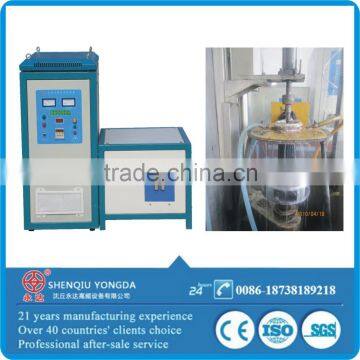

Yongda induction hardening heating machine WZP-160A/90KW
Power input |
380V/50Hz 3 phase |
Voltage range |
342~430V |
Max. power output |
90KW |
Oscillation frequency |
15~30KHz |
Efficiency |
90% |
Duty cycle |
100% |
Time setting |
0.01S~99.99S |
Alarm temperature |
45℃ |
Weight of controller |
60Kg |
Weight of transformer |
34Kg |
Dimension of controller |
740X403X895 |
Dimension of transformer |
735X490X465 |
Accessories |
Induction coils 2 piece Foot switch 1 piece Water shunt valve 1 piece User manual 1 piece |
Adopts siemens IGBT modules, save 30%-50% energy than traditional heating methods.
Full automatic cnc shaft hardening induction heating machine tool , Shenqiu Yongda has many years experience, welcome to inquiry us !
