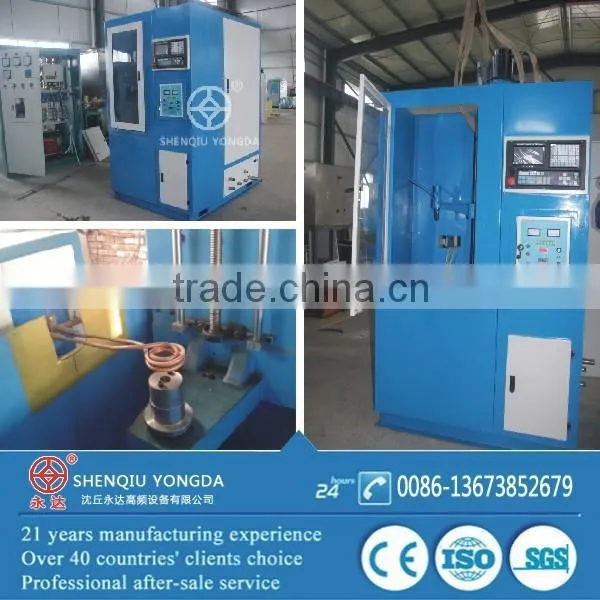

China made high quality IGBT full automatic cnc quenching for shaft
Usage of cnc quenching for shaft
It is mainly used for shafts, gears hardening, high automatic degree,high precision.
Features of cnc quenching for shaft
1, the machine uses PC-industrial digital control systems, high performance, debug and easy to use, to the greatest degree of quenching the workpiece to meet the complex needs.
2, the machine can achieve quenching mode: continuous scan quenching, and quenching, sub-continuous scanning quenching (by the level of sub-setting, no limit switch, the same below), while sub-quenching.
3, this machine is suitable for the typical artifacts (in the appropriate size range) axis: a variety of shaft, step shaft, gear shaft, cam shaft, axle, the cylindrical disk-type parts, end so on.
4, the machine control system for reserve electrical heating and cooling water quenching control interface. According to the process of quenching process and the need to control the cooling process.
5, low running costs. Just run the workpiece drive motor 250W, machine power consumption less than one-fifth of machinery and equipment.
6, the fuselage structure by profile, low cost, light weight, economical and practical.
7, easy maintenance, low failure rate, no leakage.
8 high degree of automation and production efficiency.
9, rail uses linear bearings, high precision, small friction, long life.
10, with heavy equipment through the sprocket, chain balance the weight.
Parameters of cnc quenching for shaft
Specifications and model |
YD50-35 |
YD80-50 |
YD100-60 |
YD120-80 |
YD150-100 |
Max. hardening diameter |
350 |
500 |
600 |
800 |
1000 |
Max. hardening length |
500 |
500 |
1000 |
1200 |
1500 |
Max. work piece weight |
50 |
100 |
150 |
300 |
400 |
Work piece move range |
1-50 |
1-50 |
1-50 |
1-50 |
1-50 |
Cooling method |
Immersion liquid |
Immersion liquid |
Immersion liquid |
Immersion liquid |
Immersion liquid |
Processing work pieces |
Gears, shafts type, disc type etc. |
||||
Note:The hardening machine tool can be customized,such as hardening lenth 2000,2500mm etc.

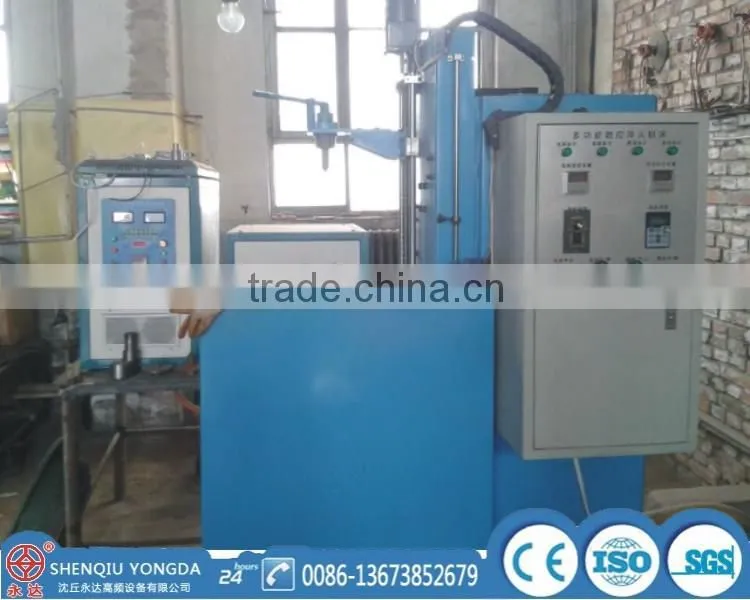

CNC quenching for shaft working onsite
Parameters table of induction quenching machine
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-40 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
WZP-300 |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
WZP-400 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-500 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |
Features of shaft quenching induction machine
1. IGBT modules, save energy than traditional high frequency tube heater.
2. Protect full.Over current.over voltage,lack of phase,water shortage, etc. more than ten alarm lamps.
3. Heating fast.Within1 second ,temperature rise up to 1200 degree,even higher.
4. No need contacting work pieces, safety, safe and reliable.
5. Environmental friendly,no pollution, good for worker's health
6. Easy to change induction coils, for heating different shape of steel billet
7. Easy to install and operate.
8. Low maintenance cost
We can design and produce different quenching machine tool, such as color as you like, horizontal or vertical, according to your work pieces.
IGBT full automatic cnc quenching for shaft, Shenqiu Yongda has many years experience, welcome to inquiry us !
